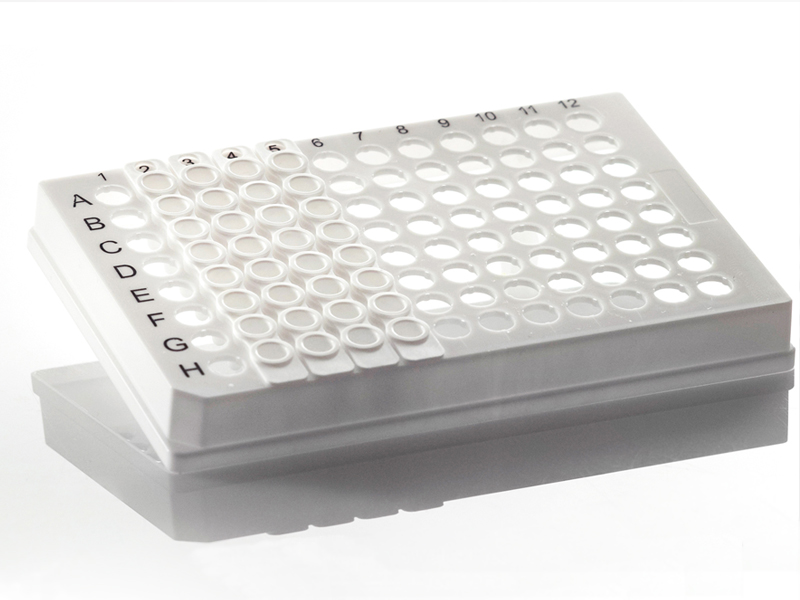

96 Well Skirted PCR Plate for Removable 8 Well Tube Strips

96 well skirted plates designed for universal use, consisting of re-usable frames and Removable 8 Well PCR Tube Strips. Strips insert into frames to form complete or part plates, or individual strips with an easy-to-handle frame.

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Tube Strips (Removable 8 Well PCR Tube Strips)
  • The Removable 8 Well PCR Tube Strips have ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • The Removable 8 Well PCR Tube Strips have a low profile 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options
  • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
Frame
  • Rigid polycarbonate frames, which reduce thermal expansion and sample evaporation during PCR, leading to improved consistency in PCR results
  • Alphanumeric grid reference to aid well and sample identification
  • As the strip are interchangeable with the frames, the frames themselves are re-usable; simply purchase more strips to use
  • The frames can be purchased separately, or pre-loaded with Removable 8 Well PCR Tube Strips
Use
  • Compatible with standard multichannel pipettes
Options
  • Available as a 96 Well Skirted Frame for universal use
  • Also available as a Roche Style plate for use with the Roche LightCycler® 480
  • Frames can be purchased on their own or pre-loaded with Removable 8 Well PCR Tube Strips
  • The Removable 8 Well PCR Tube Strips are available with clear wells
  • The Removable 8 Well PCR Tube Strips also available with white wells, giving the highest sensitivity and consistency for fluorescent detection during qPCR
  • Available barcoded upon request; learn more about our barcoding options
Specifications
96 Well Skirted PCR Plate for Removable 8 Well Tube Strips
Plate length127.76 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height16.10 ± 0.25mm
Well depth15.10 ± 0.10mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Distance to center of A1 from top edge11.24 ± 0.25mm
Distance to center of A1 from left edge14.38 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Robocycler Gradient
  • qPCR Cyclers (96 well block): AriaMx
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
BIO-RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX 96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
GE HEALTHCARE/AMERSHAM
  • Sequencers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
    PEQLAB/VWR
    • Thermal Cyclers (96 well block): peqSTAR 96X
      SENSOQUEST
      • Thermal Cyclers (96 well block): Labcycler
        TECHNE
        • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
        • qPCR Cyclers (96 well block): Quantica

        For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

        Ordering Information

        Part Numbers

        Use these part numbers to request a quote, a demo, or to contact an expert:

        96 Well Skirted PCR Plate for Removable 8 Well Tube Strips
        Rigid polycarbonate frame, white, cut corner H1; for universal use
        4ti-0757-Fempty frame; 10 frames
        4ti-0753/7574ti-0757-F pre-loaded with Removable 8 Well PCR Tube Strips, white; 50 plates
        4ti-0753/C/7574ti-0757-F pre-loaded with Removable 8 Well PCR Tube Strips, clear; 50 plates
        Removable 8 Well PCR Tube Strips
        Low profile, 0.1ml polypropylene wells, working volume: <100µl, total well capacity: 200µl
        4ti-0753white; 120 tube strips
        4ti-0753/Cclear; 120 tube strips
