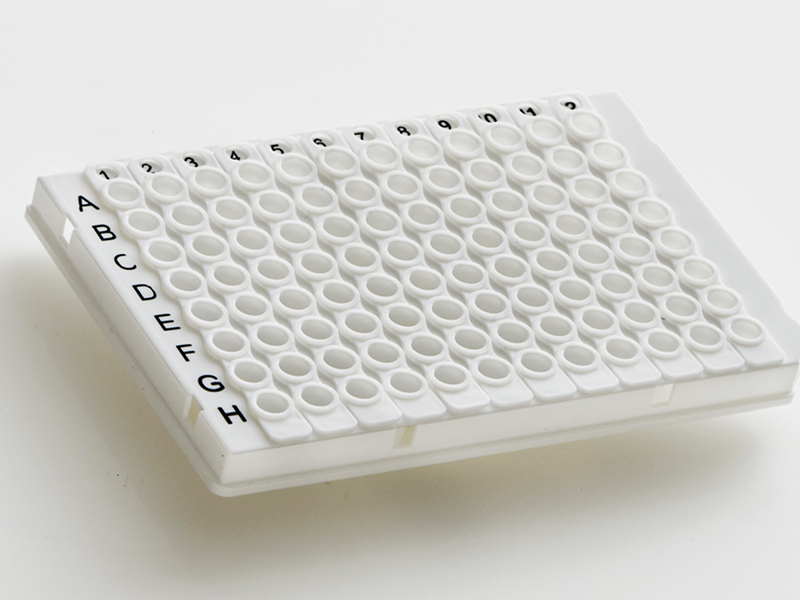

96 Well Semi-Skirted PCR Plate for Removable 8 Well Tube Strips, Roche Style

96 well semi-skirted plates designed for use on Roche LightCycler® 480, consisting of re-usable frames and Removable 8 Well PCR Tube Strips. Strips insert into frames to form complete or part plates, or individual strips with an easy-to-handle frame.

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

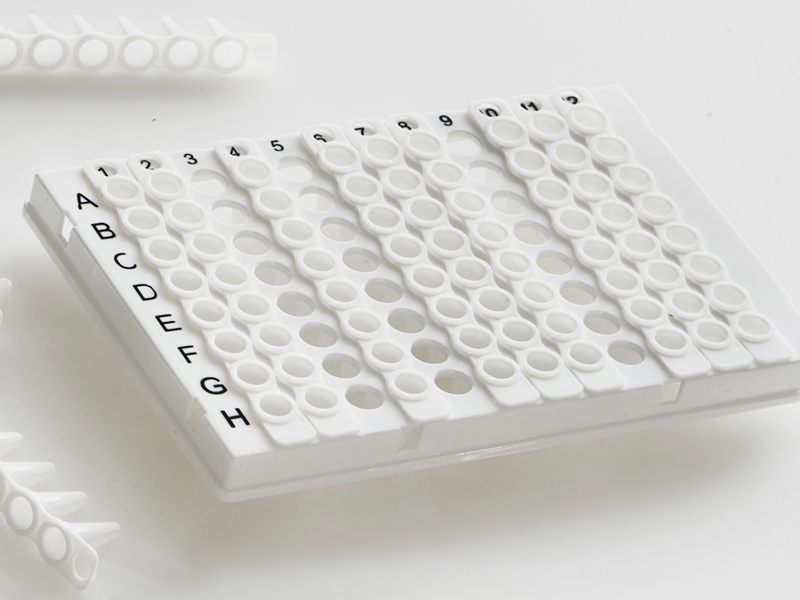

Tube Strips (Removable 8 Well PCR Tube Strips)
  • The Removable 8 Well PCR Tube Strips have ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • The Removable 8 Well PCR Tube Strips have a low profile 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options
  • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
Frame
  • Rigid polycarbonate frames, which reduce thermal expansion and sample evaporation during PCR, leading to improved consistency in PCR results
  • Alphanumeric grid reference to aid well and sample identification
  • As the strip are interchangeable with the frames, the frames themselves are re-usable; simply purchase more strips to use
  • The frames can be purchased separately, or pre-loaded with Removable 8 Well PCR Tube Strips
Use
  • Compatible with standard multichannel pipettes
Options
  • Available as a 96 Well Semi-Skirted Frame, Roche Style for use with the Roche LightCycler® 480
  • Also available as a 96 Well Skirted Frame for universal use
  • Frames can be purchased on their own or pre-loaded with Removable 8 Well PCR Tube Strips
  • The Removable 8 Well PCR Tube Strips are available with clear wells
  • The Removable 8 Well PCR Tube Strips also available with white wells, giving the highest sensitivity and consistency for fluorescent detection during qPCR
  • Available barcoded upon request; learn more about our barcoding options
Specifications
96 Well Semi-Skirted PCR Plate for Removable 8 Well Tube Strips, Roche Style
Plate length127.70 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height15.60 ± 0.25mm
Well depth15.10 ± 0.10mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Distance to center of A1 from top edge11.24 ± 0.25mm
Distance to center of A1 from left edge14.38 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ROCHE
  • qPCR Cyclers (96 well block): LC96 | LC480

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

96 Well Semi-Skirted PCR Plate for Removable 8 Well Tube Strips, Roche Style
Rigid polycarbonate frame, white, cut corner H12; designed for use on Roche LighCycler® 480
4ti-0950W-Fempty frame; 10 frames
4ti-0753/950W4ti-0950W-F pre-loaded with Removable 8 Well PCR Tube Strips, white; 50 plates
Removable 8 Well PCR Tube Strips
Low profile, 0.1 ml polypropylene wells, working volume: <100 µl, total well capacity: 200 µl
4ti-0753white; 120 tube strips
4ti-0753/Cclear; 120 tube strips
