Removable 8 Well PCR Tube Strip

8 well PCR tube strips designed to be used as a standalone product or inserted in any of the frames of PCR Plates for Removable 8 Well Tube Strips for ease of handling. Low profile wells, recommended for reaction volumes <20µl.

  • Made from virgin polypropylene
  • <100µl working volume, 200µl total well capacity
  • Available as clear and white tube strips

Want to request a quote, free samples, or to contact an expert?

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Molded from virgin polypropylene under cleanroom conditions
Tubes
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • Low profile 0.1 ml (100 µl) working volume, with a 0.2 ml (200 µl) total well capacity when used with sealing options
  • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
Use
Options

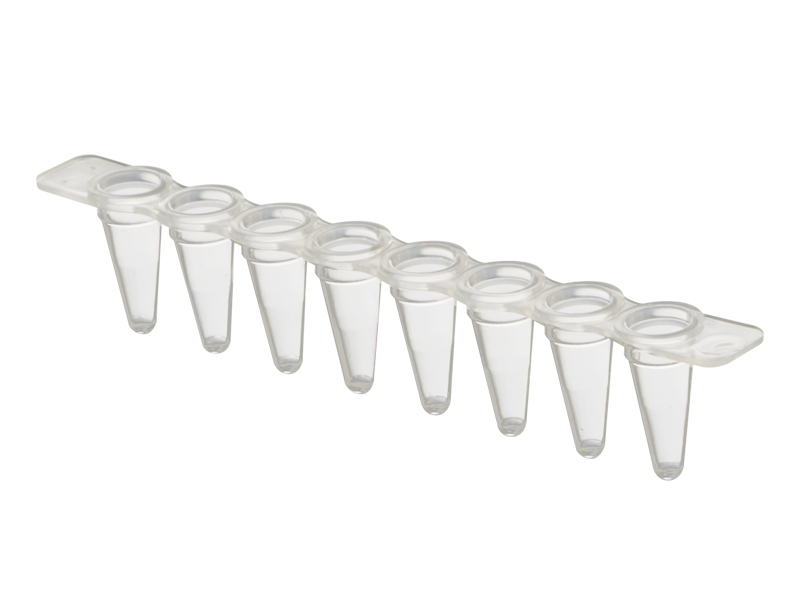

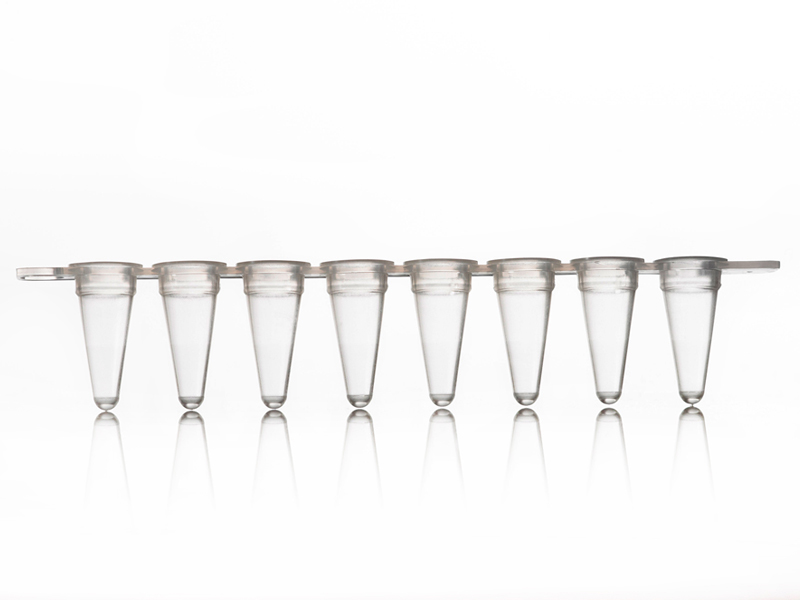

  • 8 Well PCR Tube Strips are available with clear wells

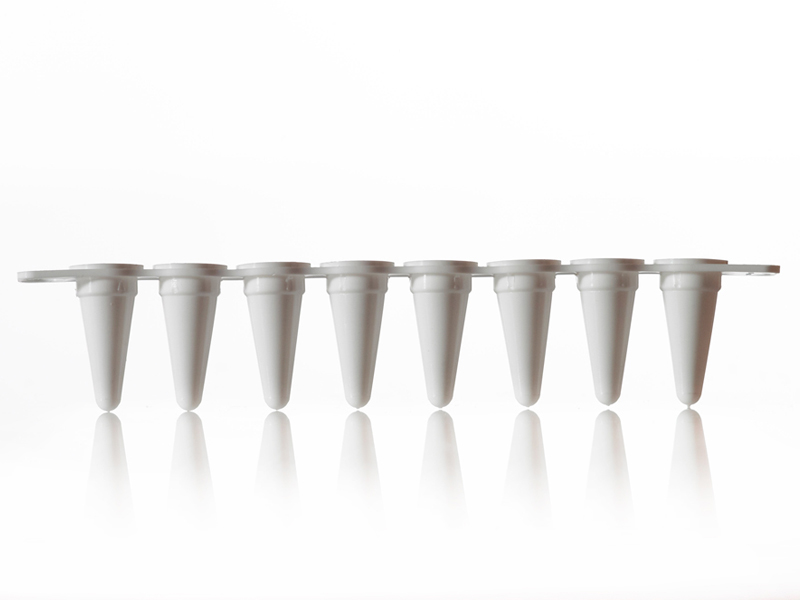

  • Also available with white wells, giving the highest sensitivity and consistency for fluorescent detection during qPCR, as all the fluorescence signal is reflected back to the detector
  • Combi packs available with strips of 8 flat optical caps
  • 8 Well PCR Tube Strips can be ordered separately or pre-loaded on frames of PCR Plates for Removable 8 Well Tube Strips
Specifications
Removable 8 Well PCR Tube Strip
Strip length82.00 ± 0.10mm
Strip width8.20mm
Strip height15.60mm
Well depth14.20mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • qPCR Cyclers (96 well standard block): StepOne
  • qPCR Cyclers (96 well FAST block): StepOne Plus™ | 7500 FAST | 7900 HT FAST | QuantStudio™ 5/6/7/12K | ViiA7™
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Robocycler Gradient
  • qPCR Cyclers (96 well block): AriaMx | Mx3000P™ | Mx3005P™
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (96 well block): Trobot 96 | SpeedCycler2 (SP, SPR)
BIO-RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect | MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (strips only): MiniOpticon
  • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
  • Thermal Cyclers (strips only): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
GE HEALTHCARE/AMERSHAM
  • Sequencers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
PEQLAB/VWR
  • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
  • Thermal Cyclers (96 well block): peqSTAR 96X
ROCHE
  • qPCR Cyclers (96 well block): LC96 | LC480
  • qPCR Cyclers (strips only): Nano
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TECHNE
  • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
  • qPCR Cyclers (96 well block): Quantica


For recommended strip options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

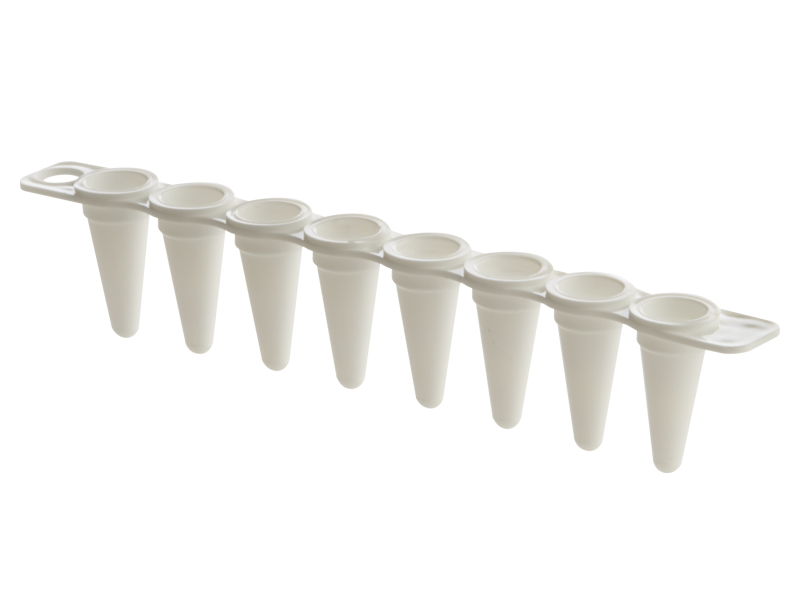

Removable 8 Well PCR Tube Strip
Low profile, 0.1ml polypropylene wells, working volume: <100µl, total well capacity: 200µl; can be used as a standalone product or inserted in any of the frames of PCR Plates for Removable 8 Well Tube Strips available for ease of handling
4ti-0753white; 120 tube strips
4ti-0753/Cclear; 120 tube strips

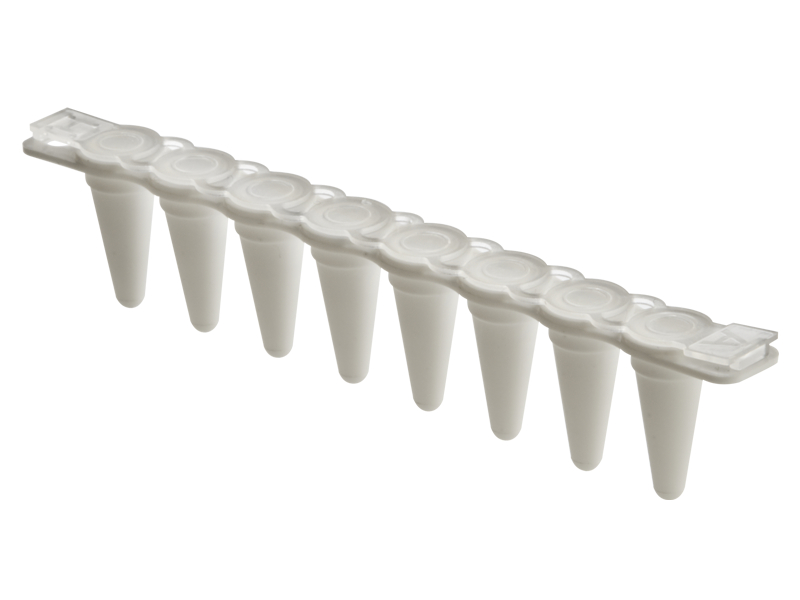

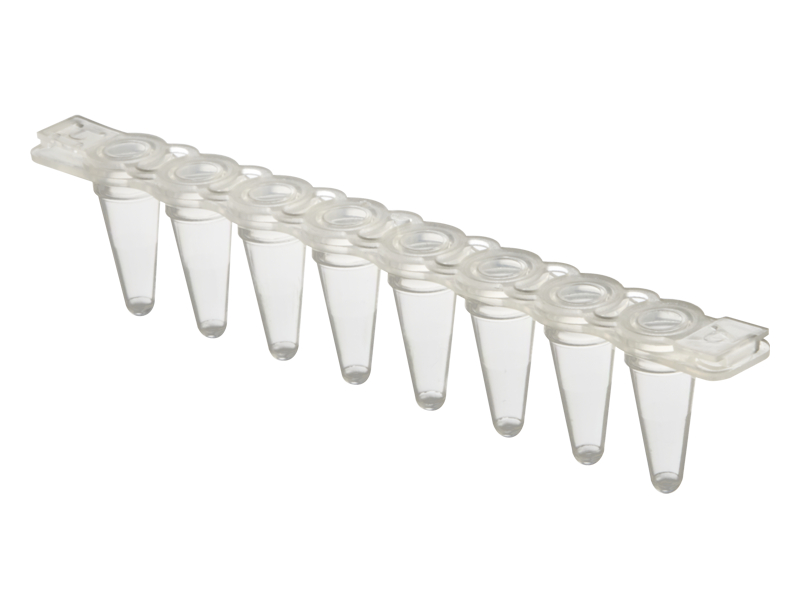

Combi Packs
4ti-07544ti-0753 + strips of 8 flat optical caps; 120 tube strips + 120 cap strips
4ti-0754/C4ti-0753/C + strips of 8 flat optical caps; 120 tube strips + 120 cap strips
Resources

Brochures & Sell Sheets

BROCHURES & SELL SHEETS
PCR Plate-Instrument Compatibility


Technical Drawings

TECHNICAL DRAWINGS
Removable 8 Well PCR Tube Strip Technical Drawing
