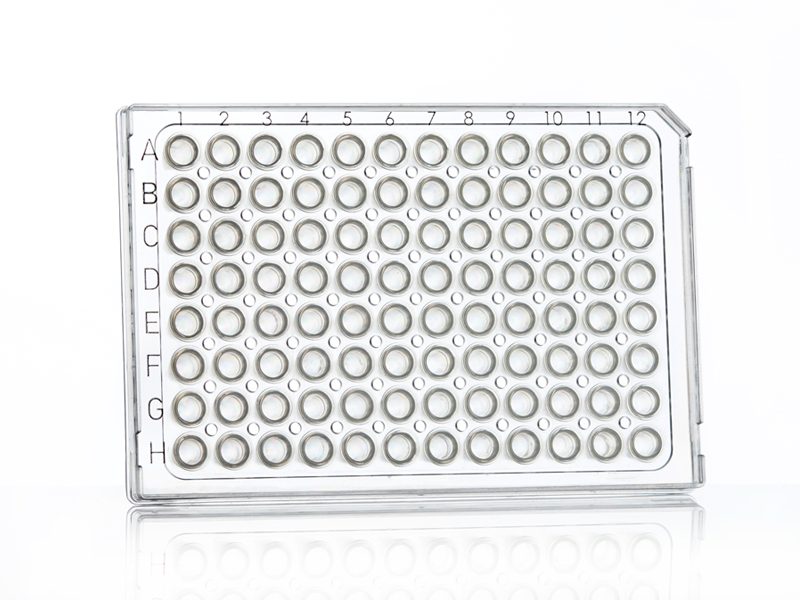

FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style

96 well semi-skirted plates with standard profile wells, designed for use on ABI® thermal cyclers and sequencers (standard blocks) with no adapters necessary. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.

  • PP wells, PC frame; cut corner A12
  • <200µl working volume, 300µl total well capacity
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time quantitative PCR (RT-qPCR) results
  • <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame

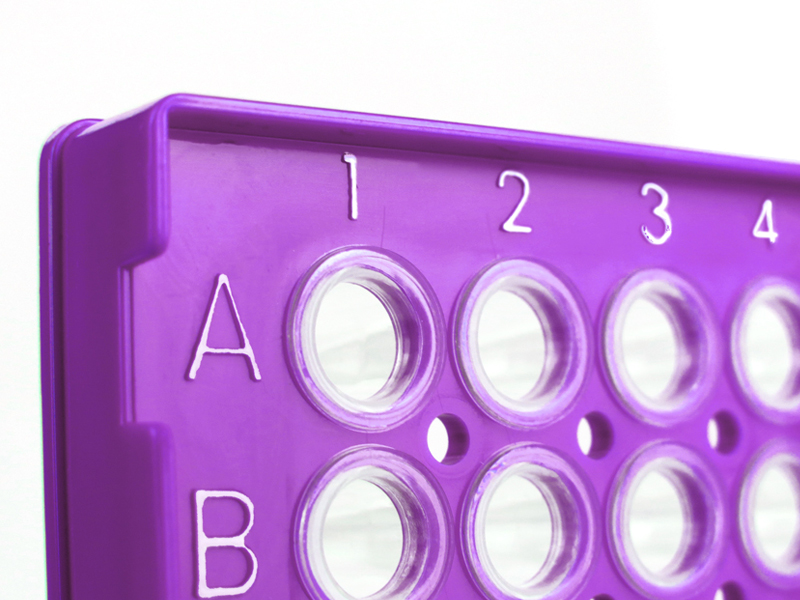

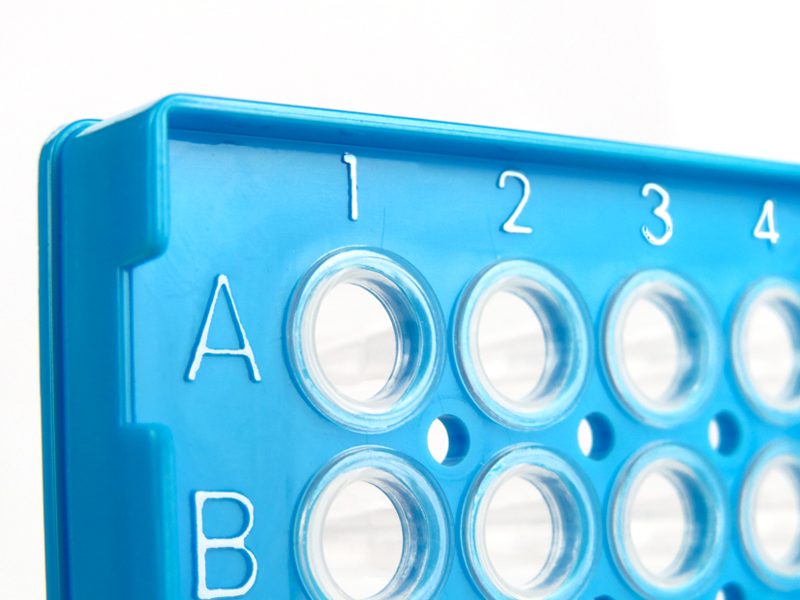

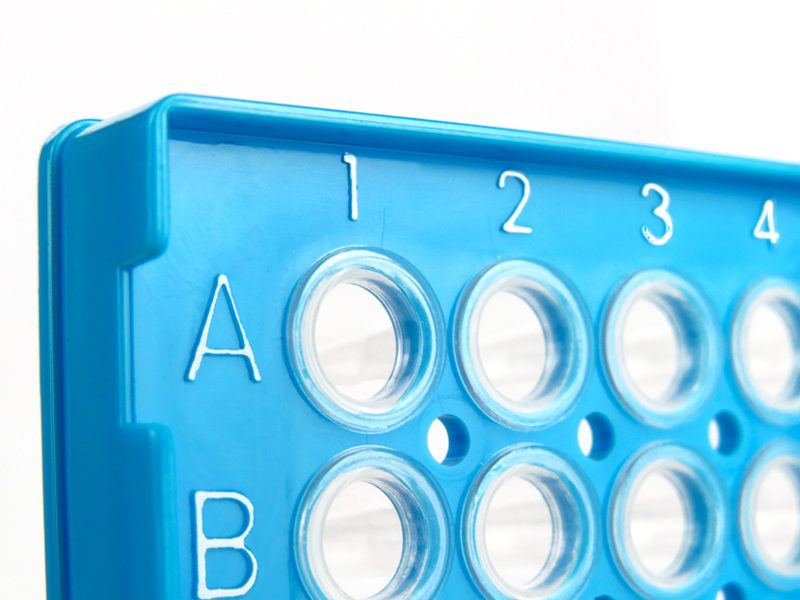

  • Alphanumeric grid reference to aid well and sample identification
Use
  • Ideal for use with ABI® thermal cyclers & sequencers
  • Recommended for low volume PCR
  • Compatible with standard multichannel pipettes
  • Ideal for use with robotic systems
Options

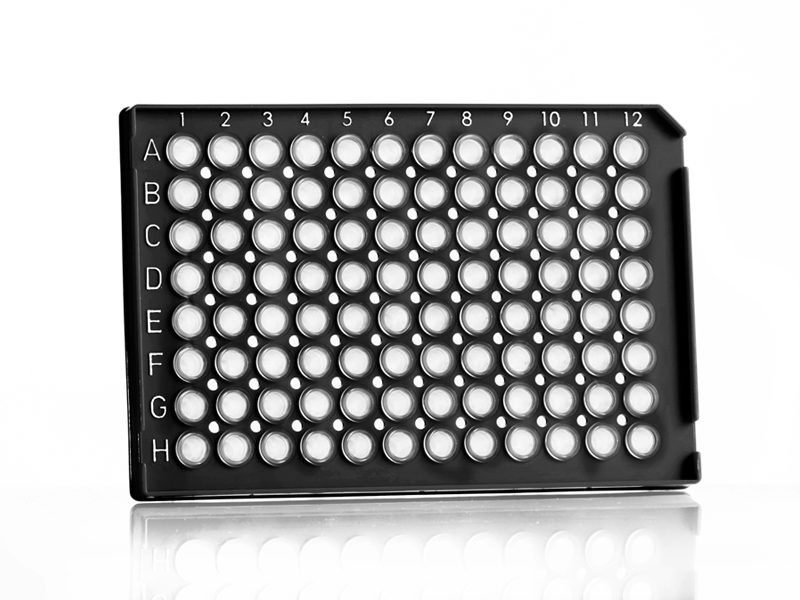

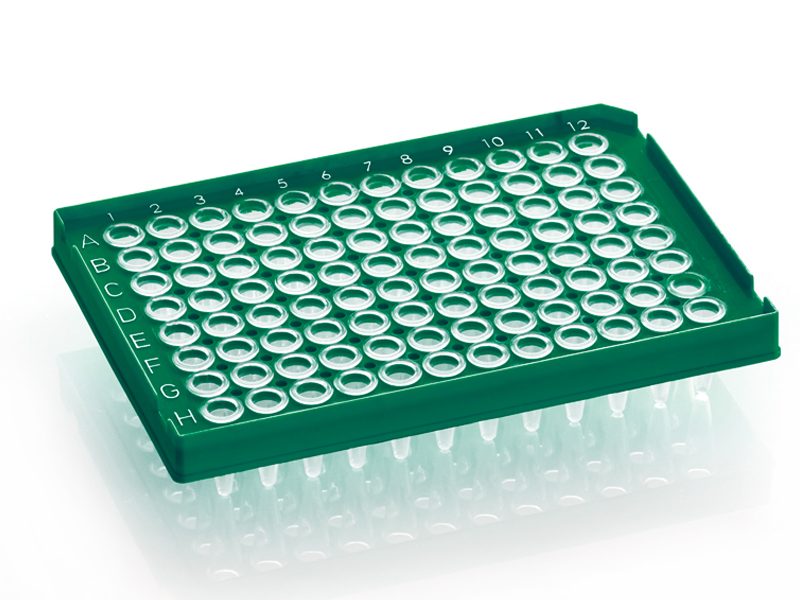

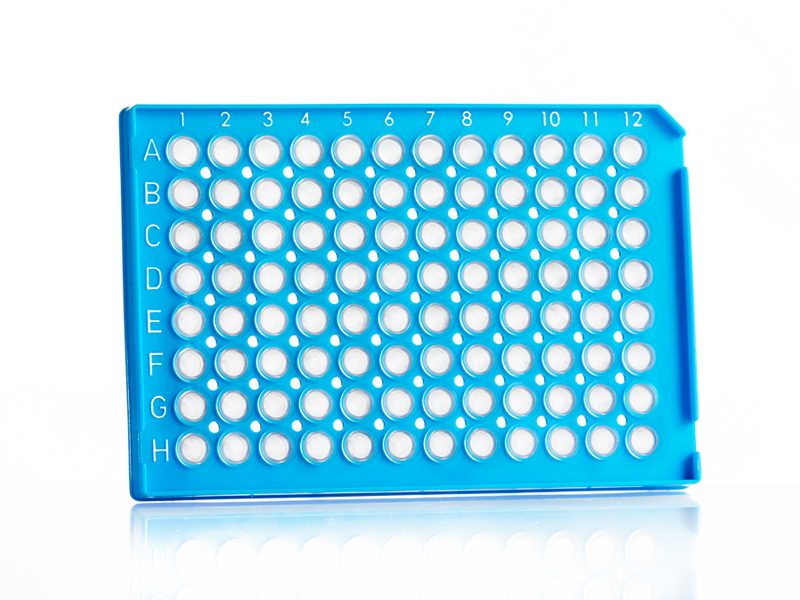

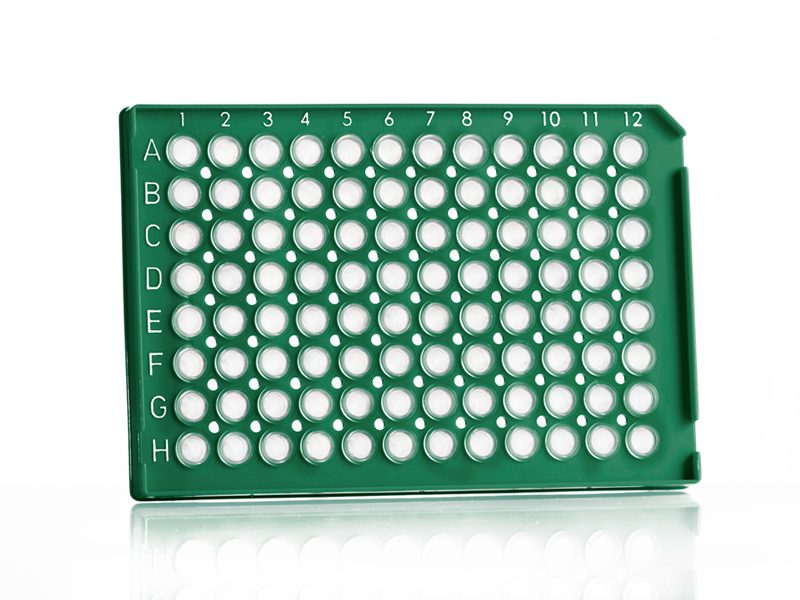

  • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
  • Available barcoded upon request; learn more about our barcoding options
  • Combi packs available (for 4ti-0730/C) with Optically Clear Windowed qPCR Seal (4ti-0565)
Specifications
FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
Plate length124.26 ± 0.25mm
Plate width83.97 ± 0.25mm
Plate height23.20 ± 0.25mm
Well depth20.20 ± 0.10mm
Well diameter5.46 ± 0.10mm
Total well capacity0.3ml (300µl)
Working volume<0.2ml (200µl)
Distance to center of A1 from top edge10.495 ± 0.25mm
Distance to center of A1 from left edge12.63 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well standard block): Verity | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
  • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
  • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
  • qPCR Cyclers (96 well block): Mx4000™
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

FrameStar 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
Standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI® instruments

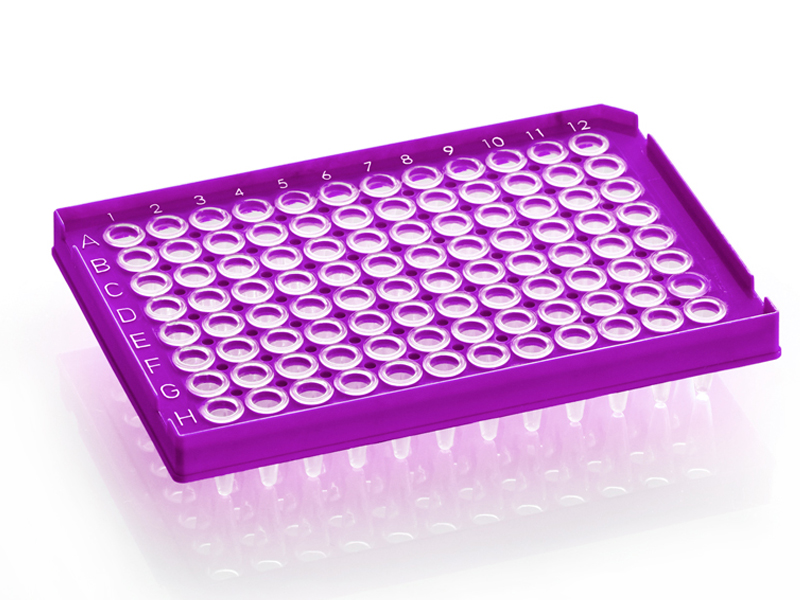

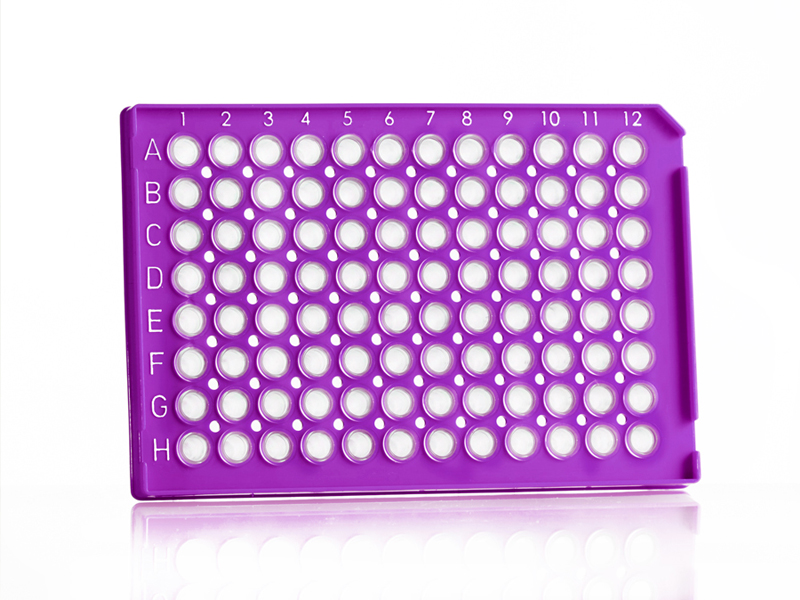

4ti-0730clear wells, purple frame; 50 plates
4ti-0730/Bclear wells, blue frame; 50 plates

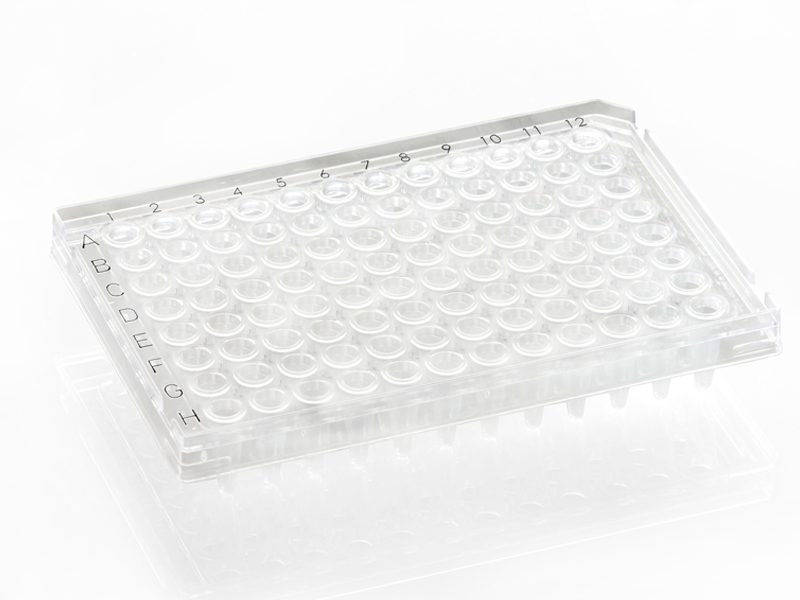

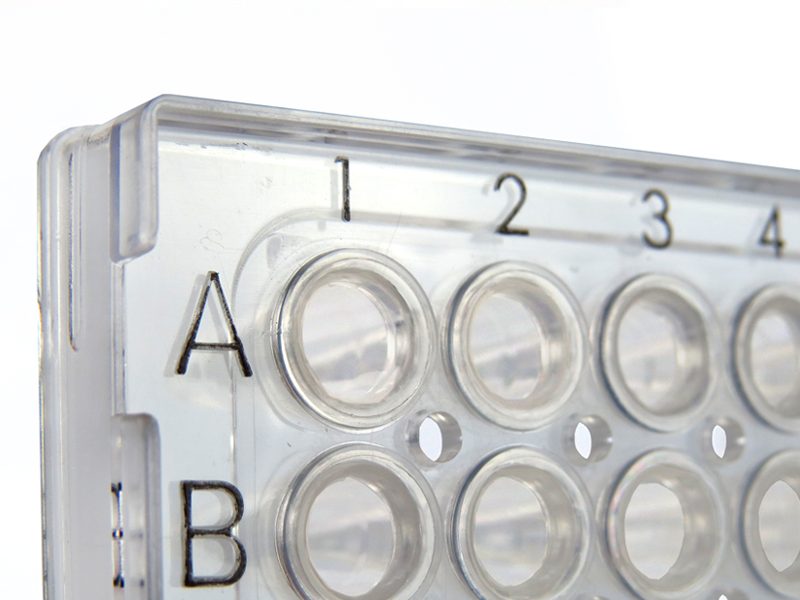

4ti-0730/Cclear wells, clear frame; 50 plates
4ti-0730/C/10Pclear wells, clear frame; 10 plates
4ti-0730/Gclear wells, green frame; 50 plates

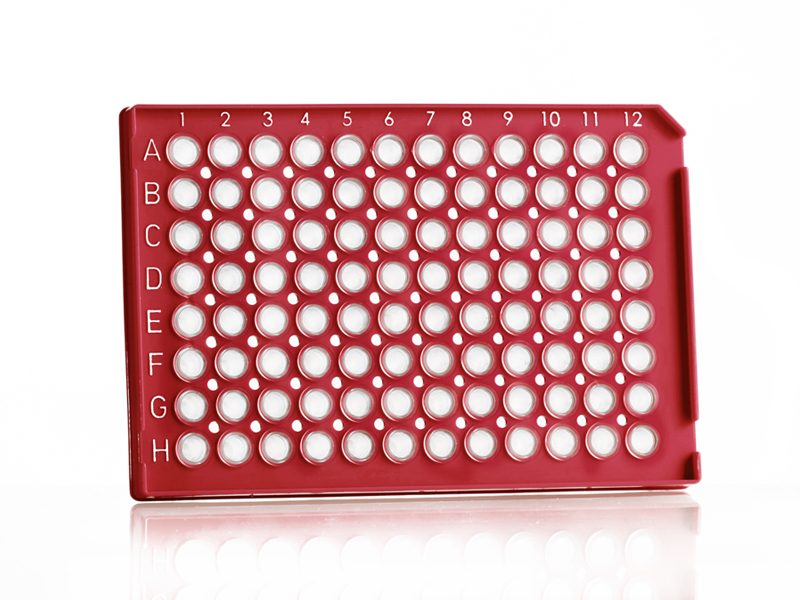

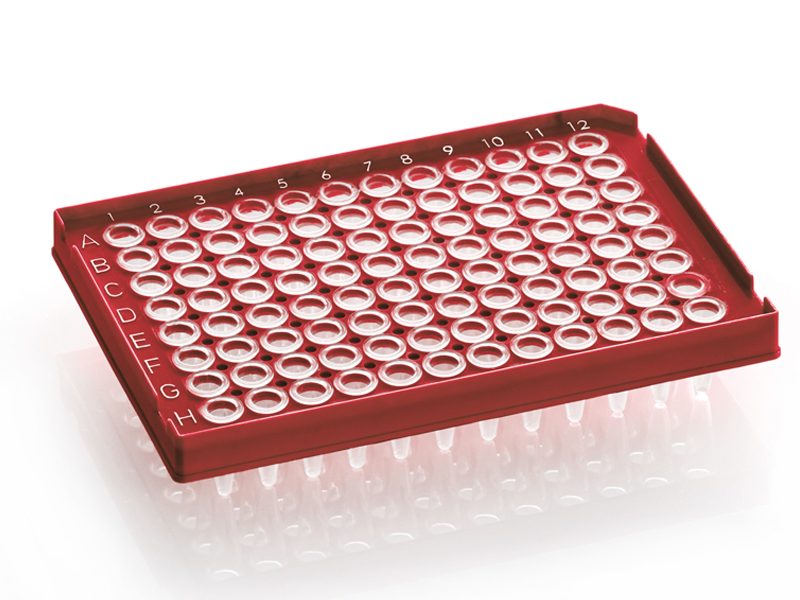

4ti-0730/Rclear wells, red frame; 50 plates

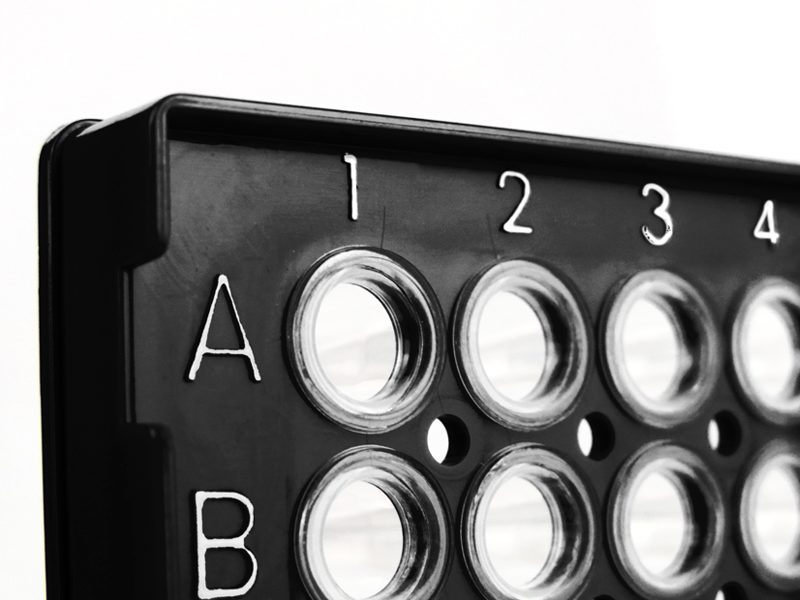

4ti-0730/Xclear wells, black frame; 50 plates
4ti-OX730C/SBC4ti-0730/C for forensic use, ethylene oxide treated, single barcoded; 20 plates
Combi Packs
4ti-0730/C/05654ti-0730/C + Optically Clear Windowed qPCR Seal (4ti-0565); 50 plates + 50 seals
