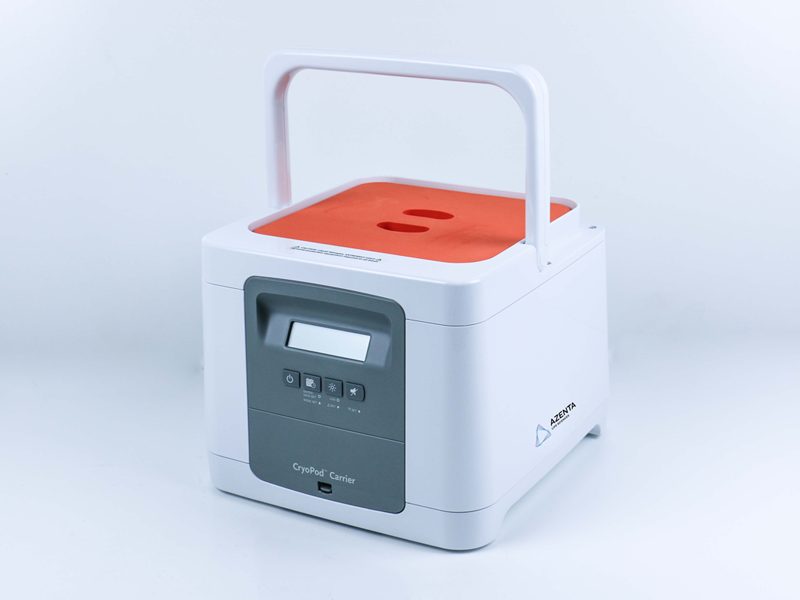

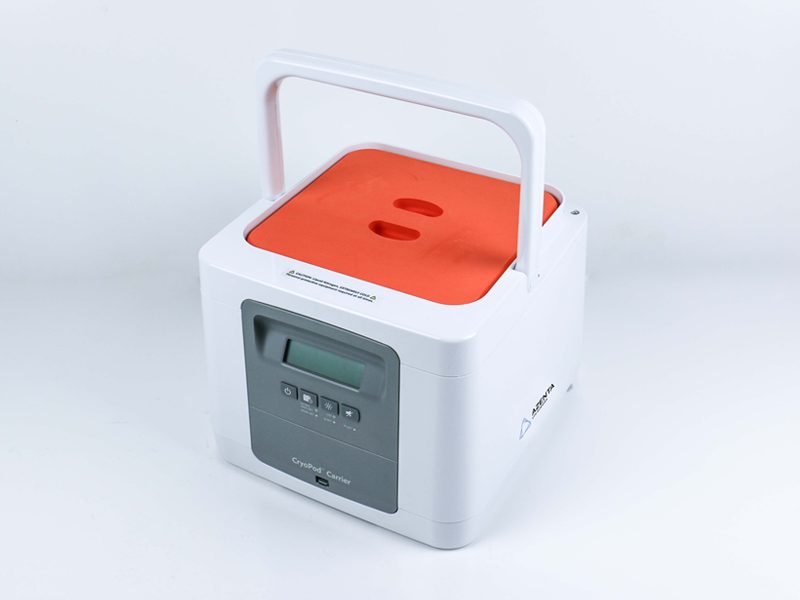

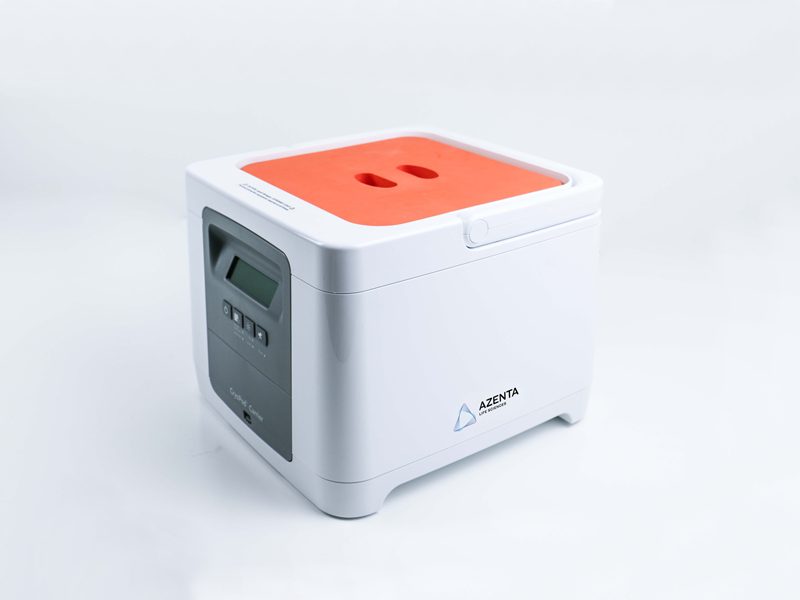

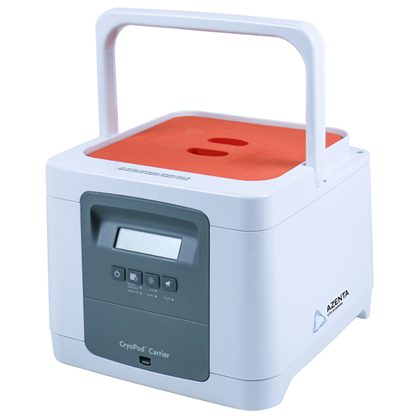

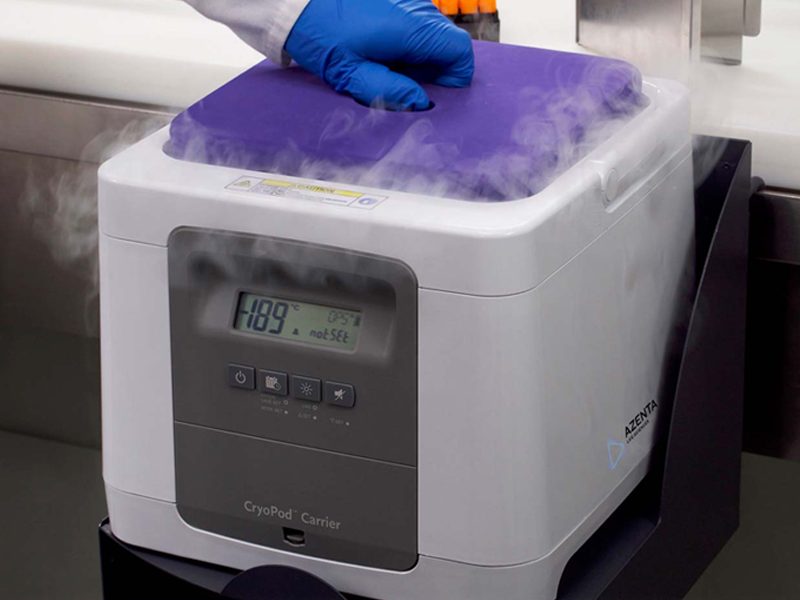

CryoPod® Carrier

The LN2 vapor-based CryoPod Carrier provides a safe, portable, and trackable solution for hand carrying temperature-sensitive biological materials.

  • Holds samples at ≤-150°C for over 3 hours
  • Displays and logs temperature, date, time
  • Audible and visual temperature alarms
  • Compact, lightweight, portable

Want to request a quote, a demo, or to contact an expert?

Place a Request
Register Your CryoPod
Product Details

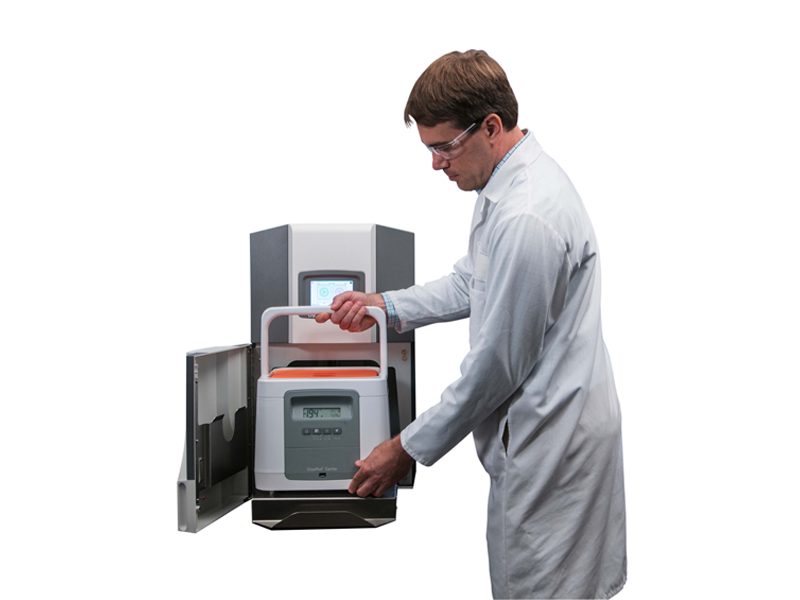

CryoPod Carrier provides a safe, reliable and portable < -150°C cryogenic environment for the handling and transport of biological specimens for over 3 hours. The instrument displays and logs temperature, date and time – all events stored in memory and downloadable to a PC – and features audible and visual alarms, and integrates into an optional automated filling station for hands-free replenishing of the LN2 charge in less than 15 minutes.

It can be carried by hand and is ideal for sample transport or handling of temperature-sensitive biological materials in or around a lab or campus. The CryoPod carrier extends the cryogenic cold chain from freezer or dry shipper to bench and back again. No longer must researchers and clinicians rely on cumbersome, improvised, or potentially unsafe methods to transport or work with their cryogenic samples.

Explore more cryogenic sample management solutions that can integrate with your workflow and increase efficiency.

Key Features

Sample Cold Chain Integrity & Performance
  • Over 3 hours of ≤-150°C
  • Temperature display with audible and visual alarms
  • Temperature logging and retrieval
  • No direct sample contact with LN2

Portability & Safe Operation
  • Allows safe and quick transportation of cryogenic samples
  • Hands-free auto-fill option
  • Compact footprint; only ~13.2lbs (6kg)
  • Built-in handle and bottom finger grips
IQ/OQ/PQ Services
  • Validate your CryoPod Carrier
  • Inquire about options for validation by Azenta or a third party
Winner of Two Innovation Awards
  • New Product of the Year Award at ISBER 2015
  • New Innovative Product or Technology Award at ESBB 2015
Specifications
CryoPod Carrier (243354-001)CryoPod Carrier for Cassettes (284574)
Hold timeone 2in cryobox or two SBS racks or up to five (5) 50ml cassettesone 2in cryobox or two SBS racks or up to five (5) 250ml cassettes
Chargerequires < 3l liquid nitrogen (LN2)requires < 3l liquid nitrogen (LN2)
Alarm2 settings with audible and visual signals2 settings with audible and visual signals

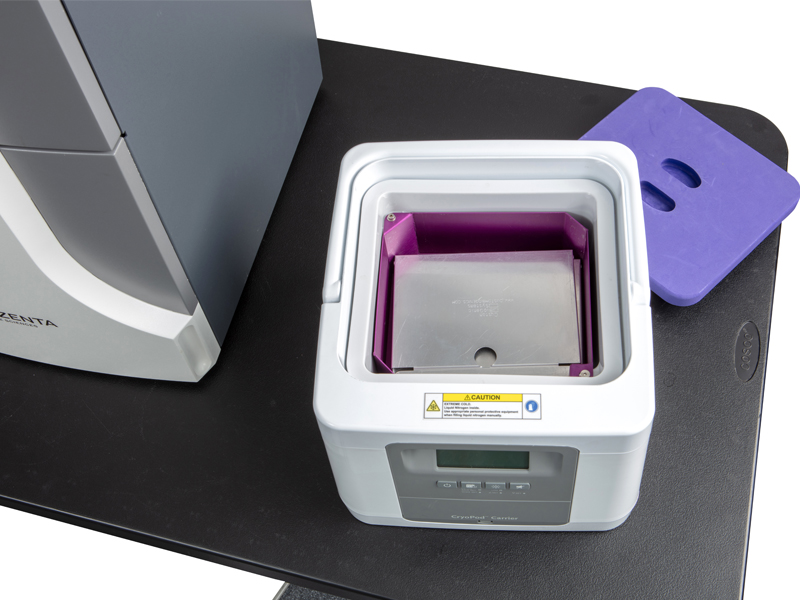

Lidmagnetized foam lid for safer transport and insulationmagnetized foam lid for safer transport and insulation
Power3 AA alkaline batteries (included)3 AA alkaline batteries (included)
Temperature audit traildownloadable temperature log data via USB port and CryoPod Data Log Softwaredownloadable temperature log data via USB port and CryoPod Data Log Software
Weight5kg (11lbs) without LN2
6.8kg (15lbs) fully charged with 3L LN2 – no samples		6kg (13.2lbs) without LN2
7.8kg (17.2lbs) fully charged with 3L LN2 – no samples
Outer dimensions (L x W x H)34.0 x 32.0 x 26.0cm (13.4 x 12.6 x 10.2in)34.0 x 32.0 x 26.0cm (13.4 x 12.6 x 10.2in)
Internal dimensions with sample basket (L x W x H)18.5 x 19.8 x 7.9cm (7.3 x 7.8 x 3.1in)19 x 20.6 x 7.9cm (7.5 x 8.1 x 3.1in)
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

CryoPod Carrier
243354-001suitable for cryoboxes, includes orange lid and manual fill kit; 1 carrier

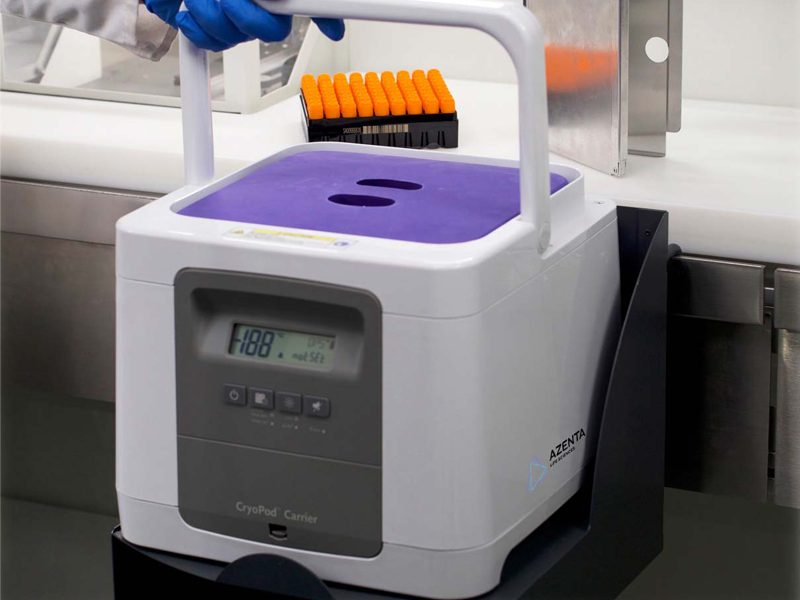

284574suitable for cassettes, includes purple lid and manual fill kit; 1 carrier

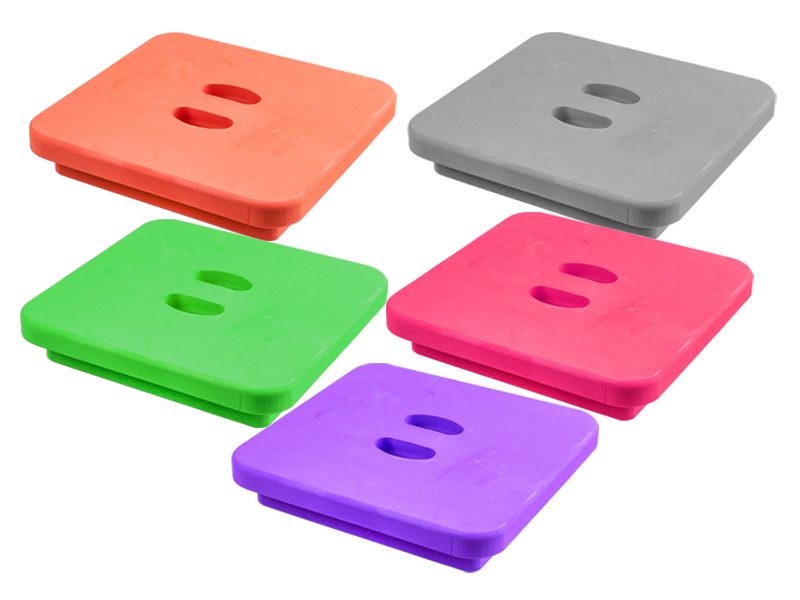

Lids & Accessories
252888-001orange; 1 lid
252888-002green; 1 lid
252888-003grey; 1 lid
252888-004pink; 1 lid
252888-005purple; 1 lid

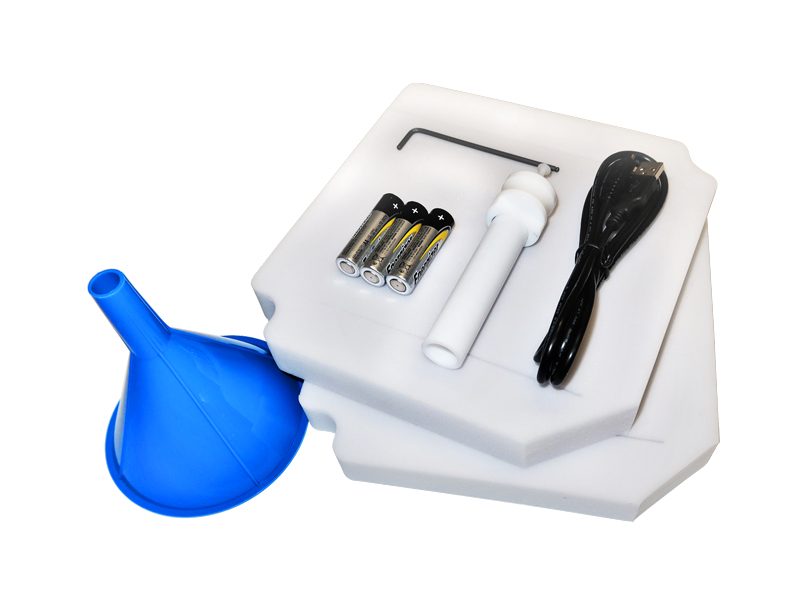

252885CryoPod Carrier for Cryoboxes manual fill kit (compatible with 243354-001); 1 kit
321706CryoPod Carrier for Cassettes manual fill kit (compatible with 284574); 1 kit

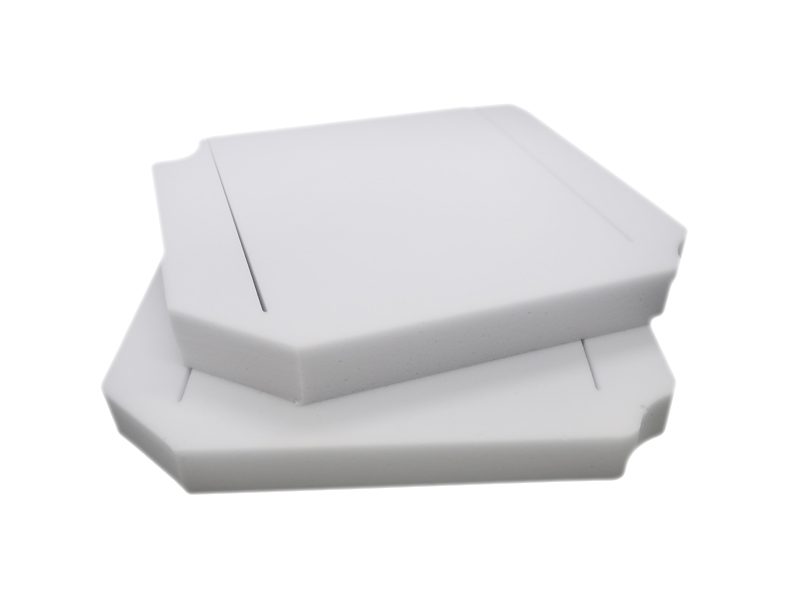

252886CryoPod LN2 Absorbent Pads, 4pc, 2/pk

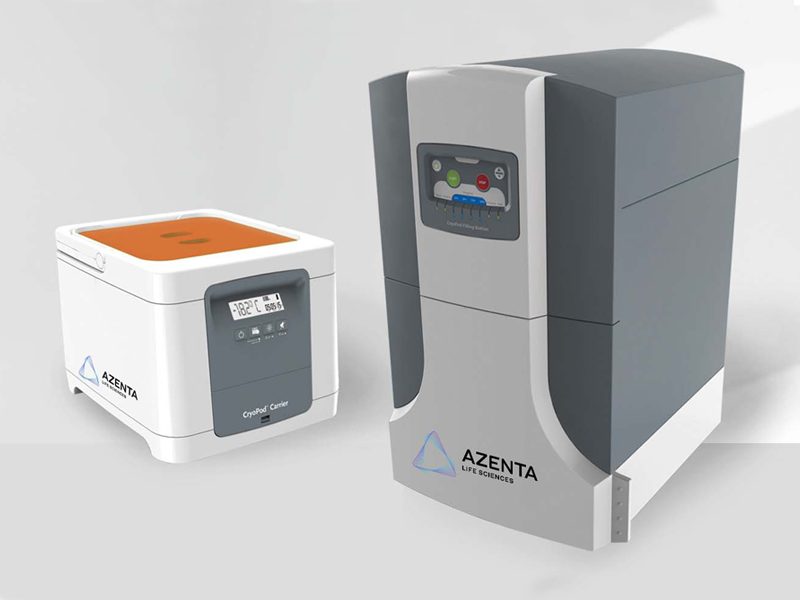

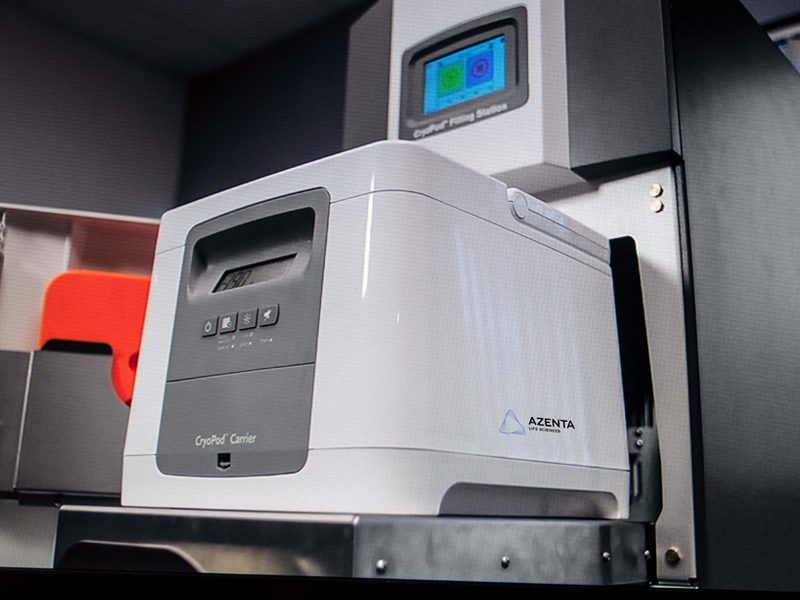

CryoPod LN2 Filling Station
246000-001CryoPod LN2 Filling Station
