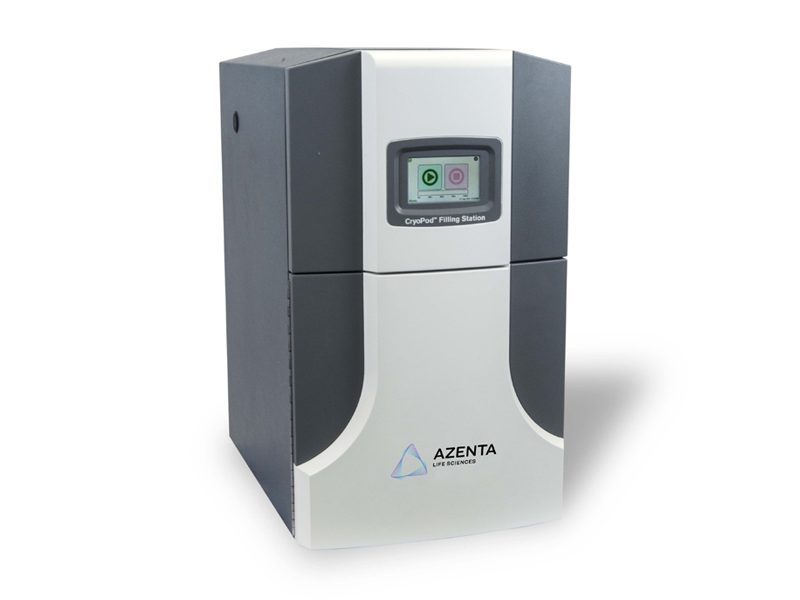

CryoPod® LN2 Filling Station

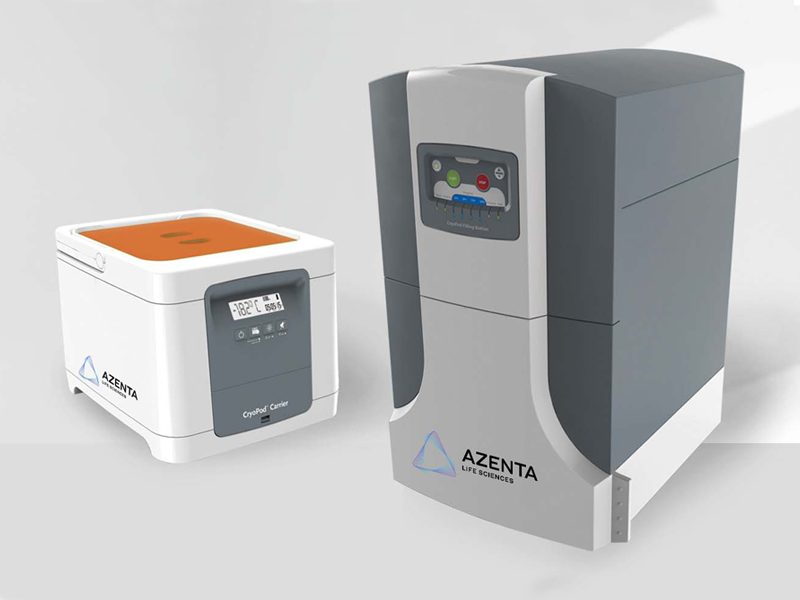

The CryoPod Carrier Filling Station enables the fast and simple replenishing of the CryoPod’s LN2 supply in a safe, precise, and hands-free manner.

  • Single-button, hands-free operation
  • Can connect to existing LN2 supply lines
  • Recharges the CryoPod in about 10 minutes

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

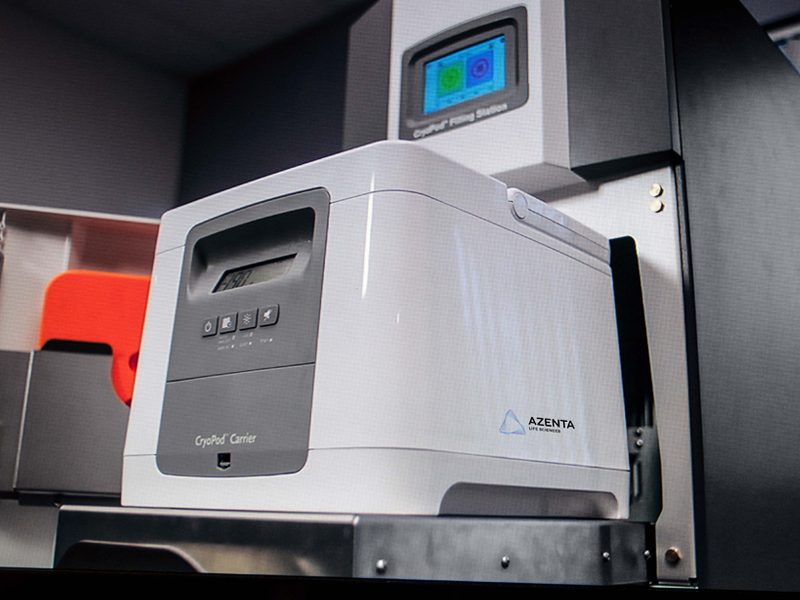

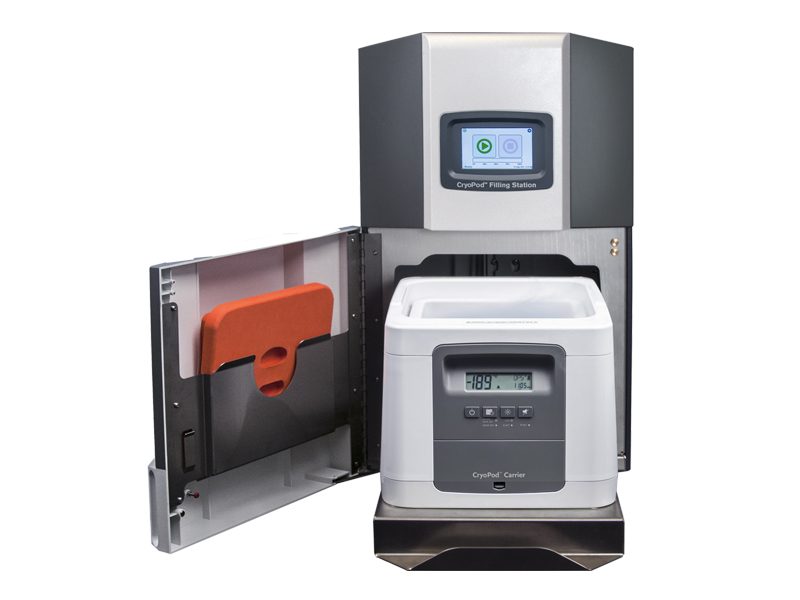

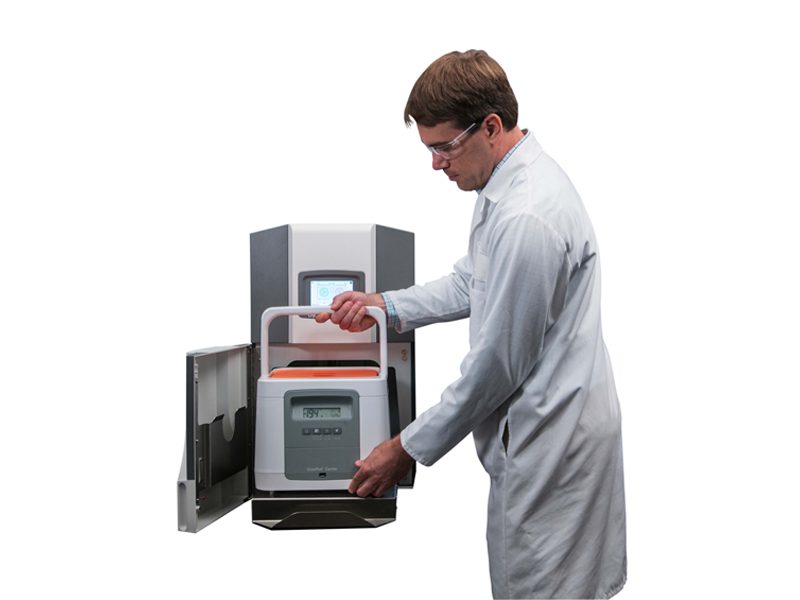

The filling station recharges the CryoPod within 10 minutes and will keep the CryoPod charged for on-demand, immediate use. The user simply loads the CryoPod, shuts the door, and presses “start”. The user is removed from any LN2 exposure or contact with dangerously cold surfaces.

A CryoPod can even be recharged before it warms up, as the filling station monitors LN2 levels throughout the charging process to ensure a precise fill. Completely remove yourself from the risks associated with manual LN2 handling and use the automatic filling station to effortlessly and safely charge the CryoPod carrier.

Key Features

Operation
  • Safe: hands free LN2 Cryopod charging
  • Simple: single button operation, walk away until ready
  • Precise: exact LN2 filling every time, even before empty
  • Fast: charges the carrier in 10 minutes or less
  • Versatile: can connect to existing LN2 supply
Specifications
CryoPod LN2 Filling Station
Dimensions (W x D x H)43.18 x 58.42 x 73.66cm
17 x 23 x 29in
LN2 supplyClean dry LN2 supply between 18-28 Psi
Filling Station LN2 transfer hosePN: 262727
Supply voltage100V – 220VAC
Supply frequency50-60 Hz
Current rating2.5 Amp
Input power connectionFilling Station power supply (PN: 258518)
European plug, CEE 7/4 (PN: 0009616)
UK plug (PN: 0008852)
North American plug NEMA 5-15 (PN: 0008851)
Temperature operation18 to 27°C
Relative humidity50% RH non-condensing
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

CryoPod LN2 Filling Station
246000-0011 station
CryoPods
243354-001CryoPod Carrier
284574CryoPod Carrier for Cassettes
