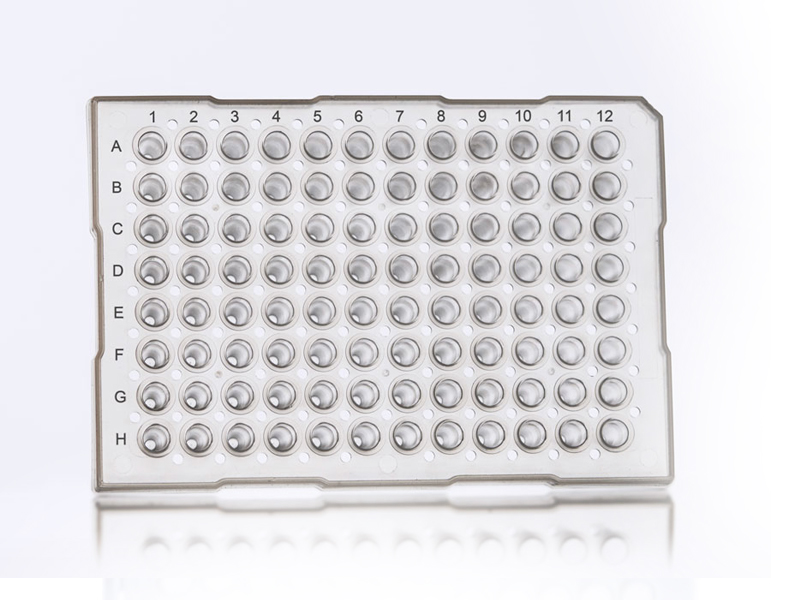

96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style

96 well semi-skirted plates with standard profile wells, designed for use on ABI® thermal cyclers and sequencers (standard blocks) with no adapters and no re-calibration necessary.

  • Virgin polypropylene; cut corner A12
  • <200µl working volume, 300µl total well capacity
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Product Details

Key Features

Quality
  • Subject to a strict QC procedure which includes a visual check and leak testing of every tube
  • Molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time qPCR results
  • Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options
  • Maximum thermal conductivity for efficient heat transfer and precise thermal cycling
  • Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation
Frame
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Designed for and compatible with ABI thermal cyclers and Real Time PCR instruments
  • Compatible with standard multichannel pipettes
Options
  • Clear version has super clear wells for maximum sample visibility
  • Also available with frosted wells for increased qPCR signal intensities and improved detection sensitivity
  • Available barcoded upon request; learn more about our barcoding options
  • Available as a FrameStar 2-component PCR plate with the same dimensions, but with the added benefits of a polycarbonate frame that eliminates plate distortion and warping during the PCR process, leading to less evaporation and sample loss
Specifications
96 Well Semi-Skirted PCR Plate With Upstand, ABI Style
Plate length126.00 ± 0.25mm
Plate width86.00 ± 0.25mm
Plate height22.10 ± 0.25mm
Well depth20.20 ± 0.10mm
Well diameter5.46 ± 0.10mm
Total well capacity0.3ml (300µl)
Working volume<0.2ml (200µl)
Distance to center of A1 from top edge11.50 ± 0.10mm
Distance to center of A1 from left edge13.50 ± 0.10mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC

  • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
  • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
  • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

96 Well Semi-Skirted PCR Plate With Upstand, ABI Style
Standard profile, 0.2ml wells, polypropylene, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI thermal cyclers
4ti-0735clear; 50 plates
4ti-0736frosted; 50 plates
