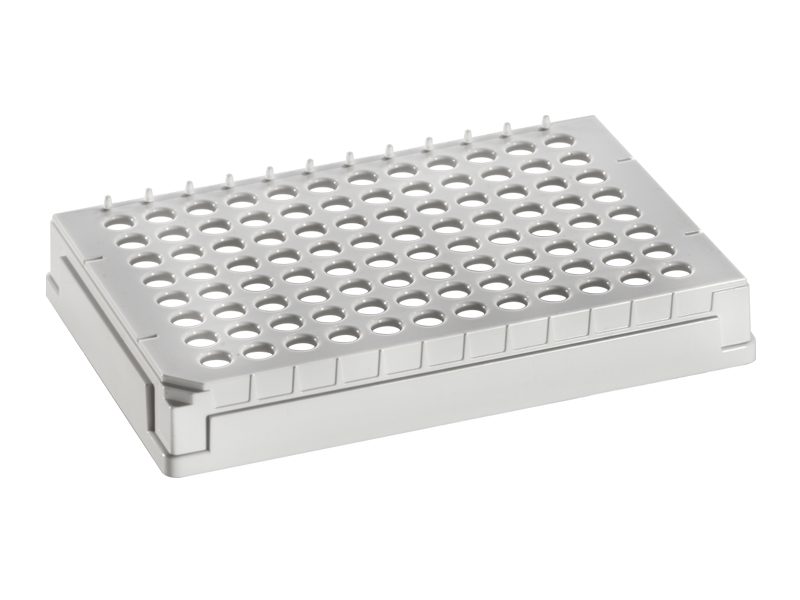

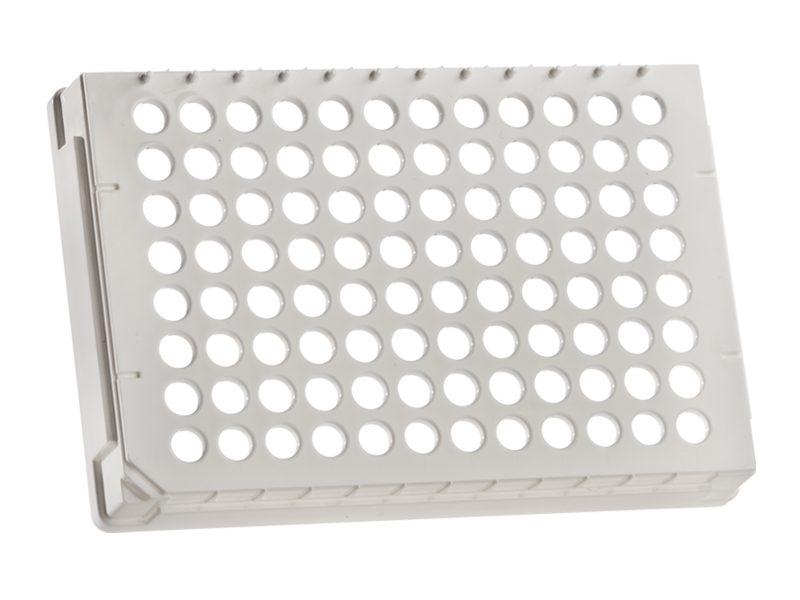

8 Well PCR Tube Strip Adapter

A 96 format frame that fits 8 Well PCR Tube Strips with PC Frame perfectly to allow for easy handling and use with automation.

  • Cost and space saving design
  • White polycarbonate
  • Interference fit with PCR Strips with PC Frame
  • Interference fit with purpose made lid

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

8 Well PCR Tube Strips with PC Frame provide a very flexible method for PCR whilst still utilizing 2-component technology for superior sealing. However, they can be fiddly to handle in the lab though and cannot be used with robotics.

The 8 Well PCR Tube Strip Adapter was developed to offer a solution for processing PCR strips in a plate format (high throughput) on robotics but maintain flexibility at the end user site for varying throughputs. Azenta Life Sciences adapters are manufactured in class 7 ISO certified cleanroom, and all lids are certified free of DNase, RNase, human DNA, bacterial and eukaryotic cells, dust and endotoxins/pyrogens.

Key Features

Designed for Easy Handling of 8 Well PCR Tube Strip with PC Frame

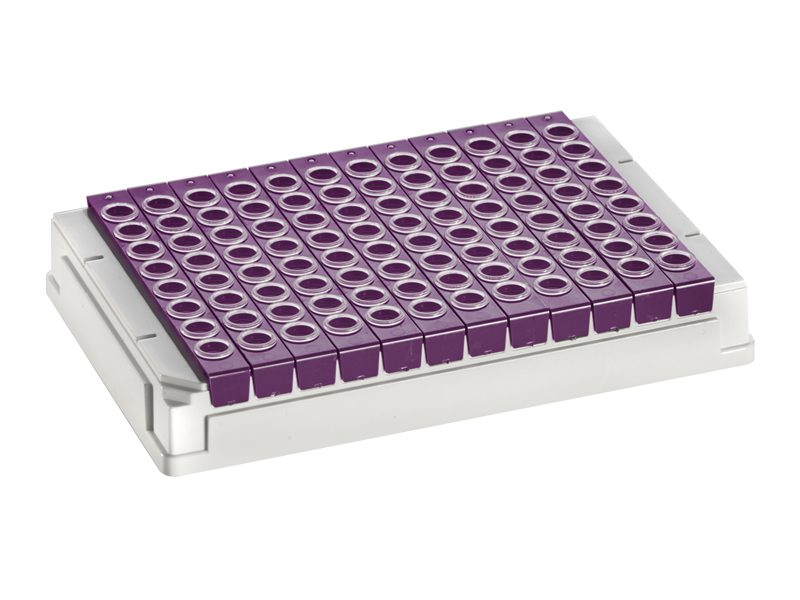

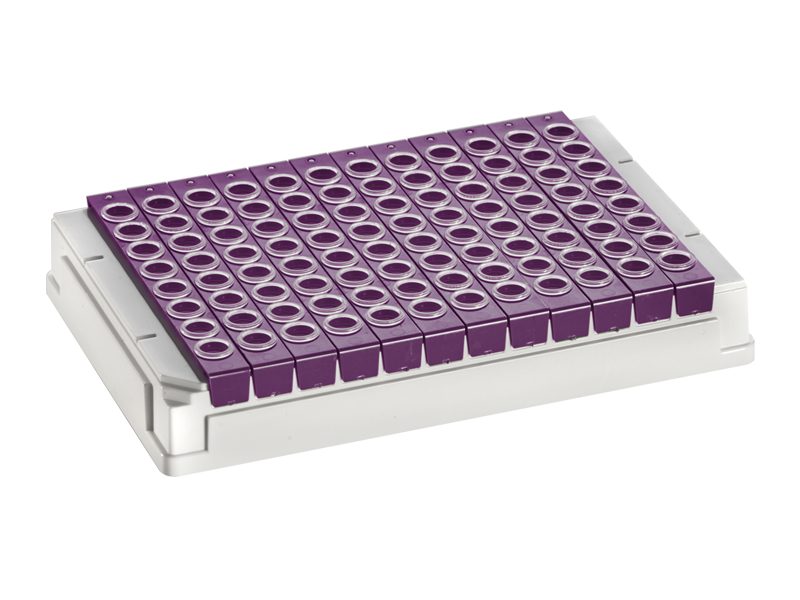

  • Standard profile 8 Well PCR Tube Strips with PC Frame have an interference fit with the adapter, ensuring they are held within the plate and do not move around/fall out during handling
  • Locator pins on the deck ensure the 8 Well PCR Tube Strips with PC Frame are always loaded in the correct orientation

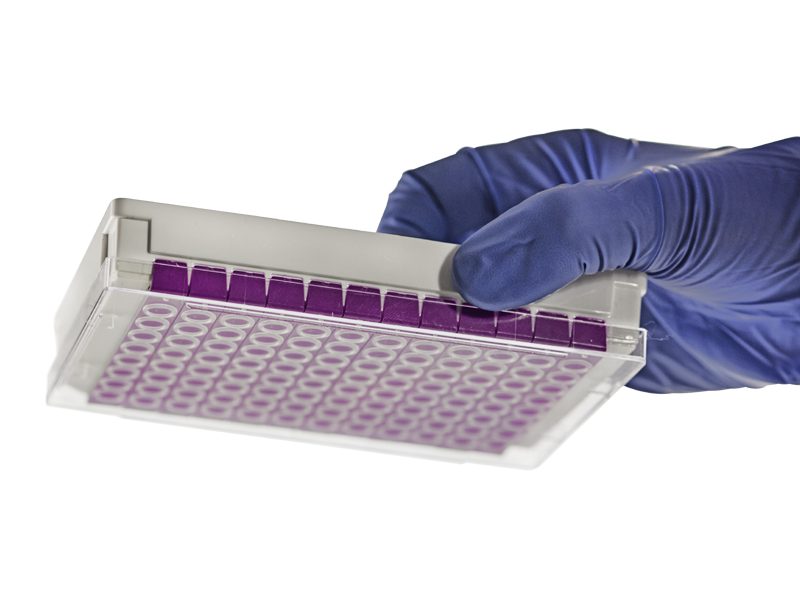

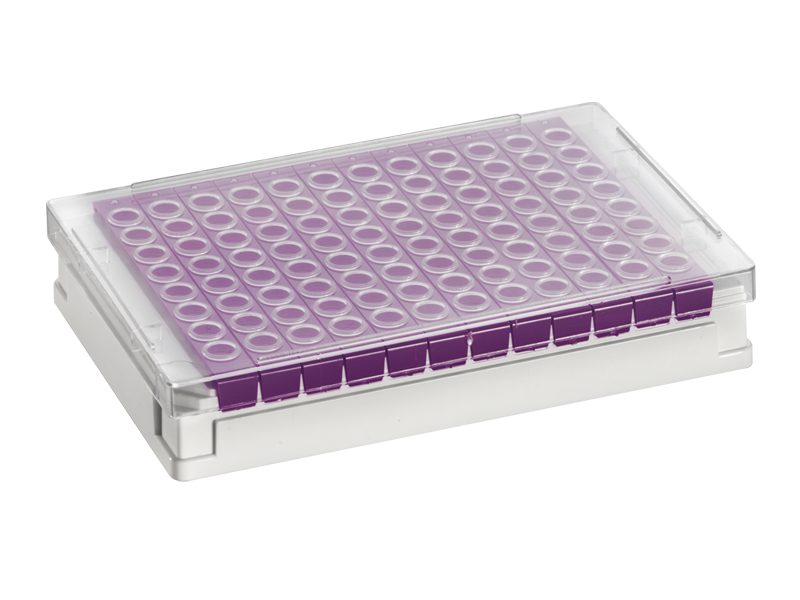

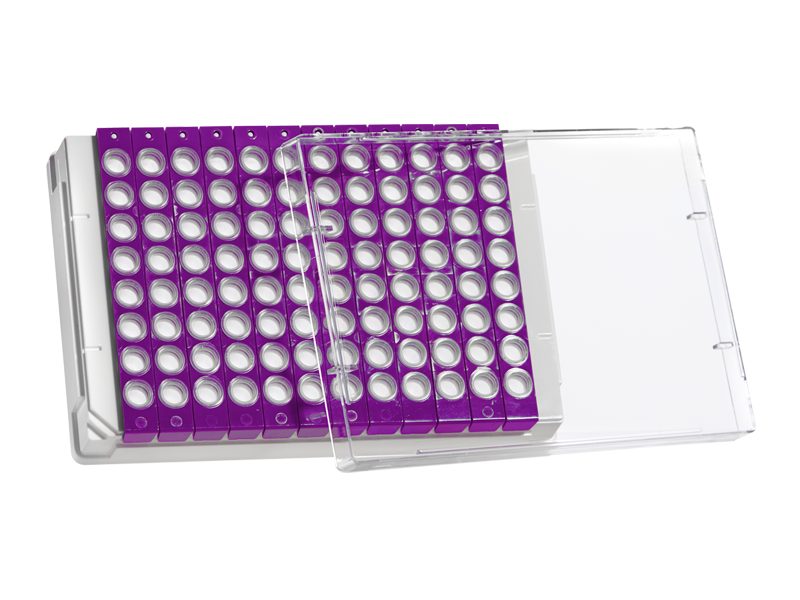

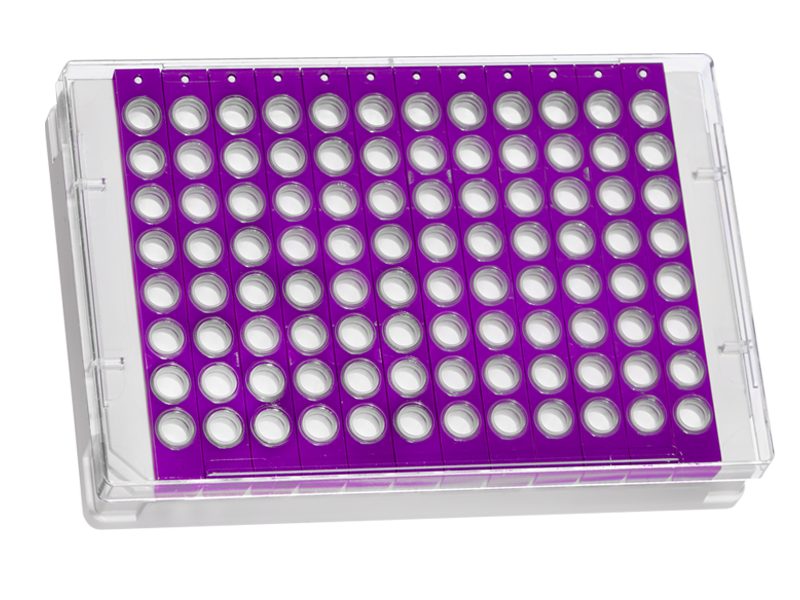

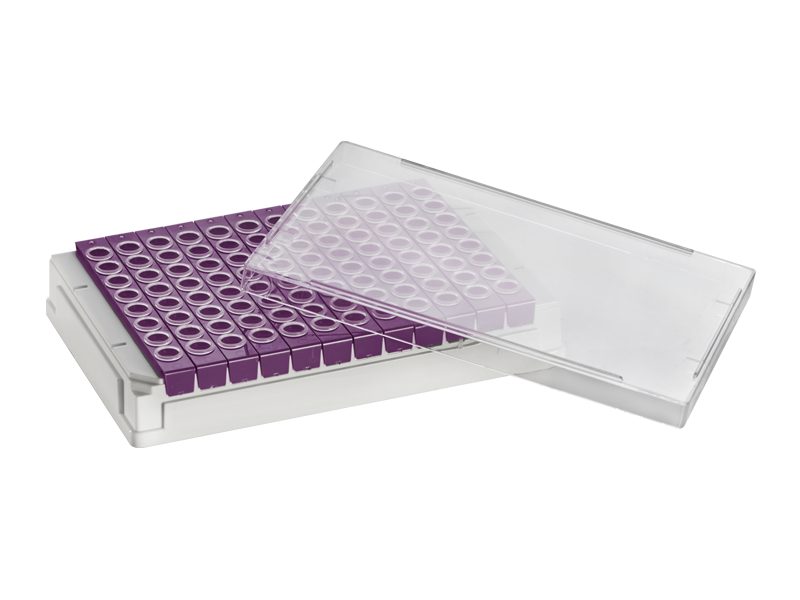

  • A dedicated lid with interference fit provides protection for the strips during handling and shipping
Cost & Space Saving Solution
  • Unlike heavy and solid adapters on the market, the 8 Well PCR Tube Strip Adapter can be affordably included in kits that are assembled and shipped to customer

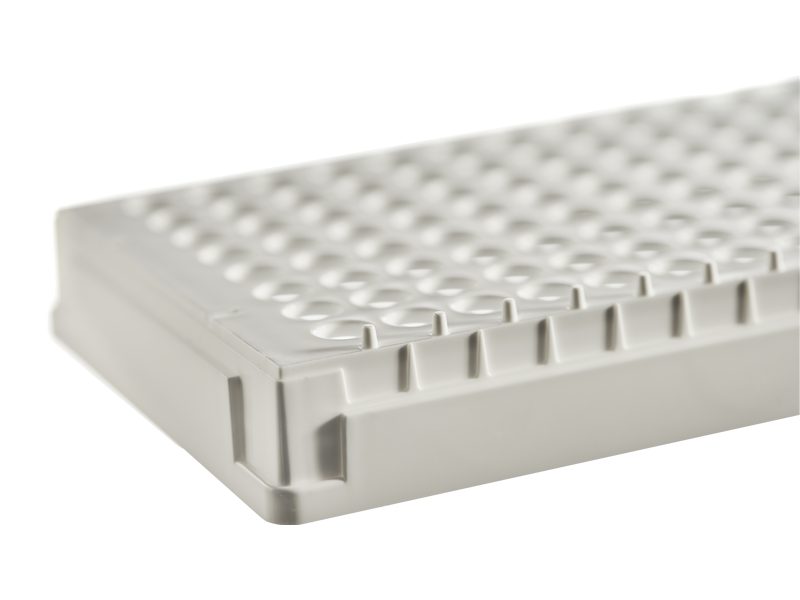

  • Slightly taller than standard profile PCR plates, fitting perfectly standard profile PCR tubes without taking up excessive space
Specifications
8 Well PCR Tube Strip Adapter
Format96 well
Length127.76 mm ± 0.25mm
Width85.48 mm ± 0.25mm
Height (without lid)18.75 mm ± 0.1mm
Height (with lid)24.0mm
Colorwhite
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

8 Well PCR Tube Strip Adapter
96 well skirted frame, white polycarbonate, cut corner H1, for use with 8 Well PCR Tube Strip with PC Frame
4ti-037118 adapters
Combi Packs
4ti-03708 Well PCR Tube Strip Adapter, With Lid, includes 8 Well PCR Tube Strip Adapter Lid; 18 adapters and lids
