8 Well PCR Tube Strip with PC Frame

8 well PCR tube strips with standard profile wells and a polycarbonate frame combine the advantages of thin-walled tubes for optimum PCR results and a rigid frame portion for easy and reliable handling.

  • PP wells, PC frame
  • <200µl working volume, 300µl total well capacity
  • Available with domed or flat optical cap strips
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

*Online availability to US only

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Tubes
  • Made of polypropylene, for the most efficient heat transfer, as well as an inert surface with low binding capabilities for nucleic acids, proteins and other molecules
Frame

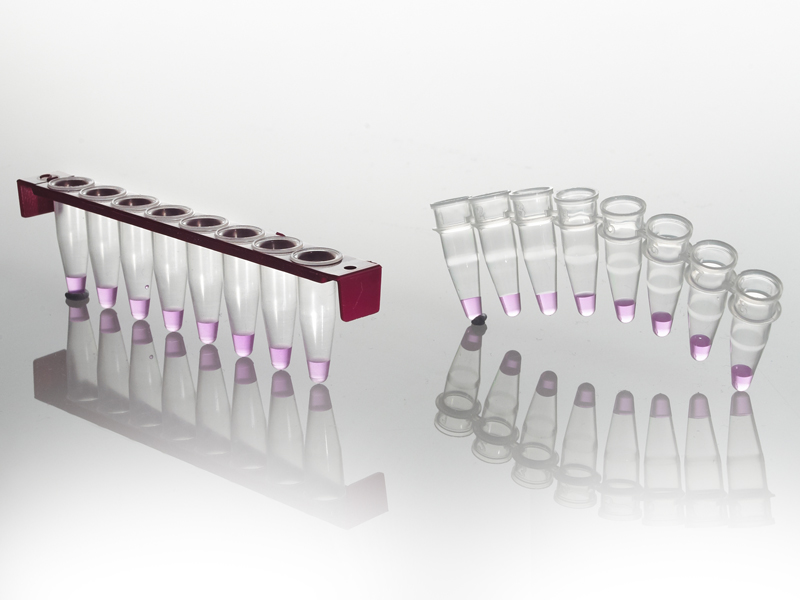

  • By molding the frame portion in a more rigid polymer, the mechanical stability of the strip has been greatly improved compared with traditional single piece products
  • End tabs allow for easy handling and labeling of the strips
Use
  • Compatible with the majority of thermal cyclers
Options

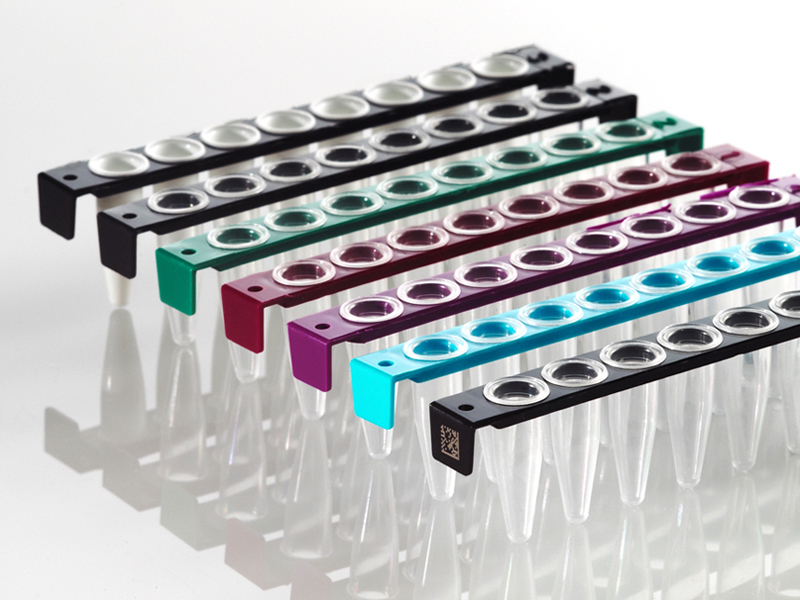

  • Available with the following frame color options for the clear well variety, for color coding of experiments: purple, blue, green, red, and black
  • Also available with white wells in black frames for optical assays such as those used in qPCR, as white wells increase the signal-to-noise ratio by maximizing reflection of light in fluorescent based assays
  • Available with either domed cap strips or with flat optically clear caps
  • Also available with an off-the-shelf 2D code, offering an endless supply of unique code combinations
Specifications
8 Well PCR Tube Strip with PC Frame
Strip length83.22 ± 0.25mm
Strip width9.00 ± 0.25mm
Strip height20.80 ± 0.25mm
Well depth20.30 ± 0.15mm
Well diameter5.46 ± 0.10mm
Total well capacity0.3ml (300µl)
Working volume<0.2ml (200µl)
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
  • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | ViiA7™
AGILENT/STRATAGENE
  • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
  • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
  • qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
BIOER TECHNOLOGIES
  • Thermal Cyclers (strips only): GeneQ
  • Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
  • Thermal Cyclers (strips only): Genecycler
  • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
  • qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (strips only): Mini Gradient
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
  • Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
  • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TAKARA
  • Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
  • Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
  • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

For recommended strip options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

8 Well PCR Tube Strip with PC Frame
Standard profile, 0.2ml polypropylene wells, polycarbonate frame, working volume: <200µl, total well capacity: 300µl
4ti-0785/Pclear wells, purple frame, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/Bclear wells, blue frame, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/Gclear wells, green frame, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/Rclear wells, red frame, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/Xclear wells, black frame, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/Mclear wells, mixed frame colors, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/XWwhite wells, black frame (for qPCR), with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/W/2Dclear wells, white frame, 2D coded, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0785/X/2Dclear wells, black frame, 2D coded, with strips of domed caps; 120 tube strips + 120 cap strips
4ti-0786/Pclear wells, purple frame, with strips of flat optical caps; 120 tube strips + 120 cap stripsBUY ONLINE*
4ti-0786/Bclear wells, blue frame, with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/Gclear wells, green frame, with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/Rclear wells, red frame, with strips of flat optical caps; 120 tube strips + 120 cap stripsBUY ONLINE*
4ti-0786/Xclear wells, black frame, with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/Mclear wells, mixed frame colors, with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/XWwhite wells, black frame (for qPCR), with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/W/2Dclear wells, white frame, 2D coded, with strips of flat optical caps; 120 tube strips + 120 cap strips
4ti-0786/X/2Dclear wells, black frame, 2D coded, with strips of flat optical caps; 120 tube strips + 120 cap strips

*Online availability to US only
