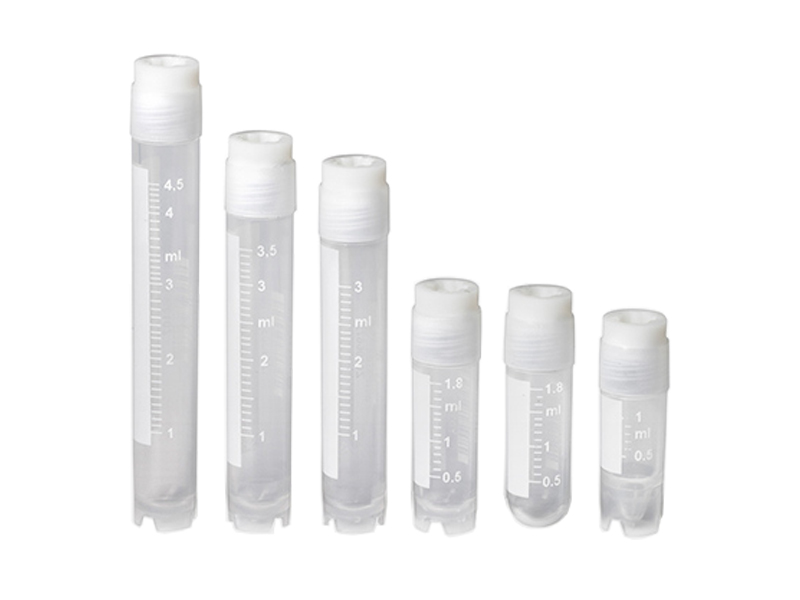

1.0ml-5.0ml 1D-coded Cryo Tube, External Thread

The 1.0ml-5.0ml 1D-coded Cryo Tubes, External Thread are leak-proof cryogenic vials ideal for cell culture and biobanking. The screw cap features a co-molded thermally-fused gasket to prevent leaking, slipping and contamination risk.

  • 95kPa certified gasket for a leak-proof seal
  • Compatible with auto-decapping equipment
  • Recommended for use in vapor phase LN2
  • Gamma irradiated

Want to request a quote, a demo, or to contact an expert?

*Online availability to US only

Product Details

Azenta Life Sciences leak-proof, auto-cap cryogenic vials are ideal for cell culture and biobanking. The screw cap features a co-molded thermally-fused gasket which prevents leaking, slipping and risk of contamination. The gasket is 95kPa certified to provide a leak-proof seal, and the star socket on cap top is compatible with auto-decapping equipment. Each vial is individually barcoded with a unique identifier that can be read with common barcode readers. Not recommended for storage directly in liquid nitrogen, but fit for use in vapor phase LN2.

Key Features

Quality & Properties
  • Co-molded thermoplastic elastomer sealing layer, 95kPa leak-proof seal
  • Star socket, compatible with automated decappers
  • Barcoded for easy and automated identification
  • Certified free of human DNA, DNase, RNase, Pyrogen, and ATP
  • Manufactured in Class 7 to FDA, GMP, and ISO-quality guidelines
  • External threads
  • Choice of volumes and sizes available
Specifications
1D-coded Cryo Tube, External ThreadH* x outside diamStyle
1.0ml40.1 x 12.5mmself standing
2.0ml44.5 x 12.5mmround bottom
2.0ml45.5 x 12.5mmself standing
3.0ml69.3 x 12.5mmself standing
4.0ml73.9 x 12.5mmself standing
5.0ml88.1 x 12.5mmself standing

*Height with cap attached

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

1D-coded Cryo Tube, External Thread
BCS-25171.0ml, self standing; 500 vialsBUY ONLINE*
BCS-25012.0ml, round bottom; 500 vialsBUY ONLINE*
BCS-25022.0ml, self standing; 500 vialsBUY ONLINE*
BCS-25033.0ml, self standing; 500 vialsBUY ONLINE*
BCS-25044.0ml, self standing; 500 vials
BCS-25055.0ml, self standing; 500 vials

*Online availability to US only

Resources

Application Notes & Tech Notes

APPLICATION NOTES & TECH NOTES
Snap Freezing of Tissue Samples Using CoolRack™ Thermoconductive Tube Racks
