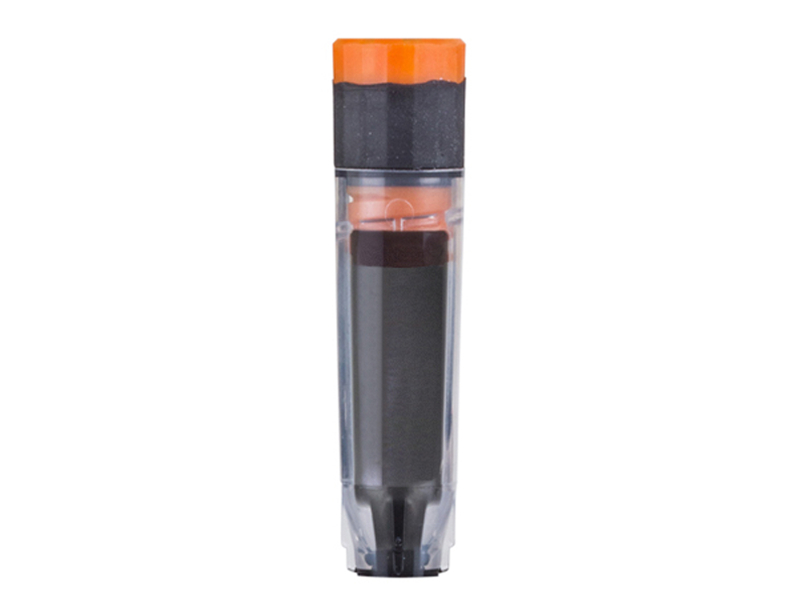

0.48ml 2D-Coded Tube, 96-format, Internal Thread

• Next Generation manufacturing techniques: clear with black area for own marking
• Made from high-quality virgin PP
• Permanently laser etched 2D code on base, ensuring a permanent link between sample and data
• 2D codes readable without removing tubes from racks
• High contrast 2D codes are more reliably readable in frost or condensation conditions
• 100% quality control, each tube is tested to ensure both readability and uniqueness
• Leak tested to ensure sample security
• Suitable for sealing with screw caps or TPE septum caps
• Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Screw caps

• Co-molded screw caps for internal thread tubes eliminate the possibility of over tightening
• Co-molded caps eliminate the failures common in caps using silicon O-rings
• Improved internal thread provides a more secure seal when using screw caps

TPE septum caps

• A cost effective sealing option for samples that are only accessed occasionally
• Septum caps are supplied in 96-format back mats to facilitate automation

96 format SBS racks

• TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
• TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
• LidLock: enables racks to withstand a 1m drop test for added sample security
• Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
• Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks

Cryo racks

• 136.2mm x 136.2mm PC cryobox rack option available for cryogenic sample storage, holding 196 tubes in 14×14 array
• Open bottom for 2D code decoding on Azenta Life Sciences Camera-Based Full Rack Barcode Readers
• Can be supplied with a unique 2D code identifier which can be read at the same time as the tube 2D code, for more secure sample tracking
