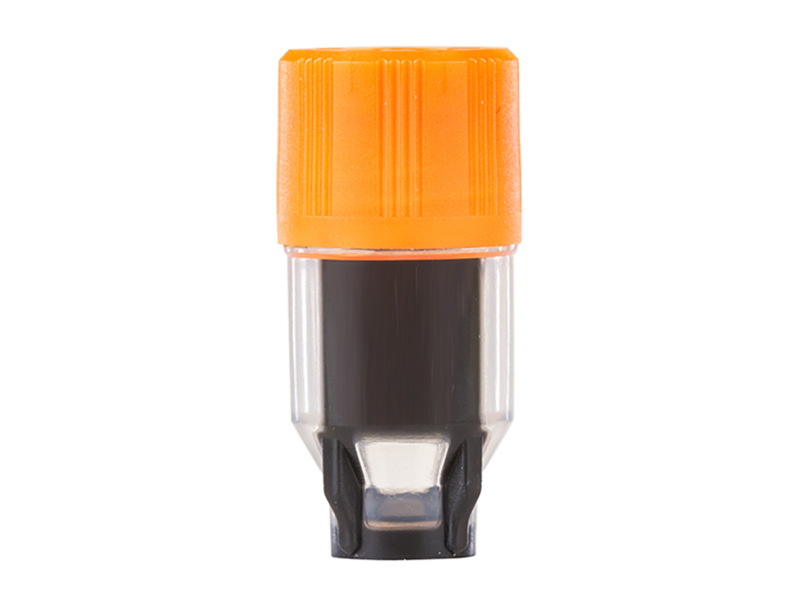

0.26ml 2D-coded Tube, 96-format, External Thread

The 0.26ml 2D-coded Tube, 96-format, External Thread provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage.

  • Code readable without removing tubes from racks
  • Suitable for cryogenic storage
  • Available in 96-well format SBS racks or bulk
  • Sealable with screw caps/TPE septum caps

Want to request a quote, a free sample pack, or to contact an expert?

*Online availability to US only

Product Details

Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers. Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage.

Each tube carries a unique and permanent high-contrast 2D code tube identifier on the base of the tube readable in frost or condensation conditions, or when damaged. Manufactured from high-quality virgin polypropylene.

Key Features

Secure Sample Storage & Tracking
  • Next Generation manufacturing techniques: clear with black area for own marking
  • Made from high-quality virgin PP

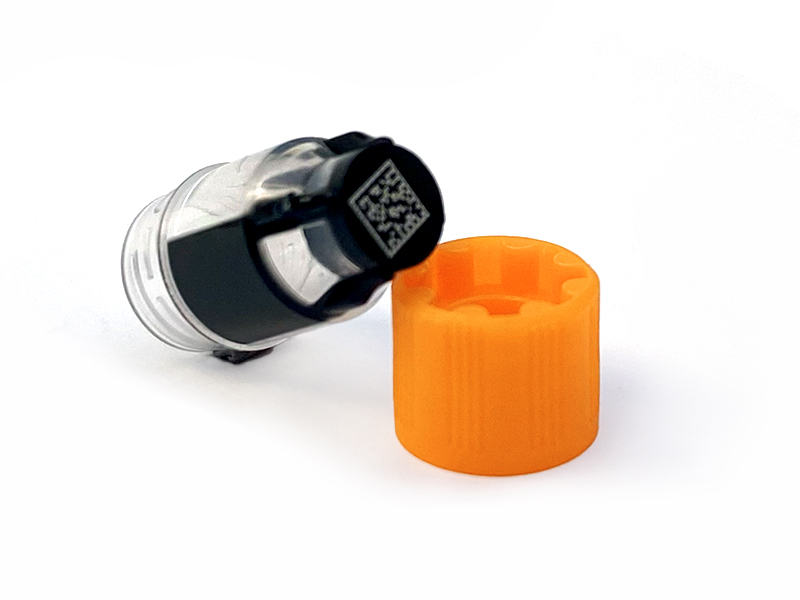

  • Permanently laser etched 2D code on base, ensuring a permanent link between sample and data
  • 2D codes readable without removing tubes from racks
  • High contrast 2D codes are more reliably readable in frost or condensation conditions
  • 100% quality control, each tube is tested to ensure both readability and uniqueness
  • Leak tested to ensure sample security
  • External thread tubes provide greater working volume than internal thread tubes
  • Suitable for sealing with screw caps or TPE septum caps
  • Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

  • A deforming compression seal more effective than a silicone alternative
  • A non-silicone seal means the cap can never be over-tightened
  • Caps and tubes are manufactured from the same material, preventing differential expansion during freeze-thaw cycles
  • A double-start thread engages in a maximum rotation of 180°, thereby facilitating automation

TPE septum caps

  • A cost effective sealing option for samples that are only accessed occasionally
  • Septum caps are supplied in 96-format back mats to facilitate automation
Racking Options

96 format SBS racks

  • TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
  • TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
  • LidLock: enables racks to withstand a 1m drop test for added sample security
  • Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
  • Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks
Specifications
0.26ml 2D-coded Tube, 96-format, External Thread (with screw cap)0.26ml 2D-coded Tube, 96-format, External Thread (with septum cap)
Max. working volume0.26ml0.23ml
Tube height15.2mm15.2mm
Tube height with cap18.6mm16.4mm
Inner diameter6.5mm6.5mm
Outer diameter with cap8.7mm8.7mm
Center to center9.0mm9.0mm
Minimum temperature-196°C-80°C
Tube height in rack19.13mm15.73mm
Overall rack height22mm22mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

0.26ml 2D-coded Tube, 96-format, External Thread
2D code on base
68-0301-00uncapped, bulk; 960 tubes
68-0301-01uncapped, racked (68-0300-20); 10 racks/960 tubes
68-0301-10capped, bulk; 960 tubes
68-0301-11capped, racked (68-0300-20); 10 racks/960 tubesBUY ONLINE*
Compatible Racks
68-0300-2096-Format, LowBase Rack; 10 racks

*Online availability to US only
