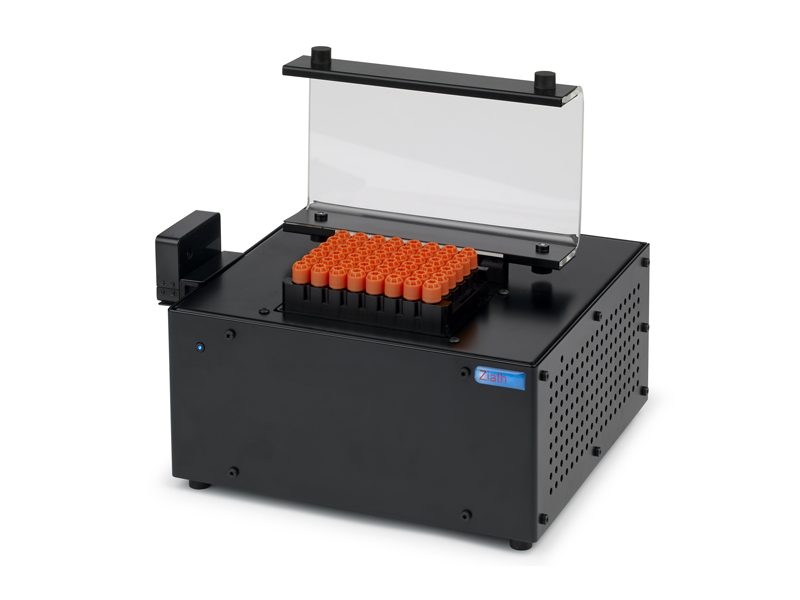

Ziath Mohawk Tube Picker 48 Position

The Mohawk Semi-Automatic Tube Selector enables you to pick individual or groups of tubes directly from 48-well racks with ease.

  • Works with frozen and thawed tubes
  • Fast and reliable tube picking
  • Also compatible with other LIMS via Excel® file

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

Key Features

Wide Labware Compatibility
  • Enables you to pick individual or groups of tubes directly from 48-well racks with ease
  • The Mohawk can lift one, two or up to sixteen individual tubes at a time, making it easy to remove them from the rack and place in a subsidiary rack or other tube device
  • Works with frozen and thawed tubes
  • The picklist can even include tubes that are contained in multiple racks
  • The integrated 1D barcode reader identifies individual racks and the system software then uses this ID to look up the pre-defined picklist; this reduces the risks of the wrong tubes being selected during picking
  • It can work in combination with a Ziath Mirage, Express or Cube reader to automatically create picklists and then verify the contents of the subsidiary (or Daughter) racks and reupload their new positions to FreezerPro or to your LIMS via an Excel file
FreezerPro & Other LIMS Compatibility
  • Picklists can be created manually or imported from the FreezerPro inventory management system or from your LIMS or another sample tracking program that can export Excel format files
Specifications
Ziath Mohawk Tube Picker 48 Position
Dimensions (W x D x H)300 x 250 x 180mm
Total weight4.3kg
Power adapterinput 100-240VAC +/- 10V; output12Vdc 5A
Labware compatibility48 position SBS racks
Picklist import.csv, .text, Excel®, .XML, .JSON
Operating system on host PCWindows® 10, 11
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Ziath Mohawk Tube Picker 48 Position
ZTS-MHK-48Includes Mohawk tube picker instrument, power adaptor, power cable, Mohawk software and license, 1D rack code scanner and bracket, user guide; 1 picker
ZTS-MHK-LOWLow Profile Tube Rack Adapter for Mohawk (if using tubes 0.5 ml or less); 1 adapter
