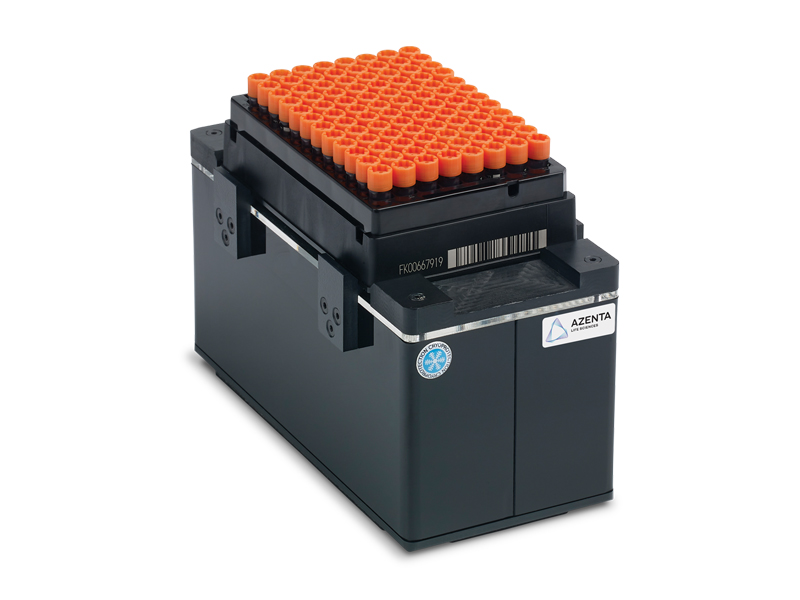

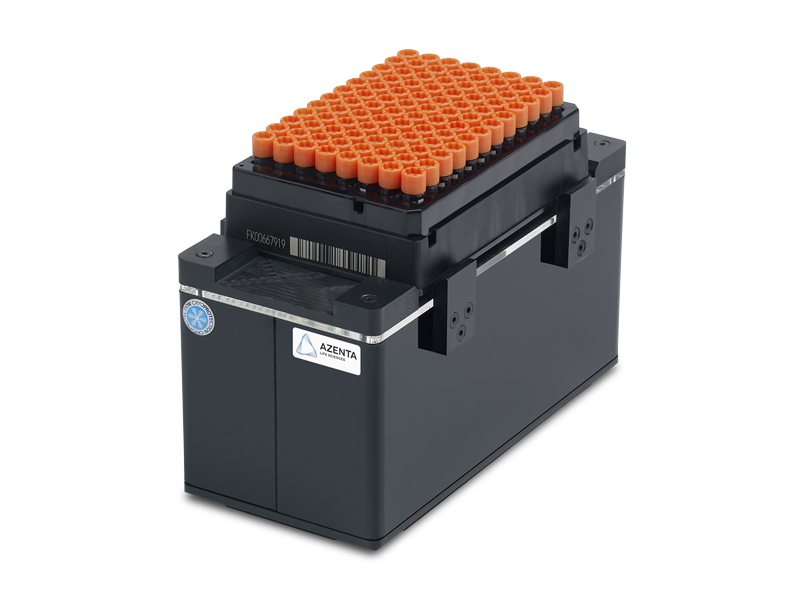

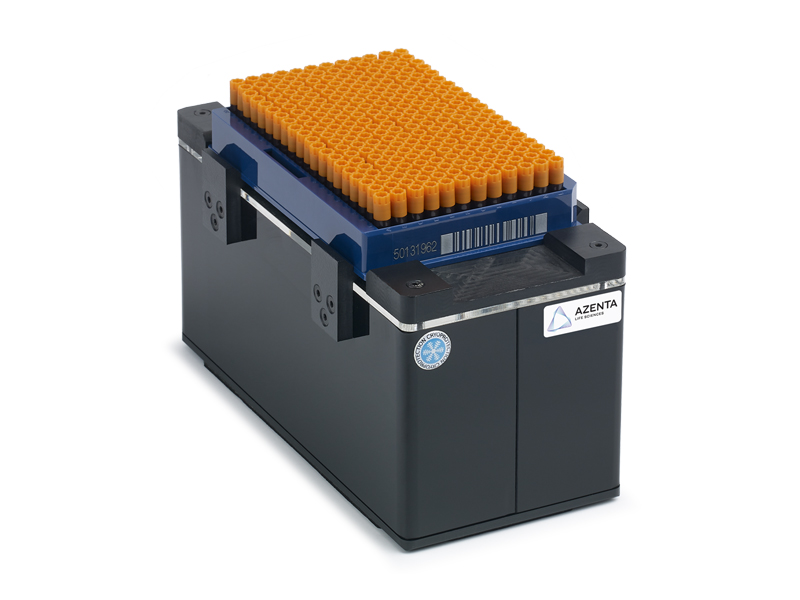

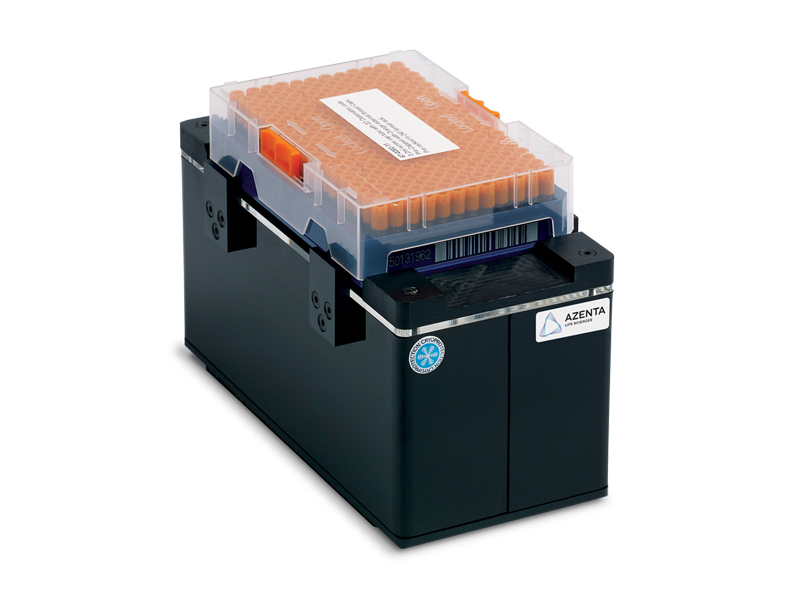

Ziath DP5 Express Rack Reader
The Express Rack Reader is a 2D datamatrix tube camera reader with an image capture time of only one second. The Express is marginally larger than the SBS rack itself, making it ideal for robotic integration.
- The smallest rack scanner currently available
- Camera-based, delivers rapid imaging & decoding
- Compatible with 24, 48, 96, 240, 384 well SBS racks
- Scans all makes of 2D barcoded tubes
Want to request a quote, a demo, or to contact an expert?
Product Details
Key Features
Wide Labware Compatibility & Integration Friendly
- Ideal for integration into large automated systems
- Available with either USB or RJ45 connector
- Capable of reading all SBS Rack formats
- Patented technology allows imaging under difficult lighting conditions
Space Efficient, Fast & Easy to Use
- Smallest footprint 2D barcode rack reader
- Fast camera-based reader
Integration with DP5 Reader Software
- Software designed and written in-house at Azenta
- Decoding 2D barcodes is achieved using our own algorithm which we specifically developed for ‘tube sized’ codes
- Not a global, generic “off-the-shelf” algorithm that was designed to read a barcode in a supermarket
- Displays the results of the scan and can identify the difference between a correctly scanned tube (green), a damaged tube (red) and missing tube (grey)
- Any tube image can be clicked on and the individual scan is shown (on the right hand side) with the tube location and barcode
Cryoprotection™ Option
- The occurrence of condensation whilst scanning 2D datamatrix tubes straight from cryogenic storage is well known
- Ziath’s Cryoprotection™ is a special proprietary coating that eliminates the condensation and ensures uninterrupted scanning
- Ziath’s method for eliminating condensation uses no extra electrical components
- Prevents the scanner window from misting up when a cold rack is scanned
- Our passive technology does not use heat or blown air
- No risk of accidentally thawing your samples
- Increased reliability and insurance that the cost of this option is at acceptable levels
The Mirage on the left has Ziath’s proprietary Cryoprotection which prevents fogging. That on the right has no special coating and condensation has formed from contact with the cold rack
Specifications
| Ziath DP5 Express Rack Reader | |
|---|---|
| Dimensions (W x D x H) | Imager: 85 x 185 x 95mm Controller: 95 x 195 x 55mm |
| Total weight | 1.4kg |
| Power adapter | input = 110-220V +/- 10V AC; output = 5V DC, 4A |
| Labware compatibility | 24, 48, 96, 240, 384 position SBS racks |
| Code compatibility | all commercially available DataMatrix 2D coded tubes |
| Data export | export data as .csv, .text, Excel®, .XML, .JSON, Python, .DB, .PNG or email |
| Operating system on host PC | Windows® 10, 11 |
| Warranty | 2 years |
| Software | includes remote control capability for integration application |
Ordering Information
Part Numbers
Use these part numbers to request a quote, a demo, or to contact an expert:
| Ziath DP5 Express Rack Reader | ||
|---|---|---|
| DP5-E-STD | Express Standalone and DP5 Standard; includes DP5 Express instrument, power adapter, power cable, DP5 software (download link supplied), USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader | |
| DP5-E-STD-80 | Express Standalone with Cryoprotection and DP5 Standard; includes DP5 Express instrument complete, power adapter, power cable, DP5 software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader | |
| DP5-E-NET | Express LAN and DP5 Network; includes DP5 Express LAN instrument, power adapter, power cable, DP5 Network software (download link supplied), USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader | |
| DP5-E-NET-80 | Express LAN with Cryoprotection and DP5 Express; includes DP5 Express LAN instrument, power adapter, power cable, DP5 Network software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader | |
| DP5-CYS-E | Cyclops 1D linear code scanner for Express; 1 side reader | |
