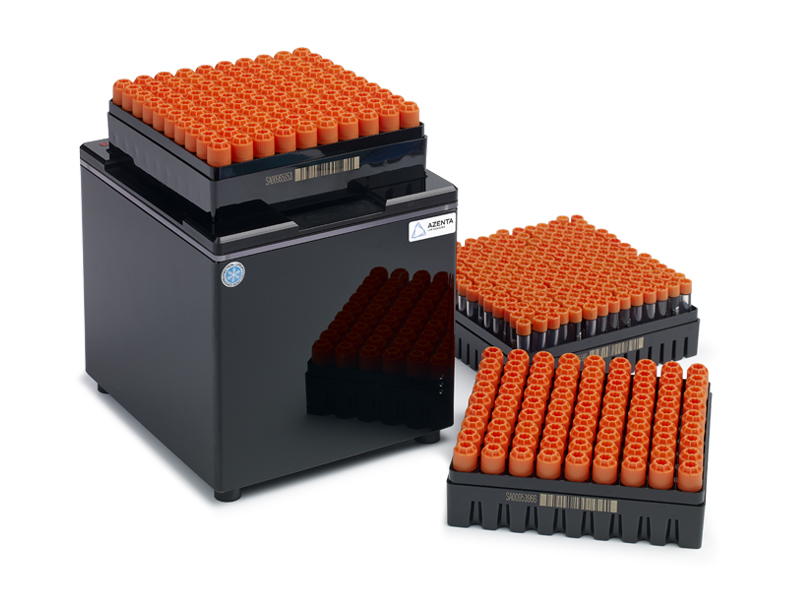

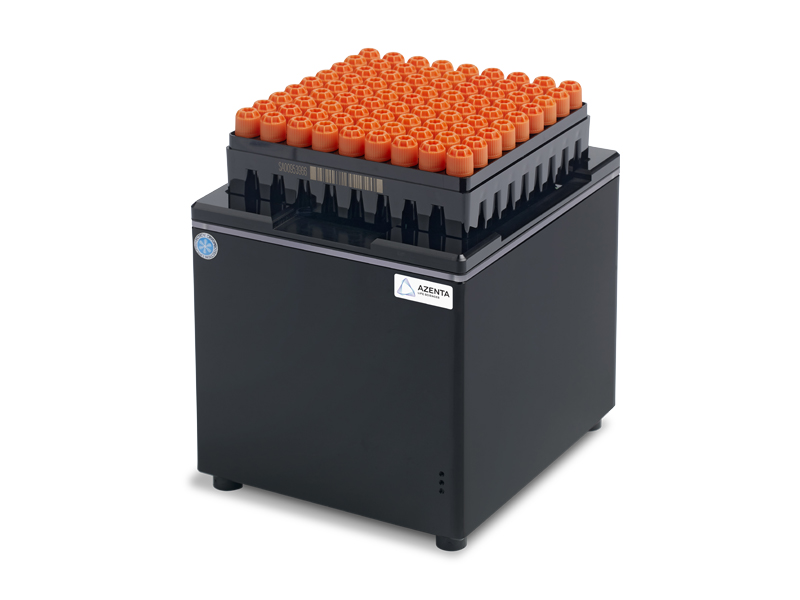

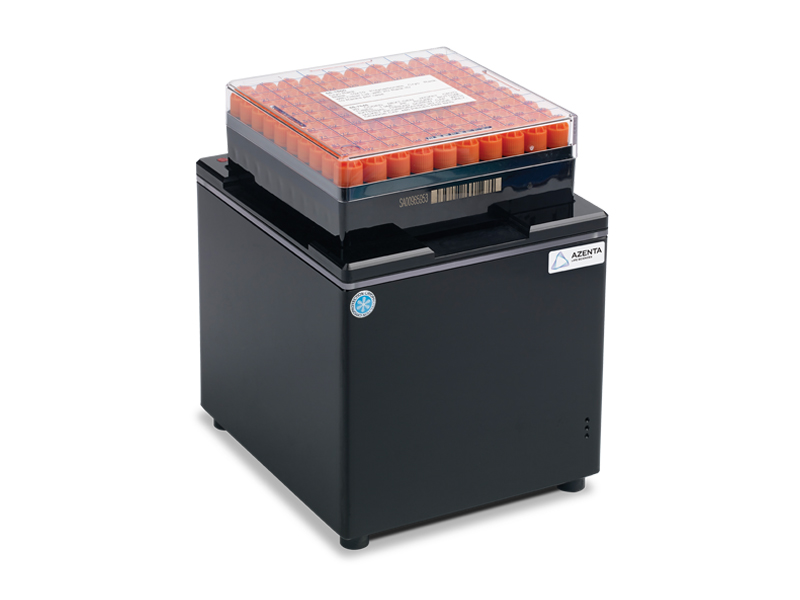

Ziath DP5 Cube Rack Reader
A compact, versatile, quick and robust scanner with minimal cabling. The Cube Rack Reader is a 2D datamatrix tube camera reader with a scan & decode time of 1-2 seconds.
- Smallest ‘scan all’ scanner on the market
- Footprint ideal for benchtop and integration
- Reads all SBS racks and cryoboxes on the market
- Also reads 384-well racks
Want to request a quote, a demo, or to contact an expert?
Product Details
Key Features
Wide Labware Compatibility & Integration Friendly
- Low profile allows use on robotic integrations for liquid handling systems
- Scans all current, commonly used, SBS format racks
- Scans acoustic tube racks in seconds (i.e. AcoustiX)
Space Efficient, Fast & Easy to Use
- Innovative and unique scanning technology (patent pending)
- Economically priced
Integration with DP5 Reader Software
- Software designed and written in-house at Azenta
- Decoding 2D barcodes is achieved using our own algorithm which we specifically developed for ‘tube sized’ codes
- Not a global, generic “off-the-shelf” algorithm that was designed to read a barcode in a supermarket
- Displays the results of the scan and can identify the difference between a correctly scanned tube (green), a damaged tube (red) and missing tube (grey)
- Any tube image can be clicked on and the individual scan is shown (on the right hand side) with the tube location and barcode
Cryoprotection™ Option
- The occurrence of condensation whilst scanning 2D datamatrix tubes straight from cryogenic storage is well known
- Ziath’s Cryoprotection™ is a special proprietary coating that eliminates the condensation and ensures uninterrupted scanning
- Ziath’s method for eliminating condensation uses no extra electrical components
- Prevents the scanner window from misting up when a cold rack is scanned
- Our passive technology does not use heat or blown air
- No risk of accidentally thawing your samples
- Increased reliability and insurance that the cost of this option is at acceptable levels
The Mirage on the left has Ziath’s proprietary Cryoprotection which prevents fogging. That on the right has no special coating and condensation has formed from contact with the cold rack
Specifications
| Ziath DP5 Cube Rack Reader | |
|---|---|
| Dimensions (W x D x H) | 152 x 174 x 146mm |
| Weight | 1.2kg |
| Power adapter | input = 110-220V +/- 10V AC; output = 5V DC, 4A |
| Labware compatibility | 24, 48, 96, 240, 384 position SBS racks 81, 100, 196 position cryoboxes |
| Code compatibility | all commercially available DataMatrix 2D coded tubes |
| Data export | export data as .csv, .text, Excel®, .XML, .JSON, Python, .DB, .PNG or email |
| Operating system on host PC | Windows® 10, 11 |
| Warranty | 2 years |
| Software | includes remote control capability for integration applications |
Ordering Information
Part Numbers
Use these part numbers to request a quote, a demo, or to contact an expert:
| Ziath DP5 Cube Rack Reader | |
|---|---|
| DP5-C-STD | Cube Standalone and DP5 Standard; includes DP5 Cube instrument complete with masks for racks and boxes, power adaptor, power cable, DP5 software (download link supplied), USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader |
| DP5-C-STD-80 | Cube Standalone with Cryoprotection and DP5 Standard; includes DP5 Cube instrument complete with masks for racks and boxes, power adaptor, power cable, DP5 software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, user guide (download link supplied); 1 reader |
| DP5-CYS-C | Cyclops 1D linear code scanner for Cube; 1 side reader |
