Ziath Cyclops 1D Rack Barcode Scanner

The Cyclops comes with a dedicated bracket for each of the three Ziath camera-based rack readers: Mirage, Express or Cube. Scans linear 1D barcodes printed on the end of a rack of 2D barcoded tubes.

  • Reads in milliseconds
  • Wide range of placement options

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

Key Features

Fast, Easy to Set Up & Use
  • Very quick and easy to install
  • The linear rack scan takes less than one second and the scanner is powered and controlled by USB cable, so needs no additional power cables
  • Illuminates and then scans linear 1D barcodes printed on the end of a rack of 2D barcoded tubes
  • Rack identity is then reported together with the individual tube identities when the full rack is read by the instrument
  • The Cyclops is not required if the racks in use have an ‘orientation barcode’, sometimes called a ‘97th code’ underneath, as this can be read by the Ziath DP5 software at the same time as the tubes

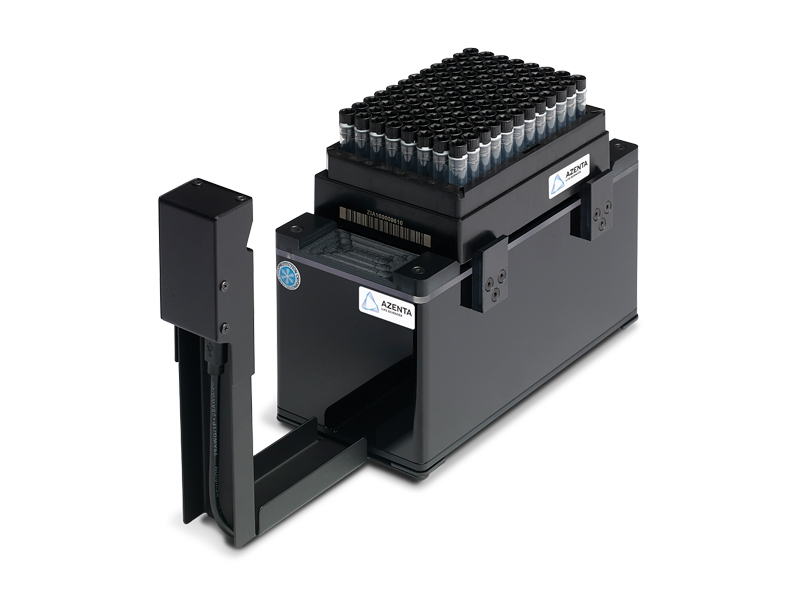

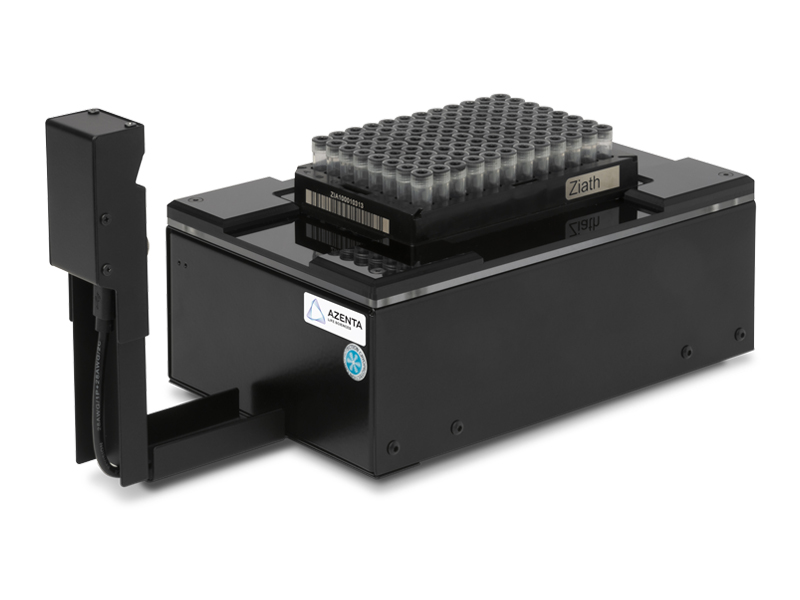

  • Comes with a dedicated bracket for each of the three Ziath camera-based rack readers: Mirage, Express or Cube
  • Brackets are NOT interchangeable, so please ensure that you choose the correct part number for your instrument

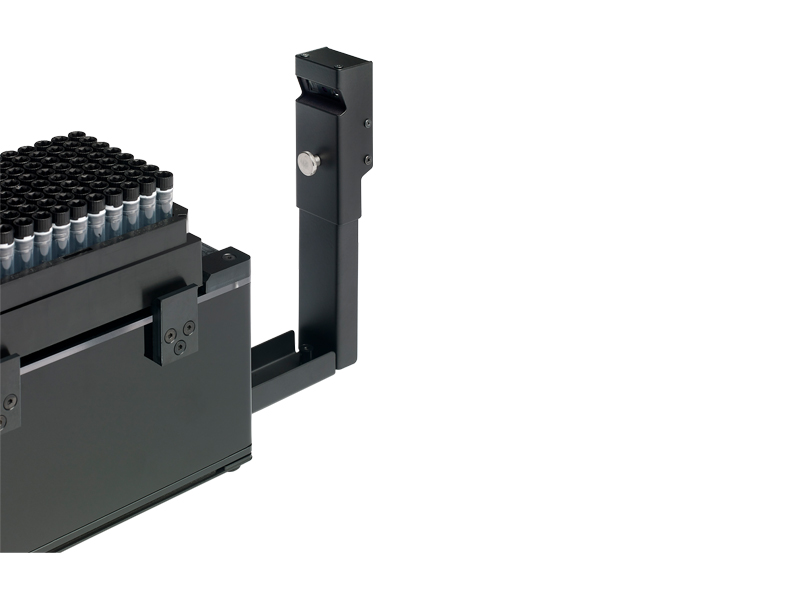

  • They simply attach to the reader using the feet of the instrument to secure them
  • The Cyclops device slides into position and is held in place by a thumb-wheel
Specifications
Ziath Cyclops 1D Rack Barcode Scanner
Dimensions (W x D x H)30 x 25 x 80mm
Weight100g (without bracket)
Bracketrequires an extra 8 cm ahead of each instrument
Micro-USB to USB cableincluded
Data exportexport data as .csv, .text, Excel®, .XML, .JSON, Python
Operating system on host PCWindows® 10, 11
Warranty2 years
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Ziath Cyclops 1D Rack Barcode Scanner
DP5-CYS-MCyclops Advanced Rack Code 1D Scanner for DP5 Mirage); 1 side reader
DP5-CYS-ECyclops Advanced Rack Code 1D Scanner for DP5 Express; 1 side reader
DP5-CYS-CCyclops Advanced Rack Code 1D Scanner for DP5 Cube; 1 side reader
