46-2004-115V | Semi-Automated Septum Cap Capper 115V

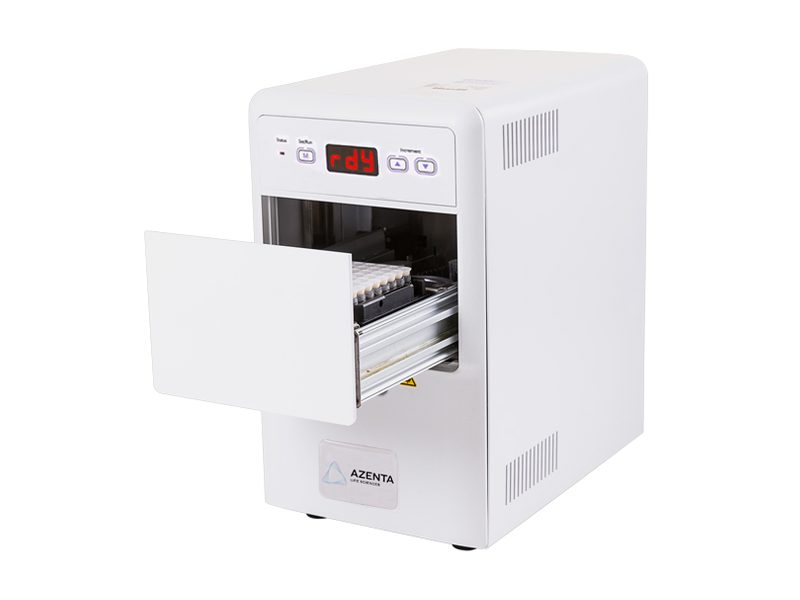

Semi-Automated Septum Cap Capper

The Semi-Automated Septum Cap Capper ensures TPE septum cap sealing for sample tubes in 96-SBS formats. It provides secure storage tube sealing, preserving sample integrity and audit trails in biobanks, compound libraries, and high-throughput storage applications.

  • Flexible sealing performance
  • Broad compatibility
  • Fast and easy to use
  • Additional TubeLock functionality

Jump To:

Details | Specifications | Order Info | Resources

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

Semi-Automated Septum Cap Capper system for TPE septum cap sealing of sample tubes and micro plates in 96-well SBS formats. Offering secure storage tube sealing, the system helps preserve sample integrity and audit trails in biobanks, compound libraries and other high-throughput storage applications.

Key Features

Flexible Sealing Performance, Broad Compatibility
  • Suitable for use with all 96-format Azenta Life Sciences sample storage tubes with TPE septum caps
  • Also fit for use with Micronic tubes with TPE Capmats, Matrix Technologies tubes with Sepraseals and Abgene Sealing Mats
  • Depth of capping action is adjustable with the use of spacer plates, which ensures effective and efficient capping of all tube types
  • Can be used to seal either full or partially-full racks
Fast & Easy to Use
  • Cycle time for capping is 20-30 seconds, depending on tube type

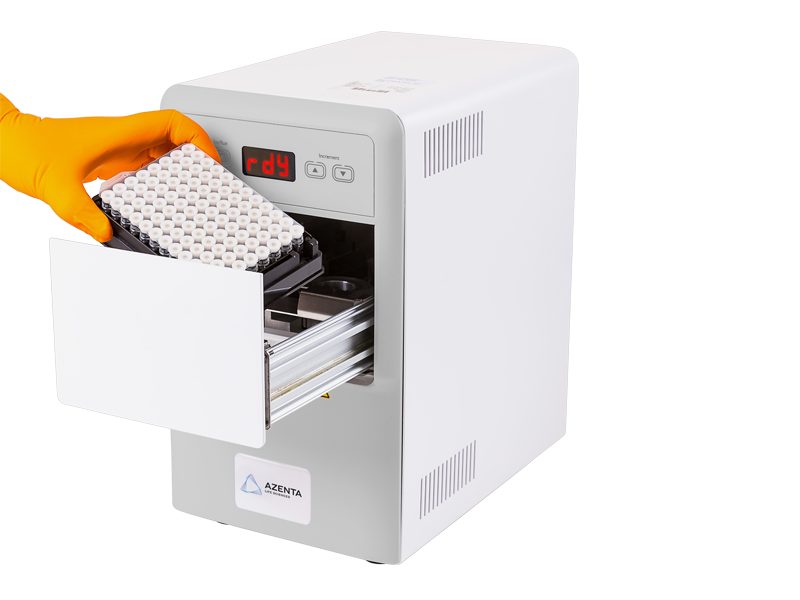

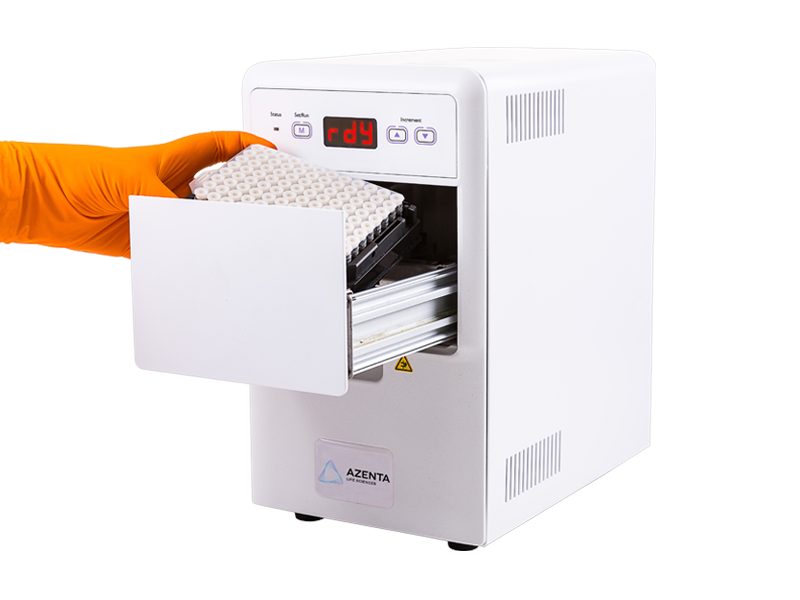

  • Simply place a rack in the drawer, with a TPE septum cap mat fitted loosely on top
  • Push the drawer shut, and the capping action will start automatically
  • Once all caps have been inserted, the drawer will open automatically and the sealed rack of tubes can be removed
Additional TubeLock Functionality

  • Using the Semi-Automated Septum Cap Capper in conjunction with Azenta Life Sciences racks featuring TubeLock enables automatic locking and unlocking of tubes within the rack
  • Azenta Life Sciences racks with TubeLock are dual position, allowing tubes to be locked in place for added sample security during handling
  • Individual sample tubes can be pushed downwards to lock and pulled upwards to unlock in the rack
  • For a faster approach, Semi-Automated Septum Cap Capper, with an adapter set, can be used to lock, or unlock, all tubes in a 96-format rack simultaneously
Specifications
  Semi-Automated Septum Cap Capper
Dimensions (H x D x W) 310 x 275 x 171mm
Weight 10kg
Voltage 115/230 ± 10%Vac
Frequency 50/60Hz
Power 100 VA
Operating temperature range 18°C to 35°C
Storage temperature range -20°C to 40°C
Relative humidity 20% to 80% not condensing
Cycle number 1-10

Product Documentation



Semi-Automated Septum Cap Capper User Guide

Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Semi-Automated Septum Cap Capper
Cap-mat sealer, includes set of adapters: 42-1001; 6.09.664 & 42-1003 suitable for 96-format Azenta Life Sciences tubes with TPE Caps
46-2004-115V 115V; 1 capper
46-2004-230V 230V; 1 capper
Adapters
42-1003 Adapter for Azenta Life Sciences tube rack [A] C:2mm H:4mm – Included
6.09.661 Adapter for Azenta Life Sciences tube rack [B] C:1.6mm H:14mm – Included
42-1001 Adapter for Azenta Life Sciences tube rack [C] C:2mm H:21mm – Included
6.09.663 Adapter for Azenta Life Sciences tube rack [D] C:0.4mm H:30mm – Optional
6.09.664 Adapter for Azenta Life Sciences tube rack [E] C:0.4mm H:37mm – Optional

Support Plans



Tailored to suit your specific needs, our support plans help to minimize downtime, offering corrective services, remote diagnostics, and preventative maintenance to keep your instruments in top working order.

Instrument Support Plans
Resources

Brochures & Catalogs

Azenta Life Sciences Sample Consumables and Instruments Catalog

Manuals & Guides

Semi-Automated Septum Cap Capper User Guide
