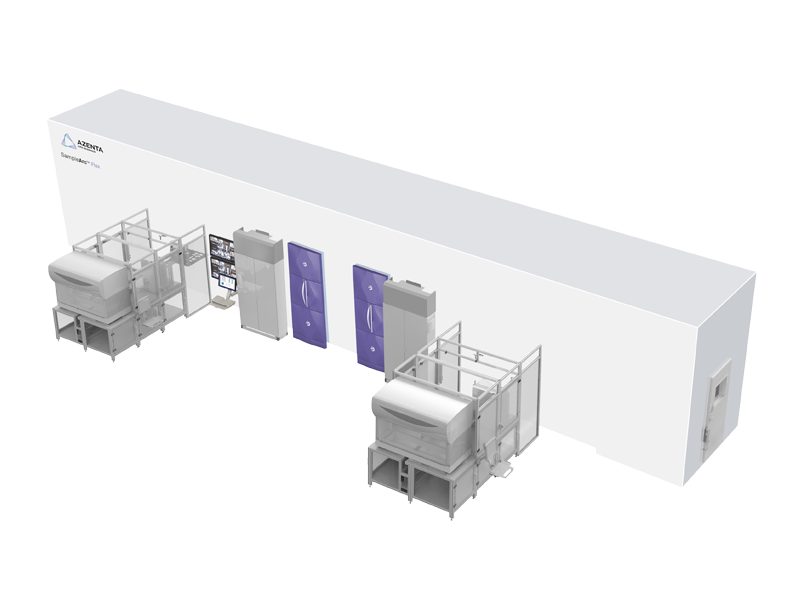

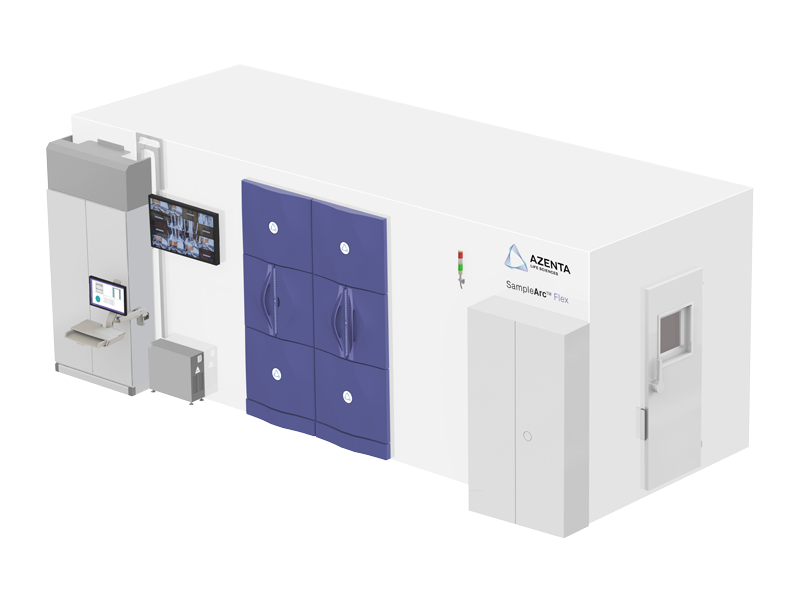

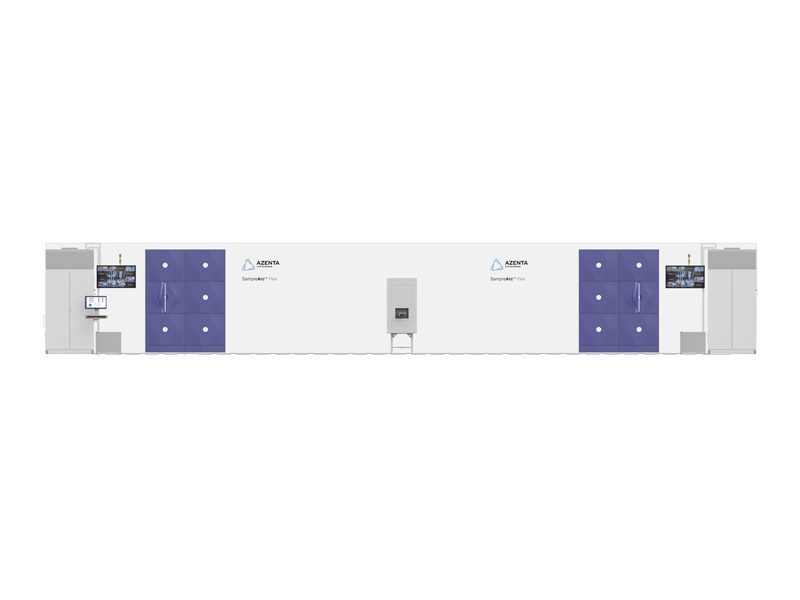

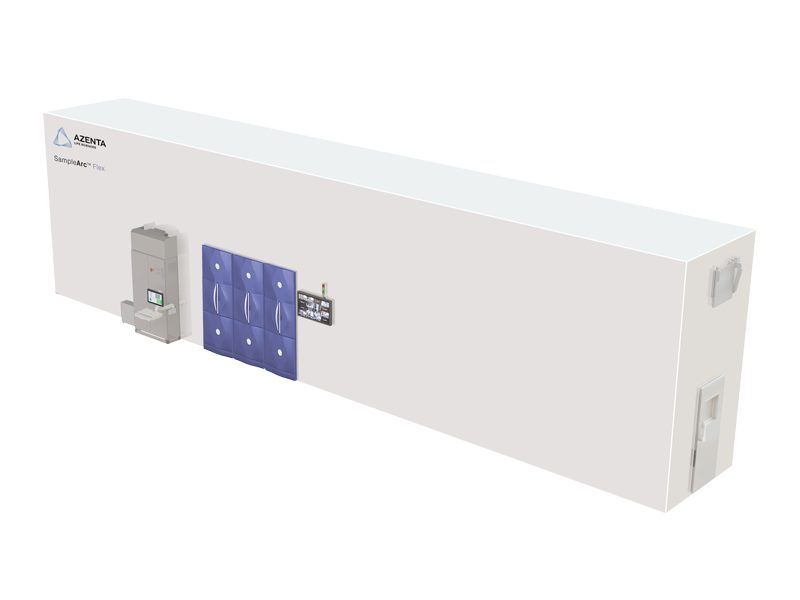

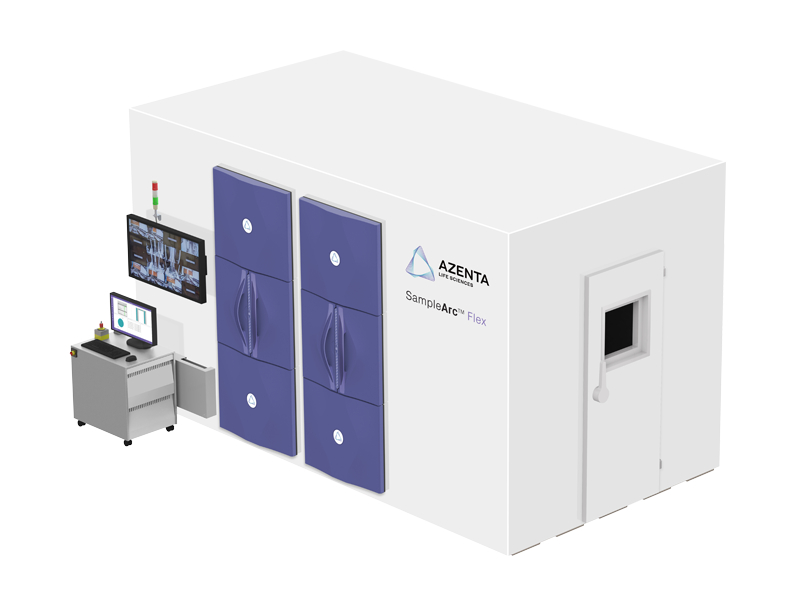

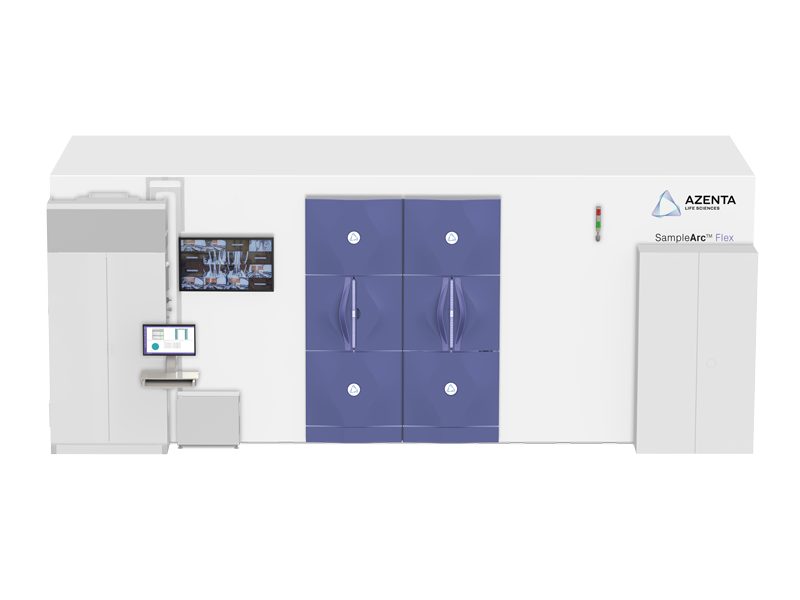

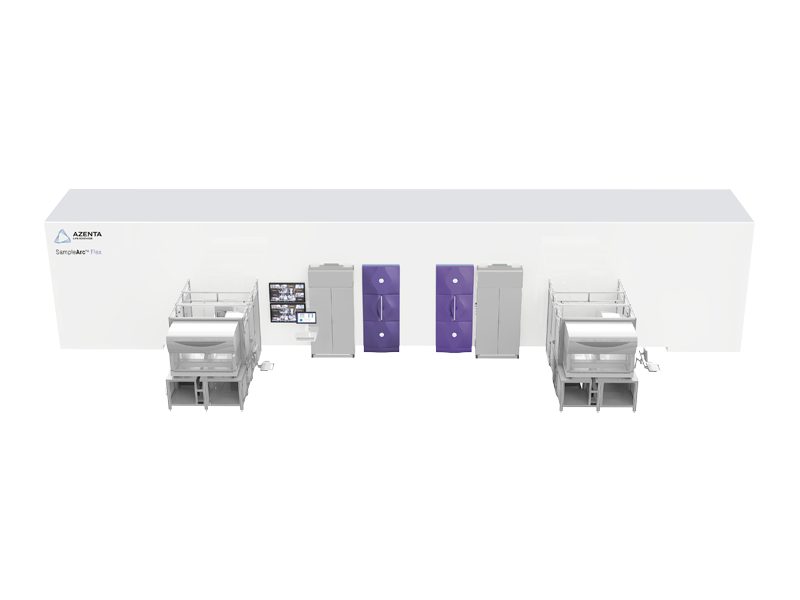

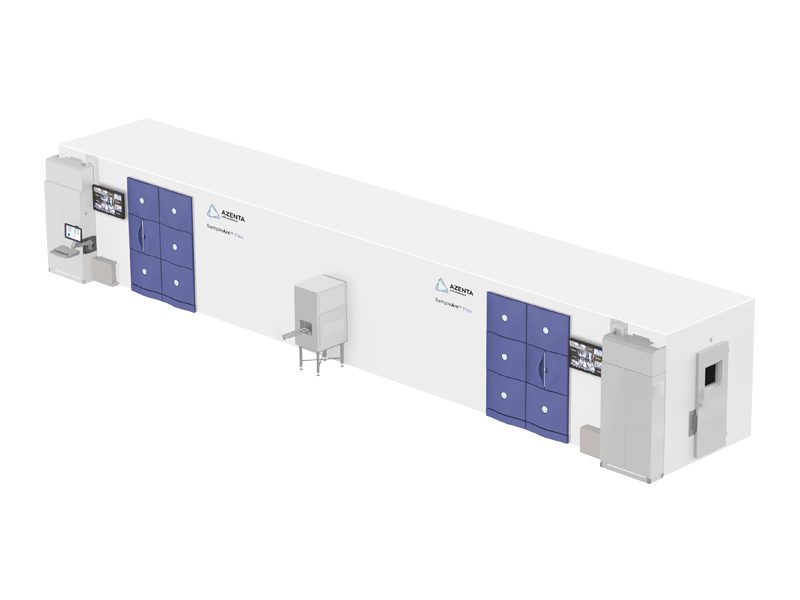

SampleArc™ Flex Ambient to -20°C Automated Sample Storage System

The Azenta SampleArc Flex is scalable for sample storage capacity and throughput. Our Sample Management experts will design the store to meet the requirements of your workflow also considering the growth of the sample collection and future processing needs.

  • Can accommodate over 100 million tubes
  • Fits the widest range of labware in a single store
  • Flexibility in storage shelving
  • Pick rates of over 100,000 tubes in 24 hours

Want to request a quote, or to contact an expert?

Product Details

The Azenta Life Sciences SampleArc Flex is a highly customizable, flexible advanced automated sample management and storage system ensuring consistent temperature and data integrity. Ideal for efficiently managing sample inventories while minimizing temperature cycling, the SampleArc Flex supports storage temperatures ranging from room temperature to -20ºC.

With fully configurable modules, the SampleArc Flex accommodates various capacities, throughputs, and labware types. Its adaptable automation can handle tubes, vials, plates, acoustic tubes, SBS plates, cryoboxes, syringes, and more.

Available in various models, including space-efficient and dual temperature options (under the BioArc line), the SampleArc Flex can be tailored to your specific storage and capacity requirements. Contact us to discuss how the SampleArc Flex can meet your unique sample storage needs.

Key Features

Properties
  • System sizing: A wide range of capacity options are available from 105,000 to over 22 million tubes dependent on labware
  • Standard modules: Standard modules include input/output, imaging, picking, etc. selected at point of order and/or upgraded later
  • Picking modules: Allow the SampleArc System to be configured to handle your sample labware and meet your throughput requirements
  • Sample security: Provides secure user access login and maintains consistent storage temperatures
  • Efficiency: Samples can be physically grouped to separate types, projects, or frequency of access
  • High throughput: Dual-shuttle automation can double standard throughput rates, supporting pick rates of over 100,000 tubes in 24 hours
  • Easy to use: No special expertise required to operate the system
  • Automation Interface option: Provides a means of directly interfacing the store with an external automation system
Labware Flexibility
  • Labware flexibility: SampleArc Flex handles the widest range of labware available in a single store, including SBS-format plates, tubes, and cryovials
  • Acoustic tube capability: The SampleArc system picks Acoustic Sample Tube, which is Echo® Qualified
  • High-density storage: Reformatting labware to proprietary HD storage racks can more than double storage capacity compared to SBS format storage
  • Multi-pitch shelving: Optimized shelving pitch based on labware height ensures maximum storage density; a sample imaging module captures barcodes, labware type and heights to assure an optimal storage location
Store Controller Software

Intuitive, easy-to-use, fully featured ARCON™ Store Controller Software is included in SampleArc systems for effective sample management and inventory control. It provides

  • Sample security: Conducts lifetime inventory and environmental tracking while compiling sample chain of custody and audit trail reports.
  • High performance and reliability: Provides full order control, including drag-and-drop order prioritization. Optimizes throughput with more efficient batch workflows and order decomposition.
  • Easy to use: Intuitive, information-rich display with modern graphics permits operations with zero special training. Customizable screens permit application-specific workflow presentations.
  • Seamless IT integration: Flexible deployment options include active directory integration and encrypted system access passwords. LIMS options include web services API, database, and file-based integration. Accessibility is highly configurable with definable user roles.
  • Configurable: Creation of users and roles, gadget and access customization, system level customization.
  • Compliance: ARCON supports 21 CFR Part 11 compliance.

Learn more about ARCON Store Controller Software

Specifications
SampleArc Flex (Smallest Available)SampleArc Flex (Largest Available)
Dimensions (L x D x H)5.7 x 2.6 x 2.83m
18’8″ x 8’7″ x 9’4″
17.5 x 2.6 x 4.83m
57’5″ x 8’7″ x 15’10″
Acoustic tube capacity3,150,000 tubes27,000,000 tubes
0.2ml tube capacity2,650,000 tubes22,500,000 tubes
0.48ml tube capacity1,550,000 tubes13,300,000 tubes
0.9ml tube capacity1,220,000 tubes10,400,000 tubes
1.5ml tube capacity445,000 tubes3,800,000 tubes
SBS microplate, 14.5mm high, foil sealed capacity18,800 microplates160,000 microplates
