Individual Access 96 Well Skirted PCR Plate

96 well skirted plates with individually removable & sealable tubes designed to reduce transfer steps between (q)PCR and storage/incubation. Low profile wells, recommended for reaction volumes <20µl. Ideal for use with robotic systems.

  • PP wells, rigid PC frame; cut corner H1
  • <100µl working volume, 200µl total well capacity
  • Same tube fit for (q)PCR and storage
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

96 well, fully skirted, low profile format with each tube inserted separately into the plate frame, allowing for selection and removal of individual tubes from the plate. Each tube clicks into place in the frame ensuring tubes are secure once inserted. The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR.

Together with the SBS footprint, this makes the plate suitable for use with robotic systems, ideal for both small to high throughput labs. Empty frames are available for tubes to be transferred to. The frames can be re-used multiple times, depending on the application.

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Tubes

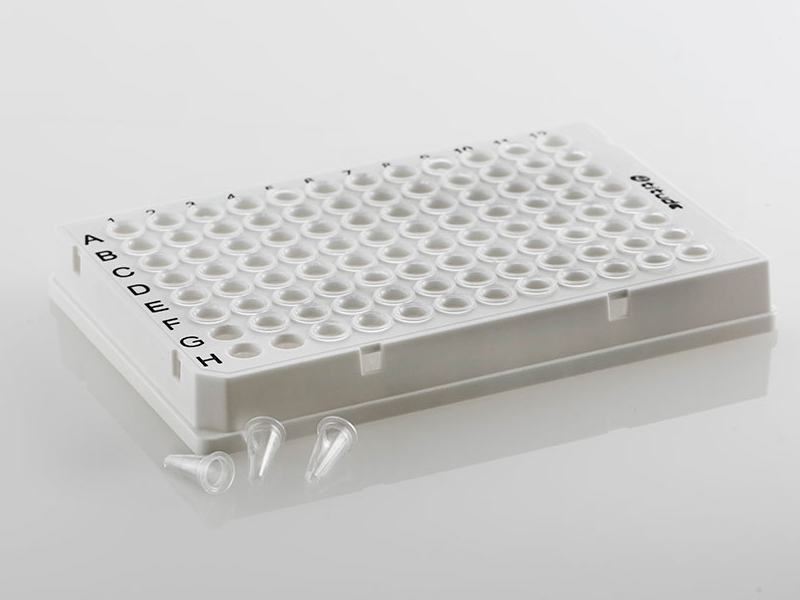

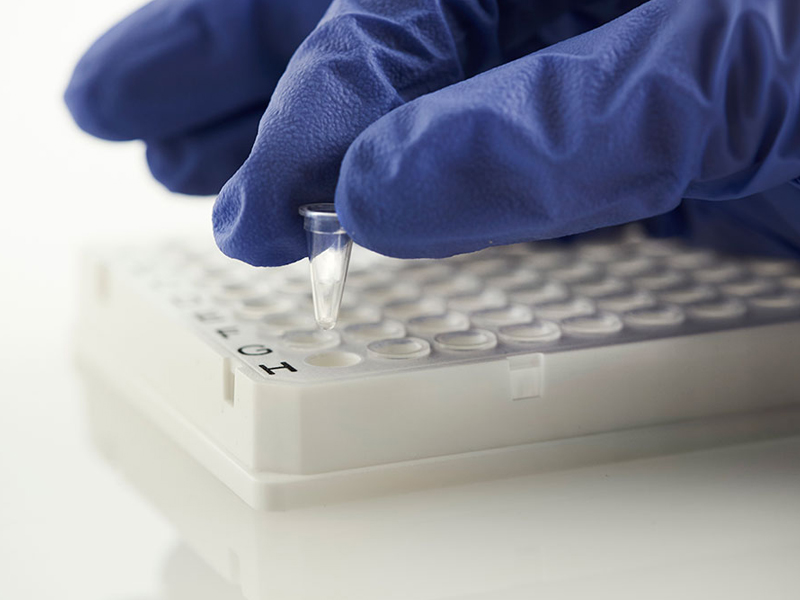

  • Individually removable from the rigid frame, while the rest of the tubes can remain in storage, reducing freeze-thawing of the whole plate
  • Thin walled tubes are made from PP for optimal results in (q)PCR whilst also being suitable for storage and incubation
  • <100µl working volume, <200µl total well capacity
Frame
  • Rigid polycarbonate frame provides mechanical stability of the plate

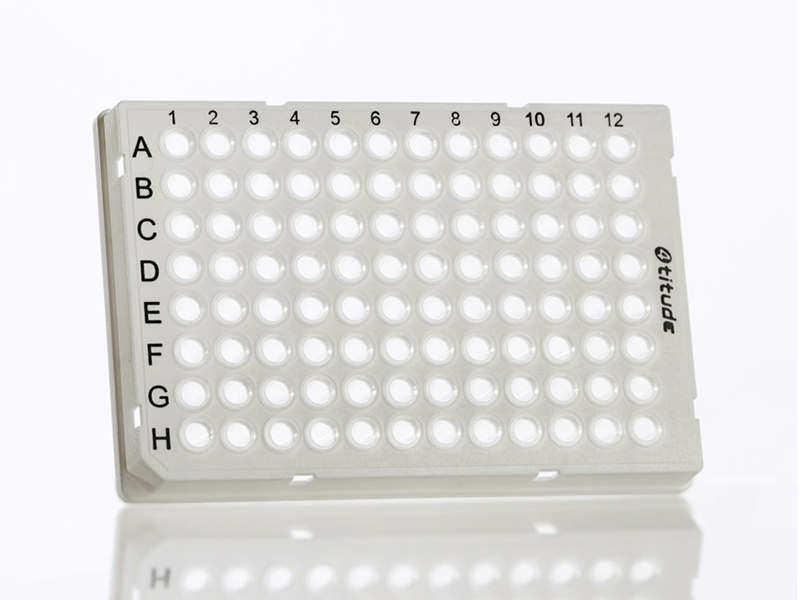

  • Alphanumeric grid reference to aid well and sample identification
Use
  • Ideal for use with robotic systems
  • Fewer transfer steps as the same tube can be used for both (q)PCR and storage
  • Each tube can still be separated after sealing
  • Each tube can be individually heat sealed using the Individual Access Pierce Heat Seal Strong, such as the contents of each tube is left secure from cross contamination and evaporation for storage and transfer
Options
  • Empty frames are available for tubes to be transferred to; frames can be re-used multiple times, depending on the application
  • The plate can be sealed in one step using Individual Access Pierce Heat Seal Strong (4ti-05381/RA) on the Semi-Automated Sheet Heat Sealer (using the 59-2005 Individual Access adapter), resulting in individually sealed tubes with pierceable seals to allow for sample access
  • Available barcoded upon request; learn more about our barcoding options

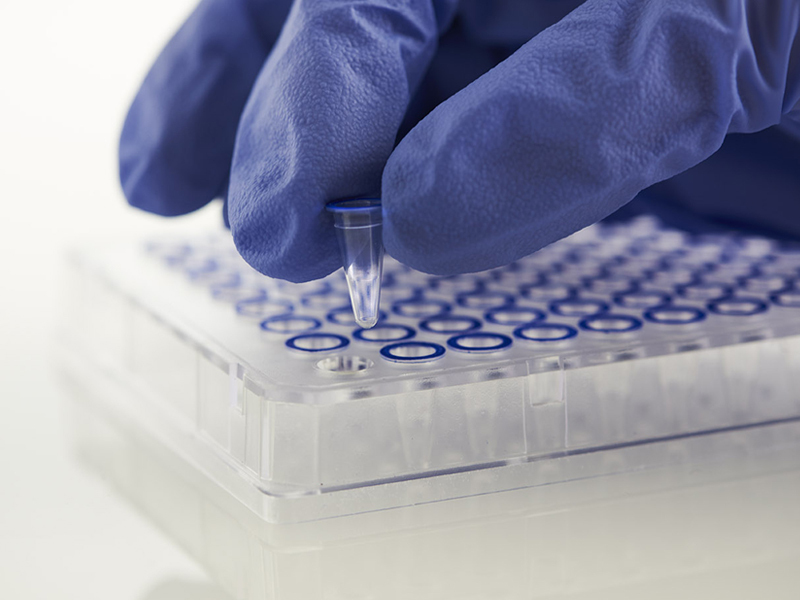

  • We also offer customization of the Individual Access Plates such as color coding of the individual wells; please contact an expert for details
Specifications
Individual Access 96 Well Skirted PCR Plate
Plate length127.76 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height15.50 ± 0.25mm
Well depth15.10 ± 0.10mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Distance to center of A1 from top edge11.24 ± 0.25mm
Distance to center of A1 from left edge14.38 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Robocycler Gradient
  • qPCR Cyclers (96 well block): AriaMx
BIO-RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TECHNE
  • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
  • qPCR Cyclers (96 well block): Quantica

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

Individual Access 96 Well Skirted PCR Plate
Low profile, individually removable 0.1ml polypropylene wells, rigid polycarbonate frame, cut corner H1, working volume: <100µl, total well capacity: 200µl
4ti-0960/RAclear wells, white frame; 50 plates
4ti-0960/RA-Fwhite frame (no wells, frame only); 10 frames
