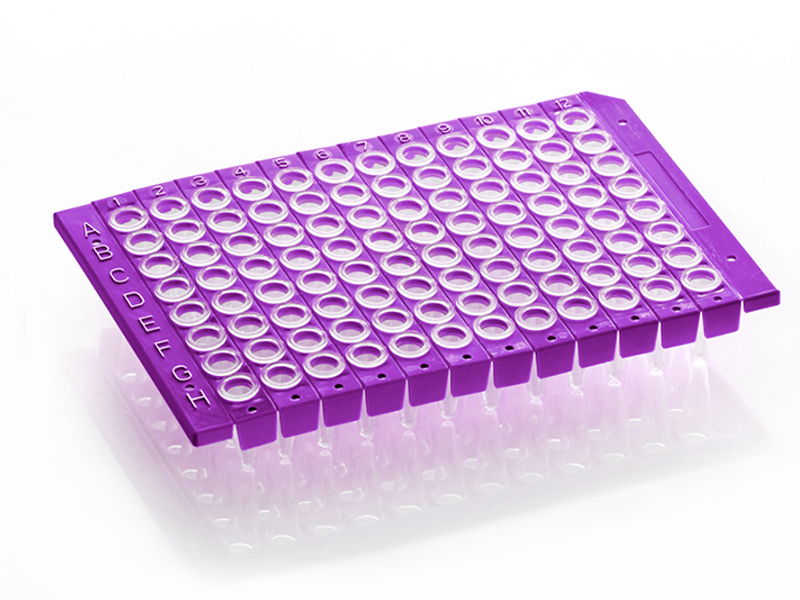

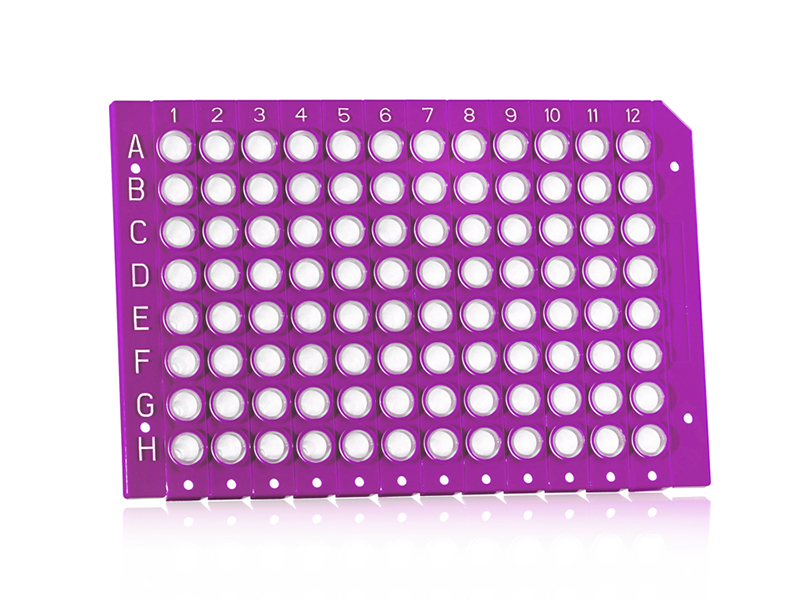

FrameStar® Breakable Vertically PCR Plate, Low Profile

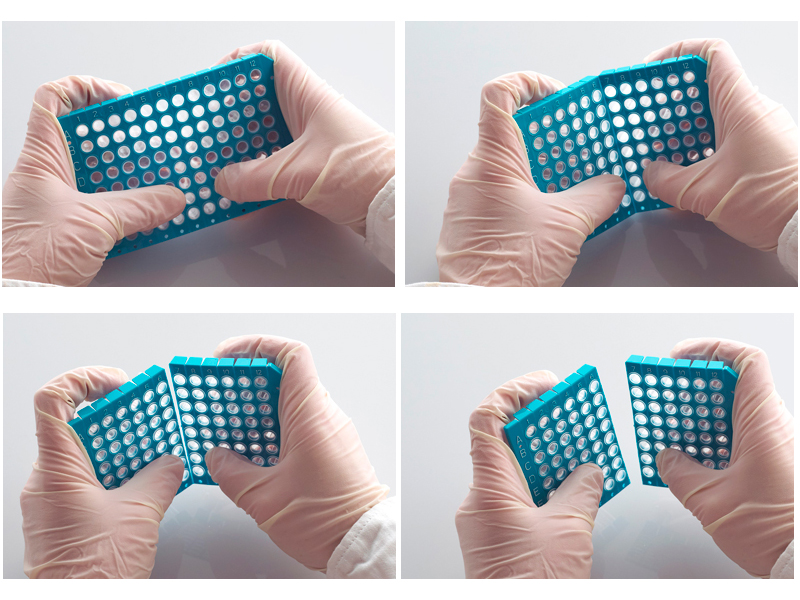

96 well semi-skirted plates, vertically scored, snap easily into 8-well strips or part plates. Designed to allow for a flexible, efficient and cost-effective use of a PCR plate. Low profile wells, recommended for reaction volumes <20µl.

  • PP wells, PC frame; cut corner A12
  • <100µl working volume, 200µl total well capacity
  • Available 2D coded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • 2-component design prevents distortion of tube strips
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options
  • Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
  • Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
  • End tabs for easy handling and labeling
  • Eliminates strip breakage
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Rigid PCR plate that can be broken into smaller plate sections
  • Fits majority of thermal cyclers
  • Compatible with standard multichannel pipette
Options
  • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
  • Also available as a black frame with white wells for use with optical assays such as qPCR
  • Also available as FrameStar Breakable Vertically PCR Plate (0.2ml well capacity option)
  • 2D coding option; learn more about our barcoding options
Specifications
FrameStar Breakable Vertically PCR Plate, Low Profile
Plate length125.11 ± 0.25mm
Plate width83.22 ± 0.25mm
Plate height15.60 ± 0.25mm
Well depth15.10 ± 0.10mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Distance to center of A1 from top edge10.11 ± 0.25mm
Distance to center of A1 from left edge13.06 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well FAST block): GeneAmp® 9800 FAST | Verity FAST
  • qPCR Cyclers (96 well standard block): StepOne
  • qPCR Cyclers (96 well FAST block): 7500 FAST | 7900 HT FAST | ViiA7™
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Robocycler Gradient
  • qPCR Cyclers (96 well block): AriaMx
BIO RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/ 240™
  • qPCR Cyclers (strips only): MiniOpticon
  • qPCR Cyclers (96 well block): Opticon2™
EPPENDORF
  • Thermal Cyclers (strips only): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/ X2e
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
  • Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TAKARA
  • Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
  • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
  • qPCR Cyclers (96 well block): Quantica

FrameStar Breakable Vertically PCR Plates, Low Profile are not compatible with the ABI 9700 dual block thermal cycler.

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

FrameStar Breakable Vertically PCR Plate, Low Profile
96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume: <100µl, total well capacity: 200µl
4ti-1200/Pclear wells, purple frame; 50 plates
4ti-1200/Bclear wells, blue frame; 50 plates
4ti-1200/Cclear wells, clear frame; 50 plates
4ti-1200/Gclear wells, green frame; 50 plates
4ti-1200/Rclear wells, red frame; 50 plates
4ti-1200/Wclear wells, white frame; 50 plates
4ti-1200/Xclear wells, black frame; 50 plates
4ti-1201white wells, black frame; 50 plates

2D coding is available for this product. Contact an expert for more information or read more about 2D coding.
