FrameStar® 96 Well Semi-Skirted PCR Plate, Roche Style

96 well semi-skirted plates designed for use on Roche LightCycler® 96 & 480 (with 96 well block). Low profile wells, especially recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.

  • PP wells, PC frame; cut corner H12
  • <100µl working volume, 200µl total well capacity
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
BUY ONLINE*

*Online availability to US only

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
  • Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
  • Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Compatible with the Roche LightCycler® 96 and 480 (with 96 well block)
  • Recommended for low volume PCR
  • Ideal for use with robotic systems
  • Compatible with standard multichannel pipettes
Options
  • Standard plate comes with clear polypropylene wells on a clear polycarbonate frame
  • Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
  • Available barcoded upon request; learn more about our barcoding options
  • Combi packs available with qPCR Seal (4ti-0560) and (for 4ti-0951) with Optically Clear Windowed qPCR Seal (4ti-0564)
Specifications
FrameStar 96 Well Semi-Skirted PCR Plate, Roche Style
Plate length127.76 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height10.60 ± 0.25mm
Well depth9.60 ± 0.10mm
Well diameter3.00 ± 0.10mm
Total well capacity55µl
Working volume<30µl
Distance to center of A1 from top edge8.99 ± 0.25mm
Distance to center of A1 from left edge12.13 ± 0.25mm
Pitch (distance between A1 and A2)4.50mm
Compatibility
ROCHE
  • qPCR Cyclers (96 well block): LC96 | LC480

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

FrameStar 96 Well Semi-Skirted PCR Plate, Roche Style
Low profile, 0.1ml polypropylene wells, polycarbonate frame, cut corner H12; working volume: <100µl, total well capacity: 200µl; designed for use on Roche LightCycler® 96 and 480 (with 96 well block)

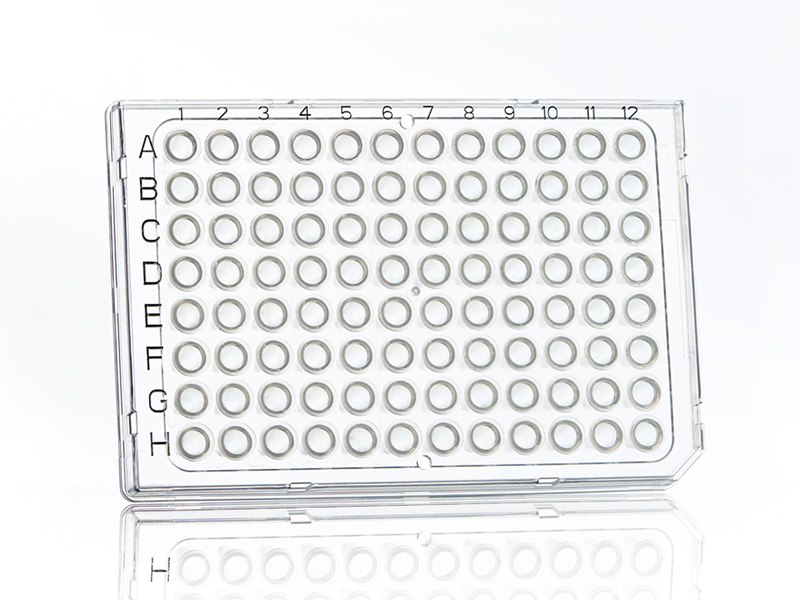

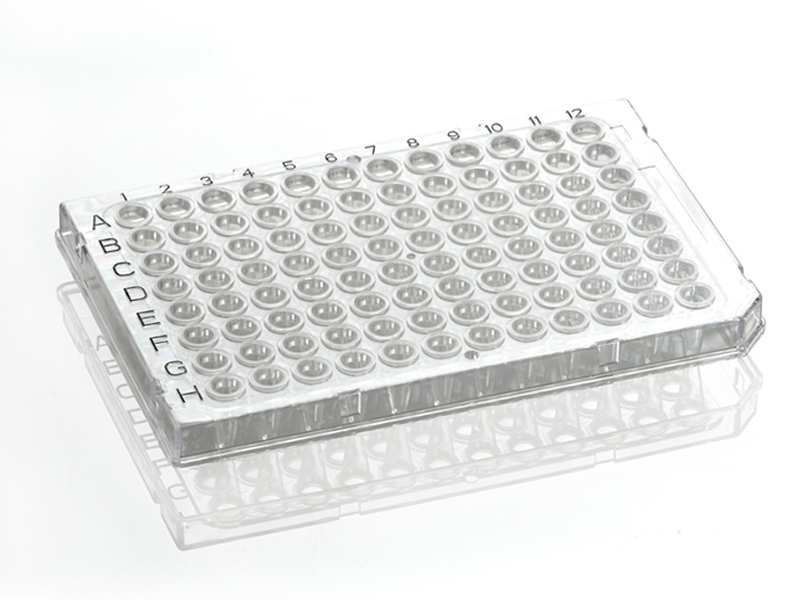

4ti-0950/Cclear wells, clear frame; 50 plates

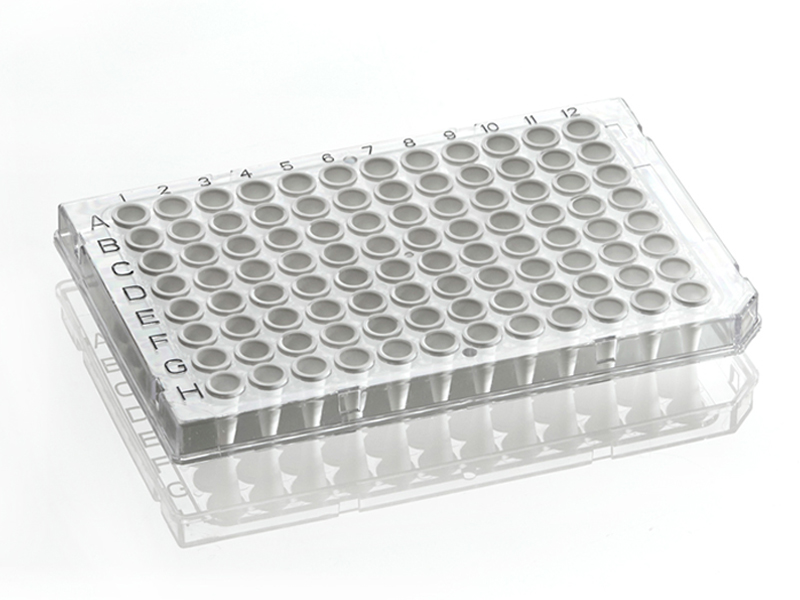

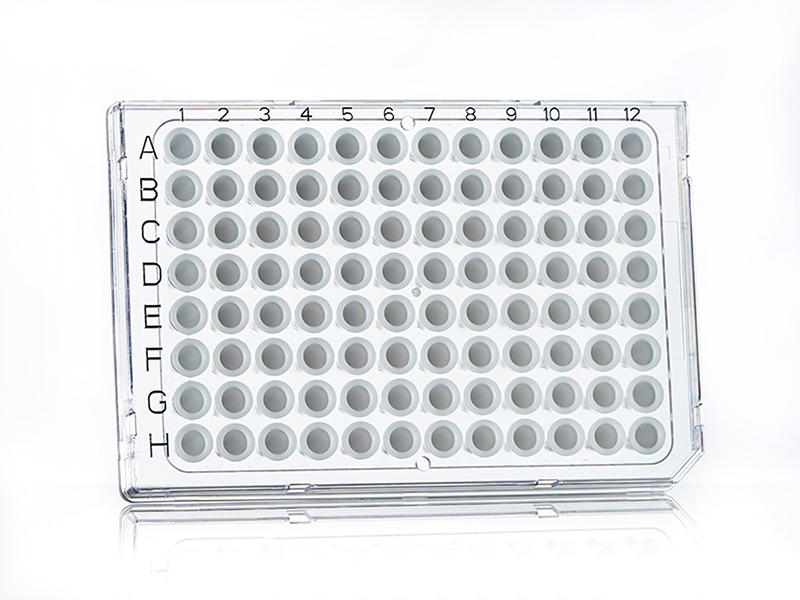

4ti-0951white wells, clear frame; 50 platesBUY ONLINE*
Combi Packs
4ti-09524ti-0951 + qPCR Seal (4ti-0560); 50 plates + 50 seals
4ti-09534ti-0950/C + qPCR Seal (4ti-0560); 50 plates + 50 seals
4ti-0951/05654ti-0951 + Optically Clear Windowed qPCR Seal (4ti-0565); 50 plates + 50 seals

*Online availability to US only
