FrameStar® 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style

96 well semi-skirted plates designed for use on ABI® Fast Block thermal cyclers. Low profile wells, especially recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.

  • PP wells, PC frame; cut corner A1
  • <100µl working volume, 200µl total well capacity
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Stackable
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
  • Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
  • Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Compatible with ABI® Fast block thermal cyclers
  • Recommended for low volume PCR
  • Compatible with standard multichannel pipettes
  • Ideal for use with robotic systems
Options
  • Standard plate comes with clear polypropylene wells with a clear polypropylene frame
  • Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
  • Also available as a clear frame with frosted wells for use with ABI®/LifeTechnologies® qPCR instruments
  • Combi packs available (for 4ti-0910/C) with Optically Clear Windowed qPCR Seal (4ti-0565)
  • Available barcoded upon request; learn more about our barcoding options
Specifications
FrameStar 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style
Plate length127.70 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height16.70 ± 0.25mm
Well depth15.10 ± 0.10mm
Well diameter5.50 ± 0.10mm
Total well capacity0.2ml (200µl)
Working volume<0.1ml (100µl)
Distance to center of A1 from top edge11.24 ± 0.25mm
Distance to center of A1 from left edge14.38 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well FAST block): GeneAmp® 9800 FAST | Verity FAST
  • qPCR Cyclers (96 well FAST block): StepOne Plus™ | 7500 FAST | 7900 HT FAST | QuantStudio™ 5/6/7/12K | ViiA7™
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

FrameStar 96 Well Semi-Skirted PCR Plate, ABI® FastPlate Style
Low profile, 0.1ml polypropylene wells, polycarbonate frame with upstand, cut corner A1, working volume: <100µl, total well capacity: 200µl; designed for use on ABI® Fast Block cyclers

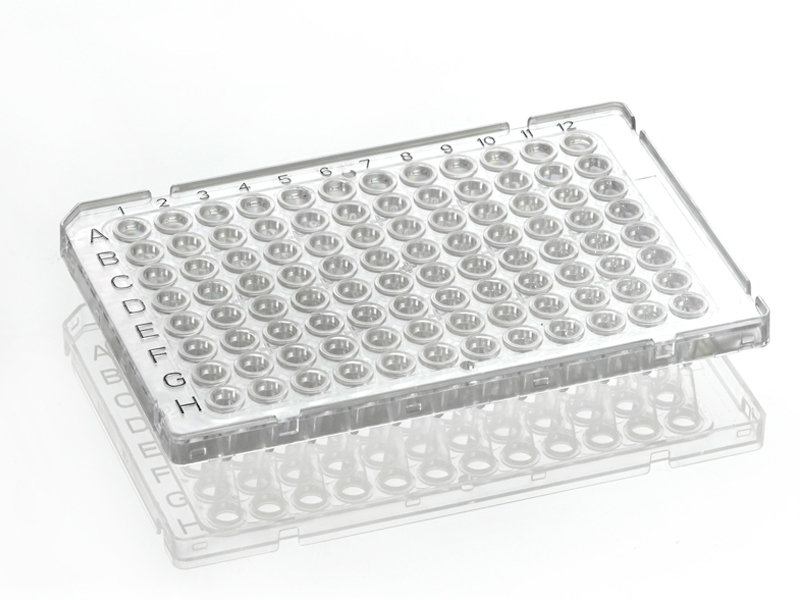

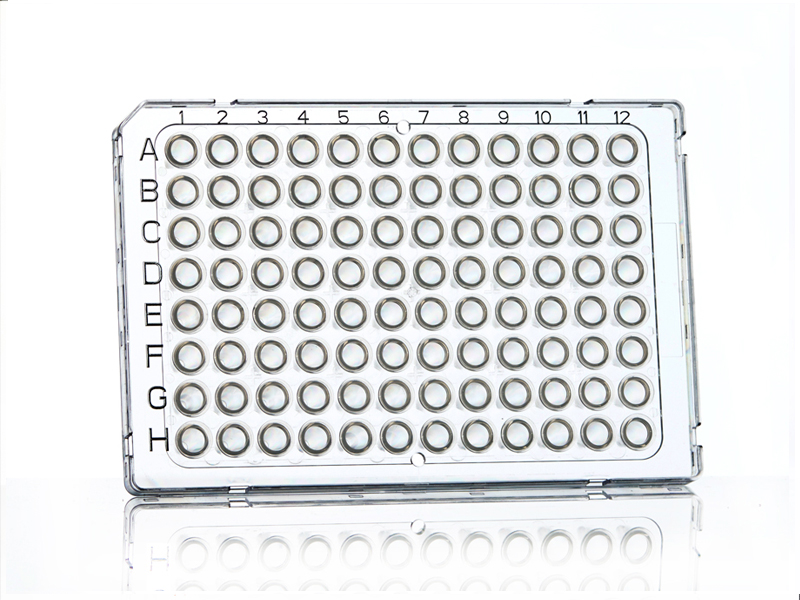

4ti-0910/Cclear wells, clear frame; 50 plates
4ti-0910/C/10Pclear wells, clear frame; 10 plates

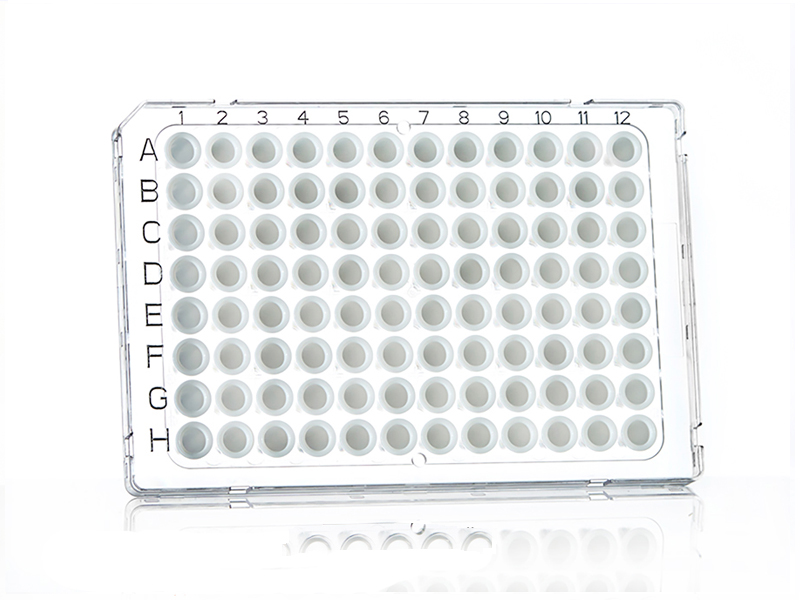

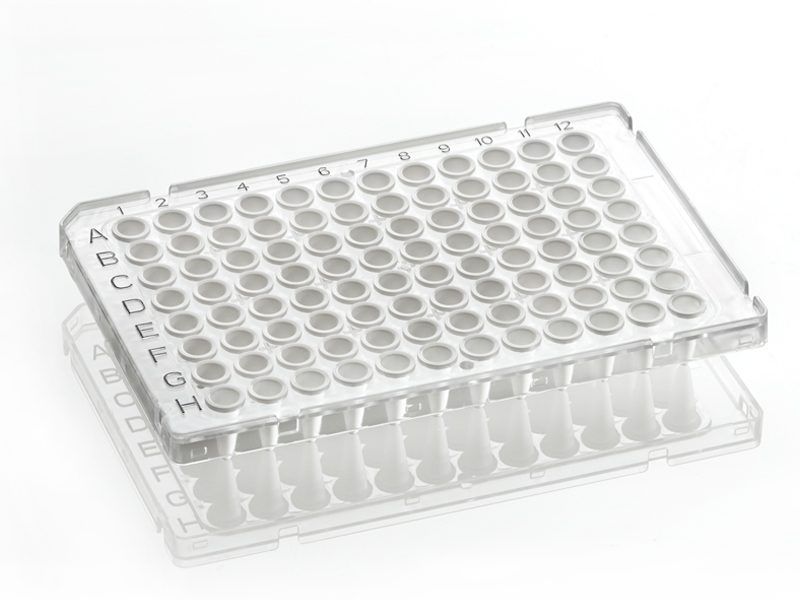

4ti-0911white wells, clear frame; 50 plates

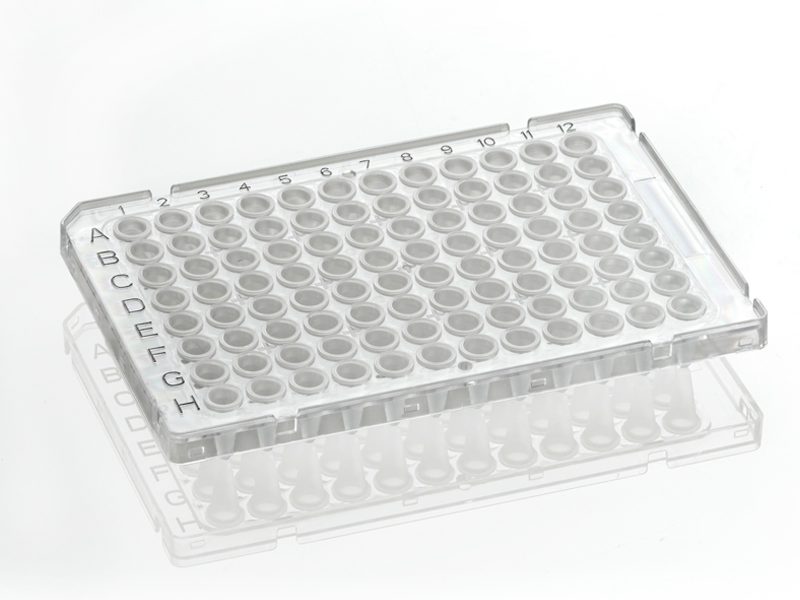

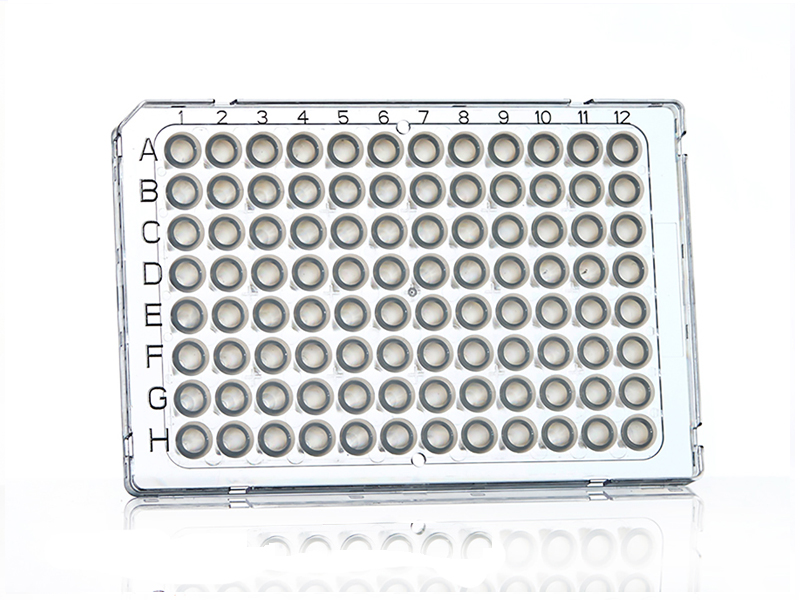

4ti-0912frosted wells, clear frame; 50 plates
4ti-0912/10Pfrosted wells, clear frame; 10 plates
Combi Packs
4ti-0910/C/05654ti-0910/C + Optically Clear Windowed qPCR Seal; 50 plates + 50 seals
