FrameStar® 96 Well Non-Skirted PCR Plate

96 well non-skirted universal plates with standard profile wells, designed for use on all major thermal cyclers. Rigid frame eliminates warping and distortion during PCR.

  • PP wells, PC frame; cut corner H1
  • <200µl working volume, 300µl total well capacity

Want to request a quote, free samples, or to contact an expert?

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame
  • Alphanumeric grid reference to aid well and sample identification
Use
  • Recommended for low volume PCR
  • Compatible with standard multichannel pipettes
Options
  • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red
  • Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
Specifications
FrameStar 96 Well Non-Skirted PCR Plate
Plate length120.00 ± 0.25mm
Plate width80.00 ± 0.25mm
Plate height20.70 ± 0.25mm
Well depth20.20 ± 0.10mm
Well diameter5.46 ± 0.10mm
Total well capacity0.3ml (300µl)
Working volume<0.2ml (200µl)
Distance to center of A1 from top edge8.50 ± 0.25mm
Distance to center of A1 from left edge10.50 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Compatibility
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
  • Thermal Cyclers (96 well standard block): GeneAmp® 2700/2720/9600/9700
  • qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT
  • Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
  • qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler 2 (SP, SPR)
    • qPCR Cyclers (96 well block): qTower™/G/touch | Toptical
    BIOER TECHNOLOGIES
    • Thermal Cyclers (96 well block): Gene Touch 96
        BIO-RAD
        • Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
        • qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5

              BIO-RAD MJ RESEARCH
              • Thermal Cyclers (96 well block): Personal | PTC100™/200™/220™/221™/225™/240™
              • qPCR Cyclers (96 well block): Chromo4™

                    CORBETT RESEARCH
                    • Thermal Cyclers (96 well block): (Quiagen) Palm Cycler

                              EPPENDORF
                              • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
                              • qPCR Cyclers (96 well block): Mastercycler™ ep realplex

                                      PEQLAB/VWR
                                      • Thermal Cyclers (96 well block): peqSTAR 96X

                                                SENSOQUEST
                                                • Thermal Cyclers (96 well block): Labcycler

                                                          TAKARA
                                                          • Thermal Cyclers (96 well block): Dice touch | Gradient

                                                                    TECHNE
                                                                    • Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene

                                                                              For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

                                                                              Ordering Information

                                                                              Part Numbers

                                                                              Use these part numbers to request a quote, a demo, or to contact an expert:

                                                                              FrameStar 96 Well Non-Skirted PCR Plate
                                                                              Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal non-skirted plate designed for use on all major thermal cyclers

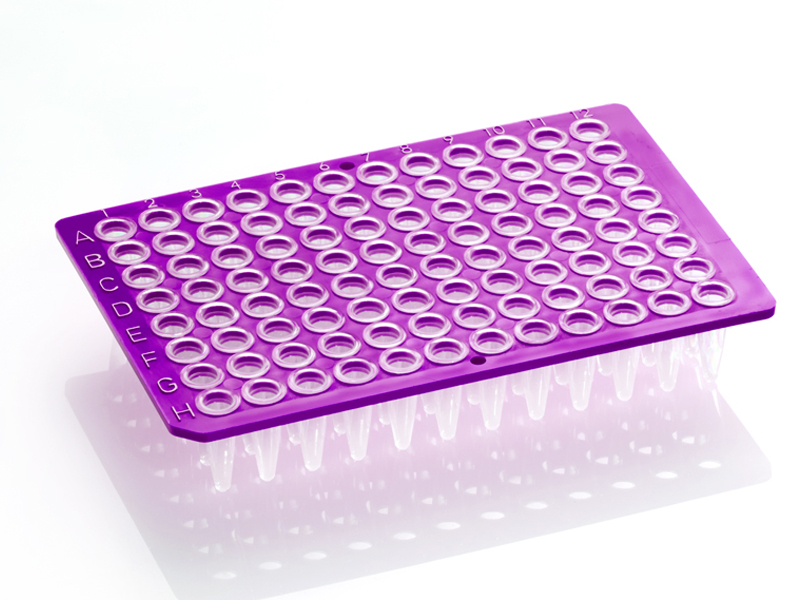

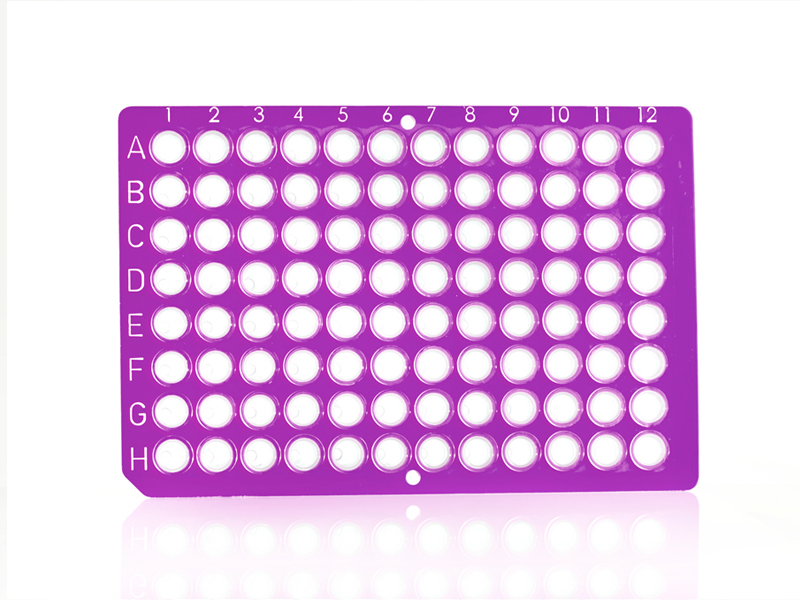

                                                                              4ti-0710clear wells, purple frame; 50 plates

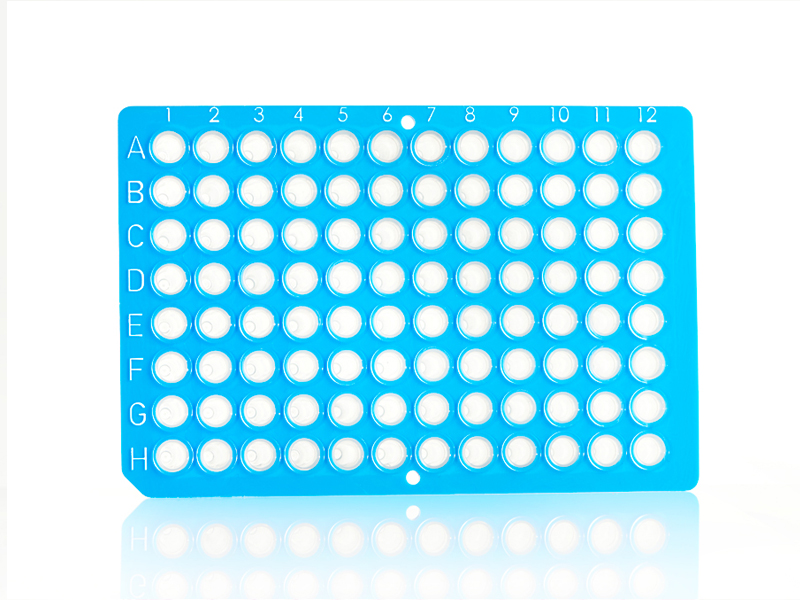

                                                                              4ti-0710/Bclear wells, blue frame; 50 plates

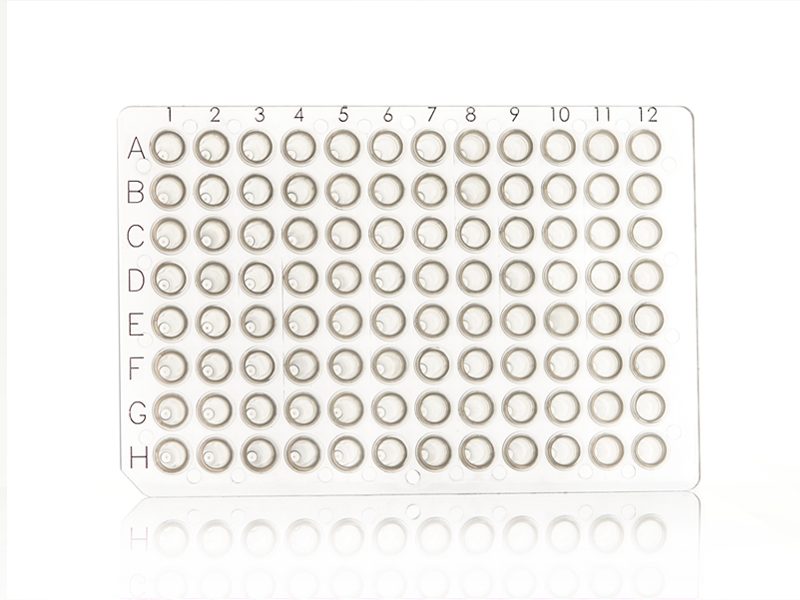

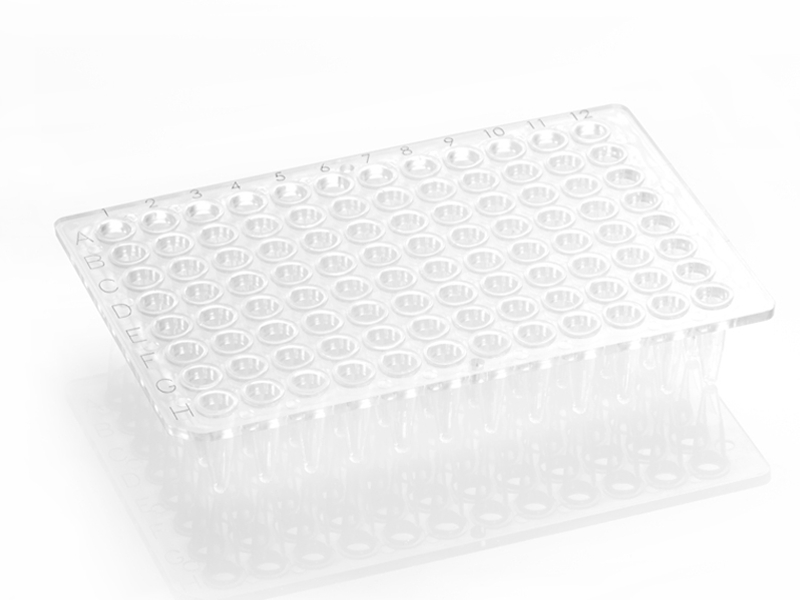

                                                                              4ti-0710/Cclear wells, clear frame; 50 plates

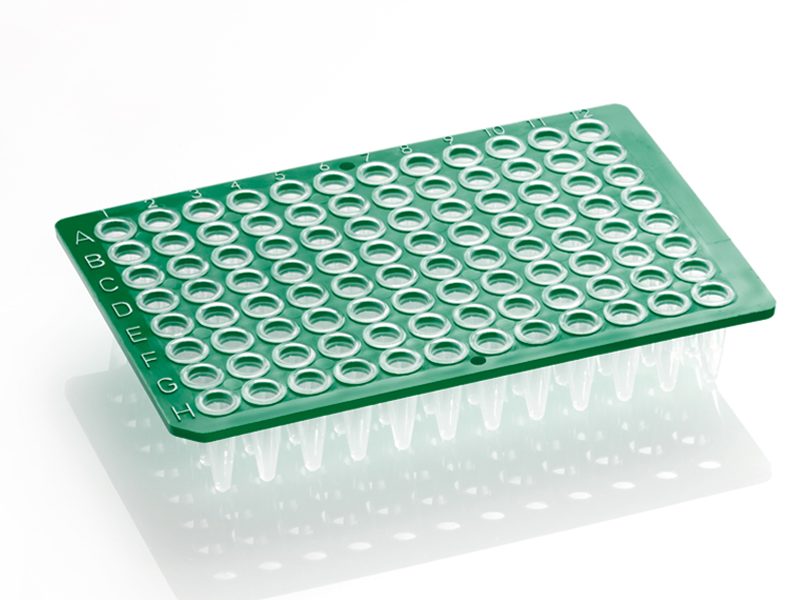

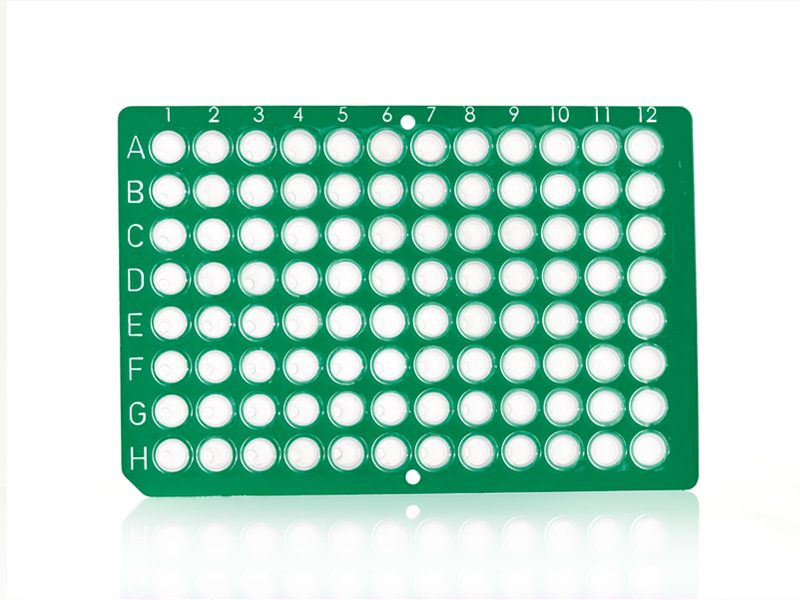

                                                                              4ti-0710/Gclear wells, green frame; 50 plates
                                                                              4ti-0710/Rclear wells, red frame; 50 plates

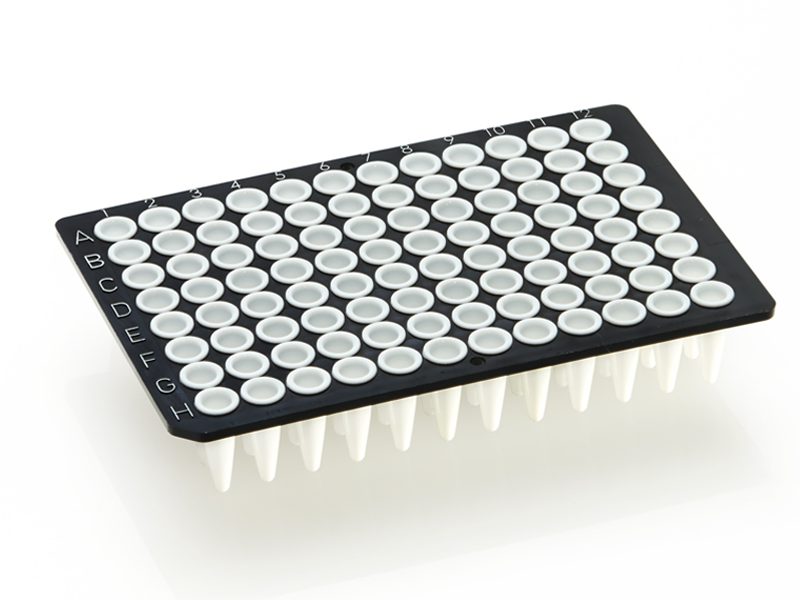

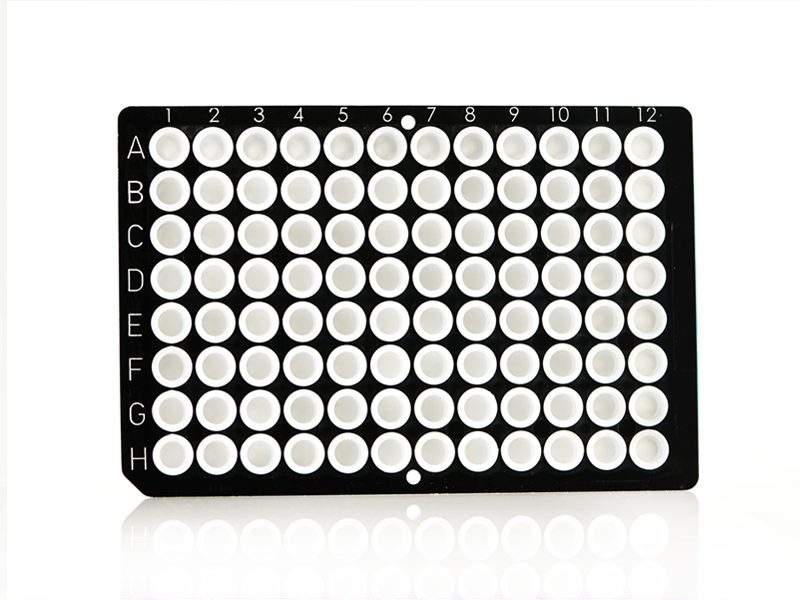

                                                                              4ti-0711white wells, black frame; 50 plates
