Foil Heat Seal

Heat sealing aluminum foil that seals to polypropylene and polystyrene plates. Fit for low temperature compound storage in DMSO and organic solvents.5

  • Pierceable, peelable, resealable
  • Moderate solvent resistance
  • Available in sheet and roll format

Want to request a quote, free samples, or to contact an expert?

Place a Request
BUY ONLINE*

*Online availability to US only

Product Details

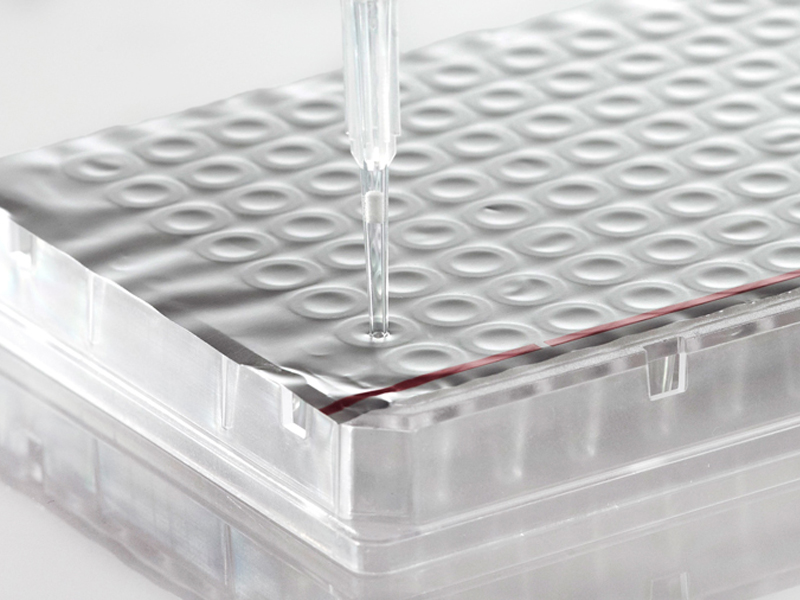

Our Foil Heat Seal is compatible with polypropylene and polystyrene plates. This seal demonstrates moderate solvent resistance and can be used for low temperature compound storage in DMSO and organic solvents and short term room temperature storage. The Foil Heat Seal can be pierced with a pipette tip, manually or by liquid handling robots, or it can be removed by peeling. It can be resealed by applying another Foil Heat Seal directly on top of a previously pierced seal.

This seal is available as sheets, for use with manual and semi-automated sealers, such as our Semi-Automated Sheet Heat Sealer. Also available in multiple roll formats compatible with specified automated heat sealers, such as our Automated Roll Heat Sealer.

A red stripe on the sheet foils clearly indicates the non-sealing surface, for ease of seal orientation and handling.

Key Features

Quality & Properties
  • Pierceable
  • Peelable
  • Resealable
  • Seal integrity range: -20°C to 110°C
  • Moderate solvent resistance
  • Autoclavable (121°C)
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Use
  • Seals polypropylene and polystyrene plates
  • Suitable for short term storage
Options
  • Sheet format: 125 x 78mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates, from 12 well to 1536 well
  • Roll format: available in a variety of roll dimensions, to suit your choice of automatic heat sealing equipment
  • Non-sterile as standard; sterilization available upon request
Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

Foil Heat Seal
Aluminum heat sealing foil, resealable, peelable, pierceable; suitable for compound storage, PCR
4ti-0535roll (610m x 78mm, approx. 5,000 seals)¹; 1 rollBUY ONLINE*
4ti-0535/122roll (122m x 78mm, approx. 1,000 seals)¹; 1 roll
4ti-0535/REMProll (610m x 78mm, approx. 5,000 seals)³; 1 roll
4ti-0535/Ssample roll (5m x 78mm)¹; 1 sample roll
4ti-0537roll (500m x 115mm, approx. 6,200 seals)²; 1 roll
4ti-0537/REMProll (500m x 115mm, approx. 6,200 seals)⁴; 1 roll
4ti-0537/Ssample roll (5m x 115mm)²; 1 sample roll
4ti-0536sheets (125mm x 78mm); 100 sheetsBUY ONLINE*

*Online availability to US only

¹Compatible with our Automated Roll Heat Sealer / Thermo Fisher ALPS 300™ and ALPS 3000™ / KBiosystems Wasp™ / KBioscience FlexiSeal and Cube

²Compatible with Agilent (Velocity 11) PlateLoc®

³Compatible with REMP Portrait Heat Sealer (PHS)

⁴Compatible with REMP Landscape / Stacking Heat Sealers (LHS/SHS)
