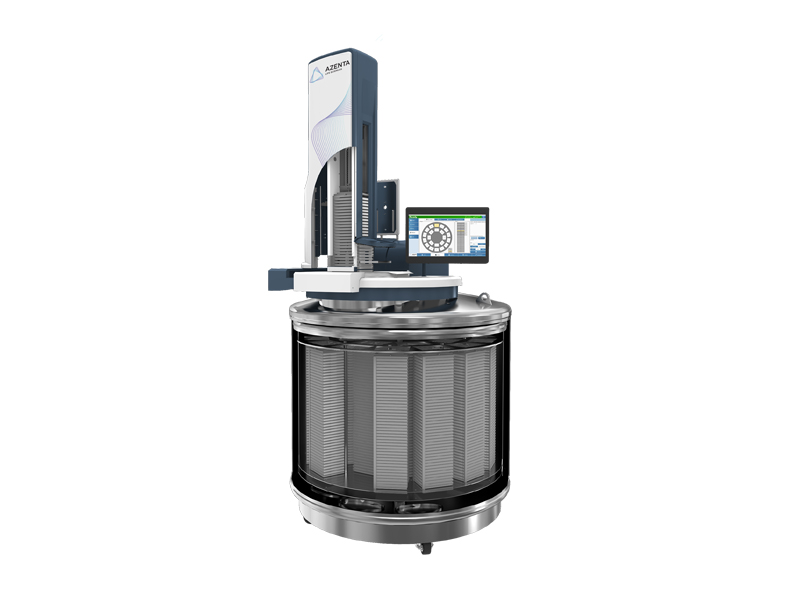

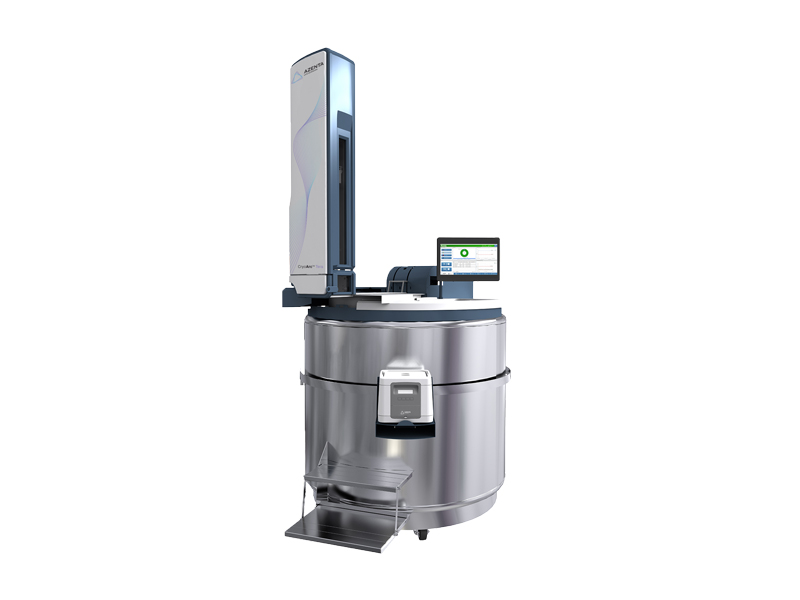

CryoArc™ Tera -190°C LN2-Based Automated Storage System
CryoArc Tera -190°C LN2-Based Automated Storage System is a fully automated liquid nitrogen based system capable of handling a wide range of cryo containers, including a version for clinical use that holds 250ml cryo cassettes.
- Fully integrated inventory management
- Reports to support 21-CRF-11 compliance
- 21 days of emergency hold time
- Cryobox and cassette versions available
Want to request a quote, or to contact an expert?
Product Details
The CryoArc Tera -190°C LN2-Based Automated Storage System combines the sample protection, safety, and accessibility of a high-efficiency LN2 freezer with advanced automation features. The CryoArc Tera offers advanced features such as real-time inventory control, cold-chain management, and significantly improved customer experience compared to manual access freezers. As a result, the CryoArc Tera enhances sample management and reliability, setting a new standard for automated storage solutions in the industry. The standard version of Tera holds cryotubes and 25ml or 50ml cassettes, fitting up to 630 2” cryoboxes or equivalent.
As cellular therapy products move from discovery through clinical trial and commercialization phases, many companies are standardizing 250ml cryobags for storage and delivery of high-value product. The CryoArc Tera -190°C LN2-Based Automated Storage System for Cryo Cassettes brings simple, automated management for 250ml cryo cassettes to the market for the first time, enabling users to avoid the risk of errors and variability inherent in manual inventory handling. The addition of automated tracking and handling for 250mL cryo cassettes marks a significant enhancement to the CryoArc product line.
Key Features
Sample Integrity, Security & Tracking
- Consistent -190°C temperatures achieved for from top to bottom using LN2 vapor
- Integrity is further enhanced by protecting innocent samples during storage and retrieval transient exposures
- Racks are quickly pulled into an insulated sleeve, significantly slowing transient warming
- 21-day safety hold time below -135°C (Tg) with full manual access if power or LN2 are disrupted
- Comprehensive inventory management with vial-level ID, audit trail, reports, and LIMS connectivity
Software
- CryoArc controller software and touchscreen enable efficient order management and execution
- Its easy-to-use graphical interface permits tube-level inventory management plus sample storage, retrieval, and auditing
- The software monitors storage environment data and has comprehensive error handling
- LIMS connectivity is available for real-time sample management
- Full 21-CFR-11 reporting capability is available
- Administrator-defined libraries and access control can optimize the system as a shared resource
Specifications
| CryoArc Tera | CryoArc Tera for Cassettes | |
|---|---|---|
| Dimensions (H X W X D) | 3,175 x 1,524 x 2,007mm 125.00’’ x 60.00” x 79.00’’ | 3,179 x 1,524 x 2,007mm 125.1’’ x 60.00” x 79.00’’ |
| Storage capacity | 630 x 2’’ cryoboxes or equivalent | 990 x 250ml cryo cassettes |
| Weight (empty) | 1,149kg 2,552lbs | 1,105kg 2,433lbs |
| Weight (full) | 2.061kg 4,538lbs | 1,563kg 3,441lbs |
| Maximum floor load | 665kg/m2 136lbs/ft2 | 512kg/m2 105lbs/ft2 |
| Maximum point load (4-points) | 403kg (887lbs) | 403kg 887lbs |
| Voltage | 220V, single phase (110V single phase) | 220V, single phase (110V single phase) |
| Amps | 2A (1A) | 2A (1A) |
| Power output (idle) | 100 Watts | 100 Watts |
| Power output (MAX) | 220 Watts | 220 Watts |
| Plug type | CEE 7/4 (NEMA 5-15) | CEE 7/4 (NEMA 5-15) |
| LN2 | (IEC TYPE F) (IEC TYPE B) | (IEC TYPE F) (IEC TYPE B) |
| Connection type / size | 1/2” NPT female fitting to existing vacuum jacket line | 1/2” NPT female fitting to existing vacuum jacket line |
| Supply pressure (open valve) | 1.52-2.41bar (22-35 psig) | 1.52-2.41bar (22-35 psig) |
| Capacity (vapor phase) | 295L | 295L |
| Static evaporation rate (nominal) | 13.6L/day (11.00kg/day) | 13.6L/day (11.00kg/day) |
| Static holding time vapor | 21 days | 21 days |
| Operating temperature | -190°C or lower -310°F or lower | -190°C or lower -310°F or lower |
| Operating environment temperature | 18°C-27°C 65°F-80°F | 18°C-27°C 65°F-80°F |
| Operating environment humidity | Max 50% rH (non-condensing) | Max 50% rH (non-condensing) |
| Warranty | 1-Year; includes onsite service, travel, and spare parts. Preventative maintenance and wear parts not included. | 1-Year; includes onsite service, travel, and spare parts. Preventative maintenance and wear parts not included. |
| Other | Installation and operator training included | Installation and operator training included |
| Regulatory compliance | China RoHS, Conflict Materials, EU REACH, EU RoHS, CE Mark Directives [Machinery Directive, EMC Directive, and RoHS Directive] | China RoHS, Conflict Materials, EU REACH, EU RoHS, CE Mark Directives [Machinery Directive, EMC Directive, and RoHS Directive] |
Remote Monitoring
With Azenta cryo freezers, you have the ability to remotely monitor the status of your freezers 24/7 in real time. You can log in to the Azenta cryo monitoring portal from anywhere (including via mobile) to see the dashboard, view performance metrics, or request support or service.
- Monitor all freezers from one interface
- Get text or email alert notifications if conditions change
- View key parameter charts and detailed equipment temperature history
- Download reports for custom date ranges
Sign up at monitor.azenta.com and log in anytime for easy access.
