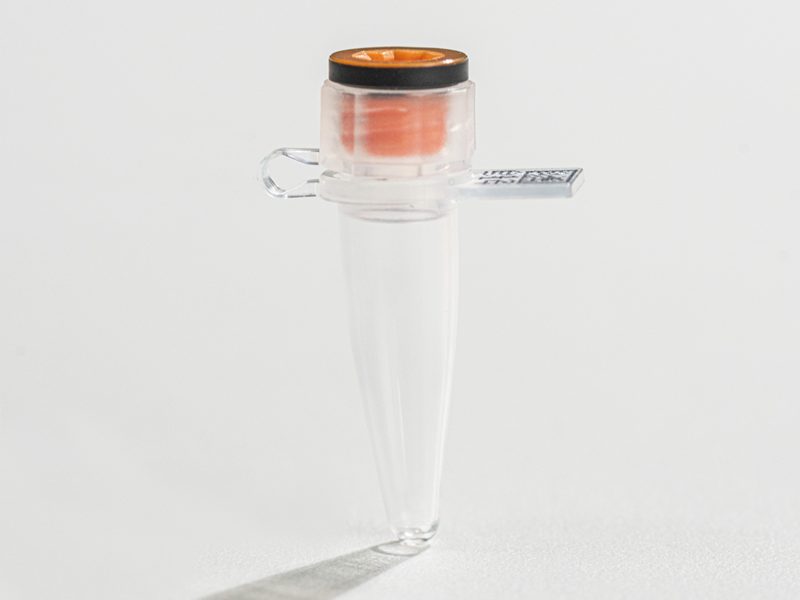

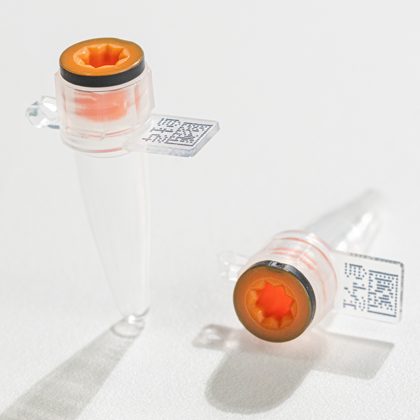

Cap2™ 0.2ml Dual-Cap Sample Collection PCR Tube

A unique PCR tube featuring a dual-cap mechanism, 2D datamatrix code and human readable identification. Innovative features allow for sample collection/transport that can be directly processed for analysis, ideal for genetic testing workflows.

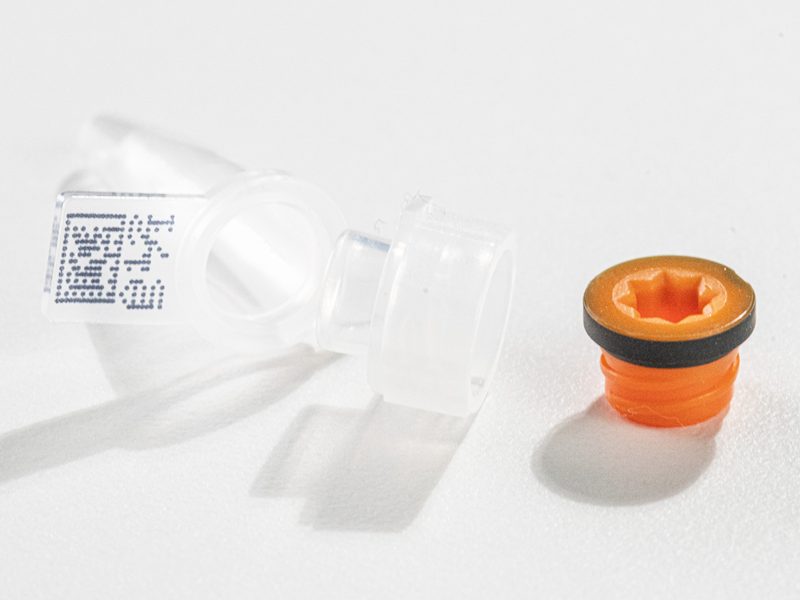

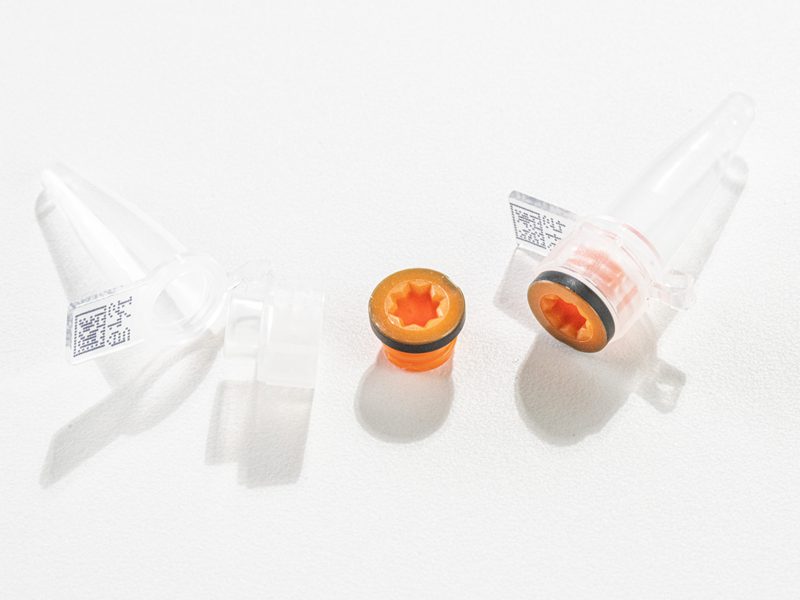

  • Dual-cap design with hinged lid and screw cap
  • 2D code and human readable number
  • Capability to work with automation

Want to request a quote, a demo, or to contact an expert?

Place a Request
Overview

A unique PCR tube featuring a patent pending dual-cap mechanism, 2D datamatrix code as well as a human readable identification, allowing for wide-ranging workflow versatility. Innovative features allow for utilization as a consumable suitable for sample collection/transport that can be directly processed for analysis, ideal for genetic testing workflows.

The quality Cap2 0.2ml PCR tubes from Azenta Life Sciences are free from DNase, RNase, human genomic DNA, and endotoxins/pyrogens. Azenta Life Sciences offer quality 0.2ml PCR tubes which are free from DNase, RNase, human genomic DNA, and endotoxins/pyrogens. The polypropylene, ultra-thin walled, low DNA binding tubes also make for optimum PCR results as well as mitigation against DNA loss from samples. The novel cap-in-cap design features a hinged lid and automation friendly screw cap, offering flexibility for use in manual workflows, alongside mitigating against contamination, as well as workflow scale up capabilities and consumable consolidation. This unique solution to error-prone, slow and labor-intensive workflows offers a flexible, scalable solution for PCR and genetic testing applications.

Key Features

Quality Tubes
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Leak tested
  • 0.2ml (200µl) total well capacity
  • Polypropylene, ultra-thin walled, low DNA binding tubes make for optimum PCR results and mitigation against DNA loss from samples
Sample Identification

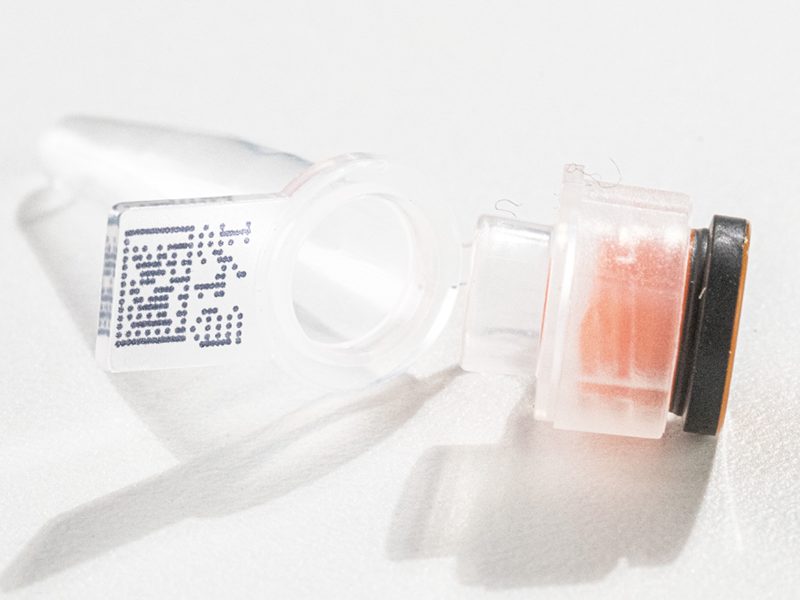

  • Tab on side of cap includes a 2D datamatrix code and human readable number
  • Tab on collar of hinged lid makes for quick and secure sample tracking
Application & Workflow Flexibility

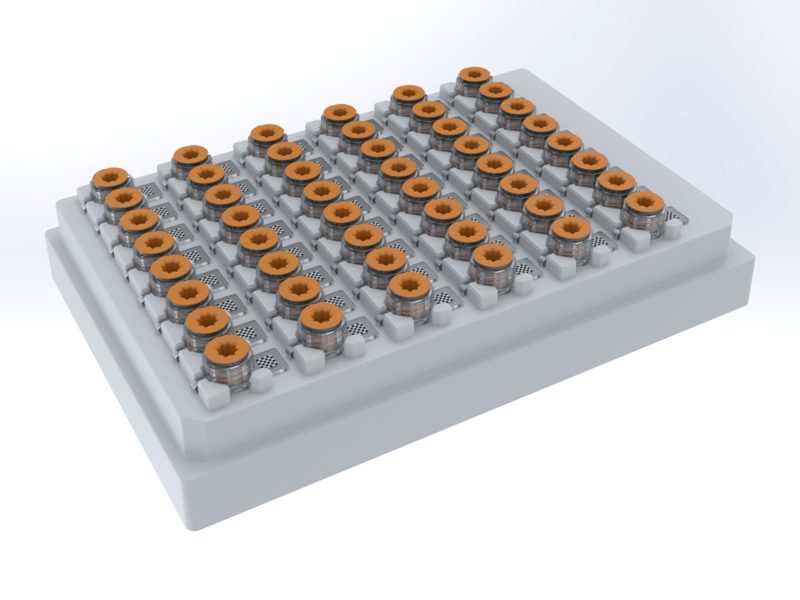

  • Capability to work with automation, tubes are compatible with 48-format SBS footprint rack, see Ordering Information for part number
  • Hinged lid allows for flexibility for use in manual workflows, alongside mitigating against contamination
  • Screw cap using Azenta Life Sciences Acoustic technology enables workflow scale up capabilities and consumable consolidation
  • PCR tube with patent pending cap-in-cap design, sample identifiers and automation friendly capabilities offer a flexible, scalable solution
Specifications
 Cap2 0.2ml Dual-Cap Sample Collection PCR Tube
Well depth19.45 ± 0.10mm
Total well capacity0.2ml (200µl)
Pitch (distance between A1 and A2)9.00mm
Ordering Information

Part Numbers

Cap2 0.2ml Dual-Cap Sample Collection PCR Tube
Clear polypropylene, attached flip cap with orange screw cap, 2D code and human readable number on tab
4ti-0791Cap2 0.2ml Dual-Cap Sample Collection PCR Tube; 500 tubes
4ti-037448-format SBS Rack for use with 4ti-0791 PCR Tubes; 10 racks

Use these part numbers to request a quote, a demo, or to contact an expert:
