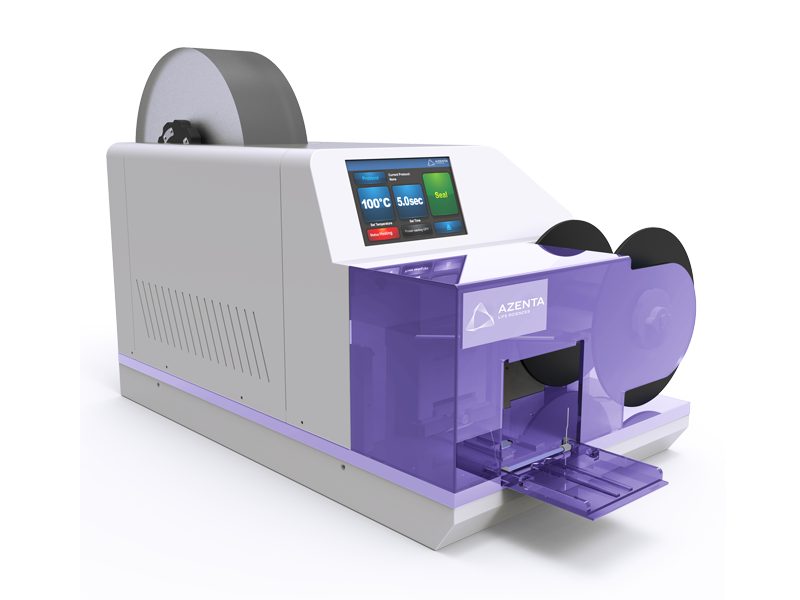

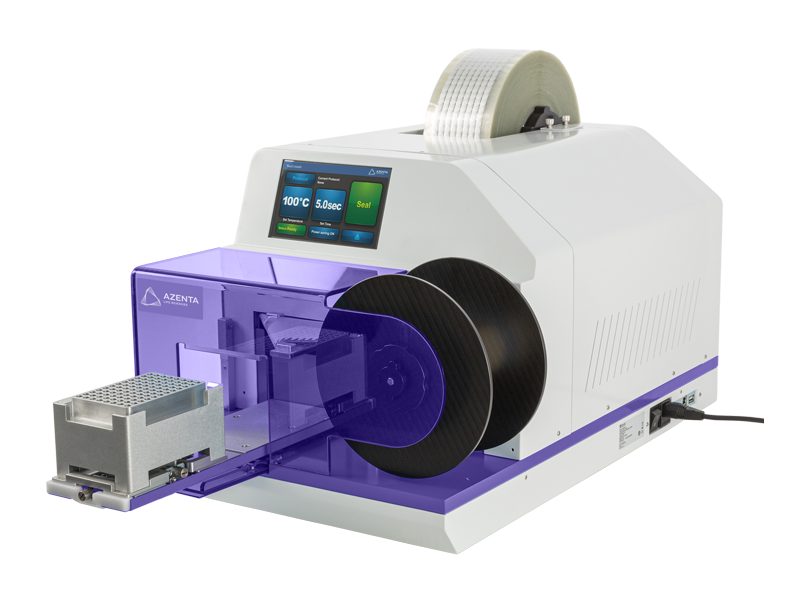

Automated Individual Access Roll Heat Sealer

This automated microplate sealer can seal individual wells or tubes, enabling researchers to leverage the benefits of the Individual Access plates and seals while maintaining the gold standard heat sealing provided by the Automated Plate Sealer.

  • Individual sealing of plate wells or tubes
  • No compressed air required
  • Advanced automation for increased throughput
  • Compatible with a wide range of plates and seals

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

An automated roll heat sealer capable of sealing individual wells or tubes, enabling researchers to leverage the benefits of the Azenta Individual Access range whilst maintaining the gold standard heat sealing provided by the Automated Roll Heat Sealer. Individual sealing allows for selection and removal of tubes from the plate, and is a flexible solution with the ability to seal custom shapes with custom seals.

The sealer’s rapid heating element enables a fast start-up, and the power saving mode saves energy when the unit is not in use. As the unit does not require the use of compressed air, this enables greater flexibility in lab use, whether standalone or integrated. Plates and racks are presented in portrait format and the position on the shuttle allows good access for robotic integration.

Key Features

Easy Handling
  • Color touch screen with intuitive user interface for ease of use
  • Variable time/temperature controls: adjustment of time and temperature settings enables the perfect seal to be established for sealer friendly, high-quality plate types, e.g. Azenta plates
  • Password protected protocols: save personalized and SOP set temperatures and times
Reproducible Sealing
  • Reproducible sealing: fixed pressure and accurate time and temperature controls ensure consistent sealing
  • High sealing pressure: improved seal uniformity on a wide range of plates
Highest Flexibility
  • Compatible with a wide range of 96 well plate types and tube racks, allowing for the sealing of individually accessible wells and tubes
  • Flexibility of seal material choice: Azenta offers a wide range of sealing materials
  • Particularly ideal for use with Azenta Individual Access range, offering the ability to seal custom shapes with custom seals
Plug and Play Robotic Integration
  • Extremely versatile, leaving you the freedom to expand and configure your systems such as adding robotic plate handling
  • Full communication protocol available: operate the instrument and record sealing conditions for each seal using the RS232 communication port
  • Instrument can be “plug and play” connected with other instruments, such as readers, robotic arms and liquid handlers, to give a custom automated system without the need to write expensive custom drivers
Specifications
Automated Individual Access Roll Heat Sealer
Dimensions (W x D x H)400 x 680 x 385mm
[additional space is required if larger rolls are used]
Sealing temperature range100-195°C (1°C intervals)
Sealing time range1-10 sec (0.1 sec intervals )
Weight (without roll)52kg
Power supplyV in AC 100-240 +/- 10% 50/60 Hz
Power consumption700W (max)
Working temperature range15-30°C
Operating humidity (RH)0-85%
Operating humidity (RH)0-85%
ConnectionRS-232 serial port, USB ports (types A &B)
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

Automated Individual Access Roll Heat Sealer
Includes mains leads, adapter, waste core and seal loading tool
59-1000Includes mains leads, adapter, waste core and seal loading tool; 1 unit
Adapters & Accessories
59-1001Seal loading tool; 1 tool
59-1002Spindle set; 1 set
59-1003Waste collection core; 2 cores
59-1004Adapter; 1 adapter
