96 Well Assay Plate

96 round well plates designed for various applications: cell culture, fluorescence, luminescence and scintillation, imaging, ELISA, homogeneous assays, depending on option chosen.

  • Polystyrene; cut corners A1/H1
  • 0.35ml wells, flat bottom
  • 2 color options for different applications
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

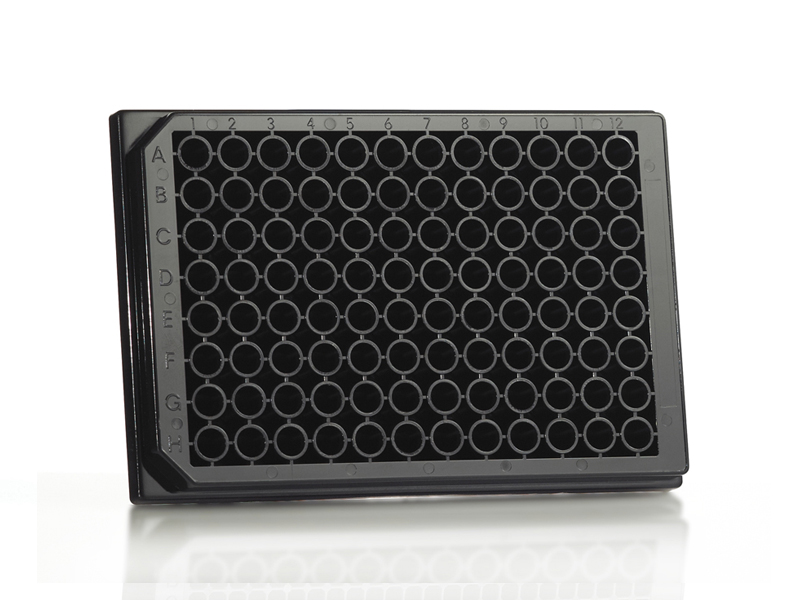

The Azenta Life Sciences 96 well black assay plate has been specifically designed for fluorescence applications. It is also suitable for homogeneous assays employing fluorescence intensity, FRET and TR-FRET where measurements are top-read. This high quality plate assures the necessary accuracy and consistency for automated high throughput systems, generating optimum signal to noise ratios.

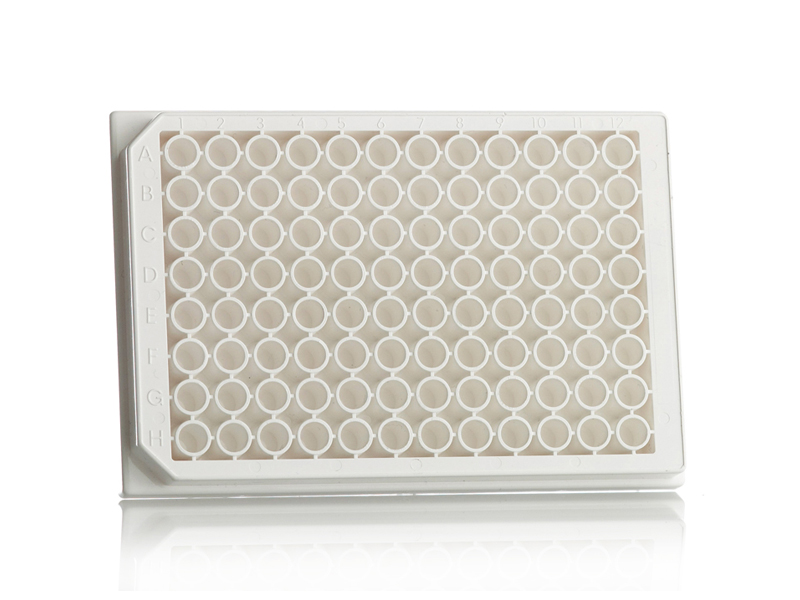

The white assay microplates have been designed for luminescence and scintillation applications, such as Luciferase Reporter Assays. The white plate maximizes signal intensity in cases of low signal from some or all the wells, and it is designed to give optimum results for most top reading instruments, and to conform to standard SBS footprint.

Key Features

Quality & Material
  • Made from polystyrene, a hard material with optical clarity
  • Leak-free
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
  • Flat bottom wells, suitable for optical imaging and cell culture application
  • Round wells, for reduced droplet effects and wicking
Frame
  • Alphanumeric grid reference to aid well and sample identification
  • SBS footprinttion
Use
  • Best used for cell culture, fluorescence, luminescence, imaging and light assays, ELISA, and homogeneous assays
  • Recommended for top reading fluorescence instrumentation
  • Compatible with plate readers and ideal for use with automation
Options
  • Available as a black plate, for low background fluorescence and minimum light scattering
  • Also available as a white microplate, for low background fluorescence and minimization of light scattering; suitable for fluorescent and light assays and imaging, and recommended for top reading fluorescence instrumentation
  • Non-sterile as standard; sterilization available upon request
  • Available barcoded upon request; learn more about our barcoding options
  • Our Moisture Barrier Seal 96 (4ti-0516/96) is recommended as sealing option, as it is optically clear and allows repeated imaging without removal, reducing contamination risks
  • Lids available
Specifications
96 Well Assay Plate
Plate length127.76 ± 0.25mm
Plate width85.48 ± 0.25mm
Plate height14.35 ± 0.25mm
Well depth10.8 ± 0.25mm
Well diameter6.3 ± 0.10mm
Distance to center of A1 from top edge11.24 ± 0.25mm
Distance to center of A1 from left edge14.38 ± 0.25mm
Pitch (distance between A1 and A2)9.00mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

96 Well Assay Plate
0.35ml round wells, flat base, polystyrene, cut corner A1/H1
4ti-0263black; 100 plates
4ti-0273white; 100 plates
Lids
4ti-028296 Well Microplate Lid; 80 lids
4ti-028396 Well Microplate Lid, sterile; 80 lids
