96 Square Deep Well Storage Microplate

96 square deep well plates designed for high density sample collection and storage, recommended for a wide array of applications within cell biology, molecular biology and drug discovery.

  • Made from virgin polypropylene
  • 1.2ml and 2.2ml well options
  • U-shaped and V-shaped base options
  • Available barcoded on request

Want to request a quote, free samples, or to contact an expert?

Place a Request
Product Details

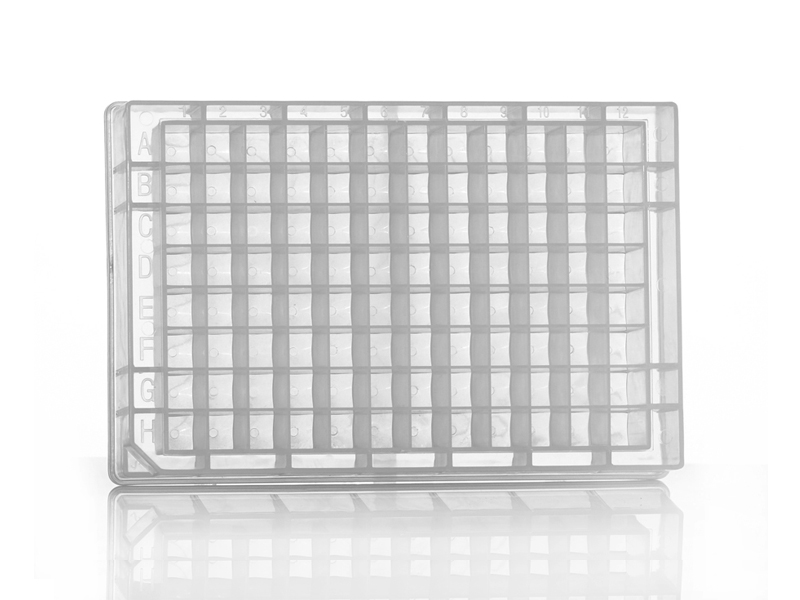

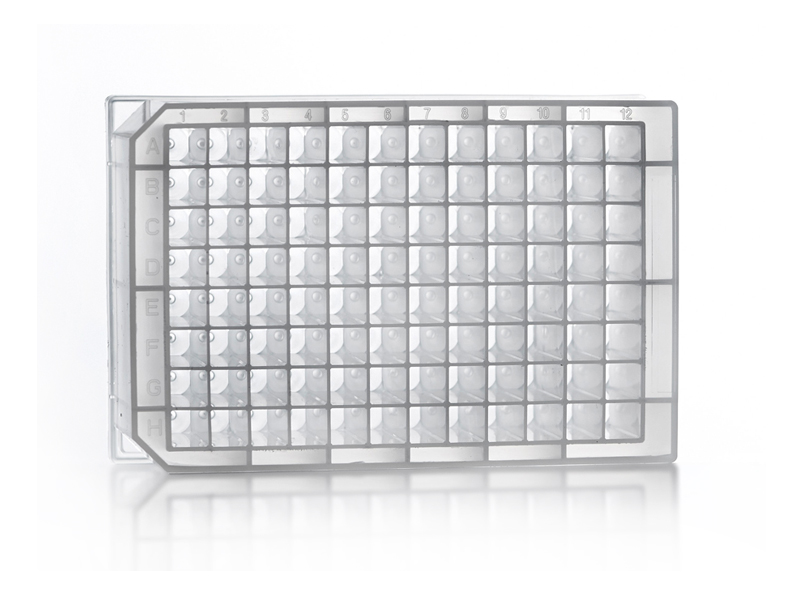

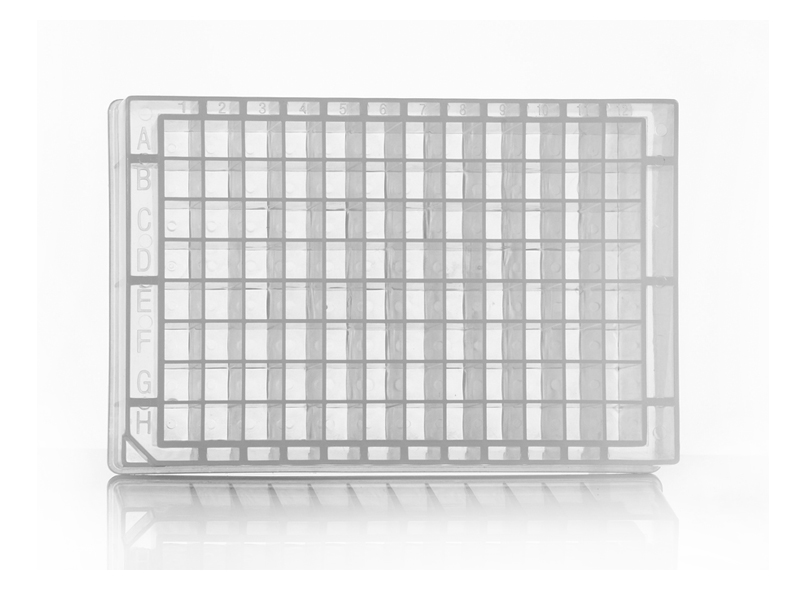

These storage plates are designed for high density sample collection and storage for a wide array of applications within cell biology, molecular biology and drug discovery. They come in three formats: 1.2ml volume U shaped well plates (4ti-0126), 2.2ml volume V shaped (4ti-0132), and 2.2ml volume U shaped (4ti-0136) plates. 4ti-0126 is also recommended as an elution plate on KingFisher™ platforms.

All of these plates are ultra-flat for a completely uniform seal, either with adhesive or heat seals, or with our accompanying silicone sealing mat (4ti-0137). These plates are manufactured in cleanroom facilities which are certified free of RNase, DNase, human genomic DNA and endotoxins. We use only the highest medical grade virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroform.

Key Features

Quality & Material
  • Made from polypropylene, a material with very low biomolecular binding characteristics, a high temperature tolerance and resistance to many standard laboratory chemicals, including DMSO
  • Autoclavable
  • Free from RNase, DNase, human genomic DNA and endotoxins
Wells

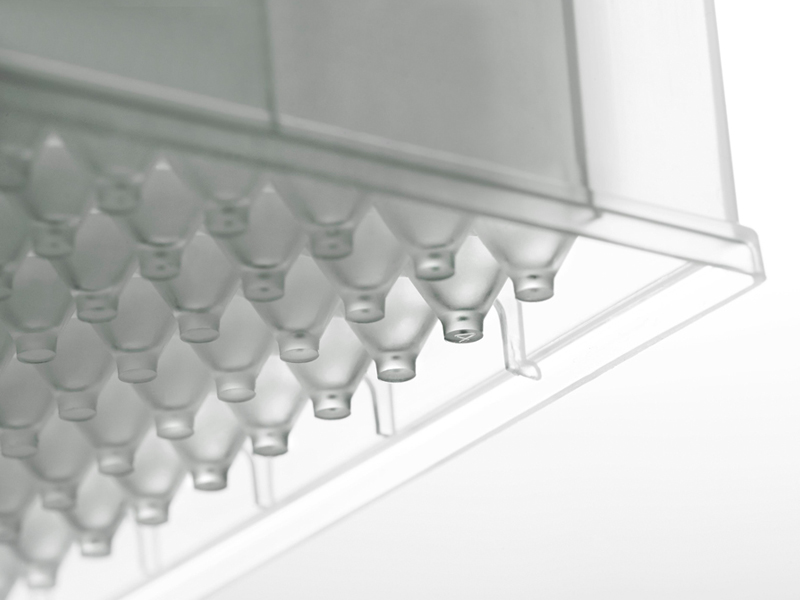

  • Conical V-bottoms (4ti-0132) and U-shaped bottoms (4ti-0126 and 4ti-0136)
  • Square wells, to make the best use of space, and to improve mixing
Frame
  • Alphanumeric grid reference to aid well and sample identification
  • SBS footprint
Use
  • Clear plate, perfect for storage applications
  • Temperature range for use: -80°C to 120°C
  • Best for precipitation, centrifugation and small volume recovery due to the conical V bottom, as the liquid gathers at the lowest point of the V for easy pipetting
  • U-shaped bottom plates are best for washing, mixing and pelleting and give high surface area
  • Stackable
  • Suitable for adhesive and heat sealing
Options
  • Available with a U-shaped bottom in 1.2ml and 2.2ml
  • Also available with a V-shaped bottom in 2.2ml
  • Non-sterile as standard, sterilization available upon request; contact an expert for details and pricing
  • Available barcoded upon request; learn more about our barcoding options
  • A clear silicone sealing mat (4ti-0137) is also available to fit these plates
Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert:

96 Square Deep Well Storage Microplate
Square wells, clear polypropylene
4ti-01261.2ml wells, U shaped bases; 10 x 10 plates
4ti-01322.2ml wells, V shaped bases; 10 x 5 plates
4ti-01362.2ml wells, U shaped bases; 5 x 10 plates
Mats
4ti-0137Silicone Sealing Cap Mat; 50 mats
