8 Well PCR Tube Strip, With Attached Caps
8 well PCR tube strips with attached caps, recommended for low to medium throughput. Low profile strips, recommended for reaction volumes <20µl, come with attached flat optically clear caps. Standard profile strips come with attached domed or flat optically clear caps.
- Made from virgin polypropylene
- Low profile: <100µl working volume
- Standard profile: <200µl working volume
- Can be cut into sections or individual tubes
Want to request a quote, free samples, or to contact an expert?
Product Details
Key Features
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
- Molded from virgin polypropylene
Tubes
- The tubes on each strip are joined together either by three links (flat cap variety – 4ti-0792 and 4ti-0793) or by one strong link (domed cap variety – 4ti-0794) to make the strip more rigid and help reduce any chance of spillage
- Each cap is separately joined to a tube, making it impossible to either cross contaminate another tube with the wrong cap, or to lose a cap altogether
Use
- The tube strips can be easily separated by cutting the links, to make smaller sections or individual tubes
- The flat optically clear caps enable light signals, such as fluorescence, to pass through without affecting the signal, and are suitable for imaging techniques including RT-qPCR
- Recommended for low to medium throughput applications
Options
- The strips are available with either tethered flat optically clear caps or domed caps
Compatibility
4ti-0792
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
- qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT | QuantStudio™ 3/5/6/7/12K | ViiA7™
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
- Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
- qPCR Cyclers (96 well block): qTOWER3/G/touch | Toptical
BIOER TECHNOLOGIES
- Thermal Cyclers (strips only): GeneQ
- Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
- Thermal Cyclers (strips only): Genecycler
- Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
BIO-RAD MJ RESEARCH
- Thermal Cyclers (strips only): Mini Gradient
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
- qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH
- Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2 / GX2 / GX2e / X2e
- qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
- Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
4ti-0793
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- qPCR Cyclers (96 well FAST block): StepOne Plus™ | 750 FAST | 7900 HT FAST | QuantStudio™ 5/6/7/12K | ViiA7™
AGILENT/STRATAGENE
- Thermal Cyclers (96 well block): Robocycler Gradient
- qPCR Cyclers (96 well block): AriaMx | Mx3000P™ | Mx3005P™
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (96 well block): Trobot 96 | SpeedCycler2 (SP, SPR)
BIO-RAD
- Thermal Cyclers (96 well block): C1000 Touch | S1000
- qPCR Cyclers (96 well block): CFX96 Touch | CFX96 Touch Deep Well | CFX connect | MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
- qPCR Cyclers (strips only): MiniOpticon
- qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
- Thermal Cyclers (strips only): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
- qPCR Cyclers (96 well block): MasterCycler™ ep realplex
PEQLAB/VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TECHNE
- Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
- qPCR Cyclers (96 well block): Quantica
4ti-0794
ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
- Thermal Cyclers (96 well standard block): Veriti | Proflex | Simpliamp | GeneAmp® 2700/2720/9600/9700
ANALYTIK JENA/BIOMETRA
- Thermal Cyclers (strips only): TRIO | Tpersonal | T3 Thermocycler
- Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL
BIOER TECHNOLOGIES
- Thermal Cyclers (strips only): GeneQ
- Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD
- Thermal Cyclers (strips only): Genecycler
- Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
BIO-RAD MJ RESEARCH
- Thermal Cyclers (strips only): Mini Gradient
- Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
CORBETT RESEARCH
- Thermal Cyclers (96 well block): (Qiagen) Palm Cycler
EPPENDORF
- Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1 | MasterCycler™ nexus X2/GX2/GX2e/X2e
PEQLAB VWR
- Thermal Cyclers (strips only): peqSTAR XS | peqSTAR 2X
- Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
- Thermal Cyclers (96 well block): Labcycler
TAKARA
- Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
- Thermal Cyclers (strips only): 3Prime | 3PrimeG | 3PrimeX
- Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
For recommended strip options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.
Ordering Information
Part Numbers
Use these part numbers to request a quote, free samples, or to contact an expert:
8 Well PCR Tube Strips, With Attached Caps Low profile 0.1ml wells (working volume: <100µl, total well capacity: 200µl), clear polypropylene, with attached flat optically clear caps; and standard 0.2ml wells (working volume: <200µl, total well capacity: 300µl), clear polypropylene, with attached domed or flat optically clear caps | |
---|---|

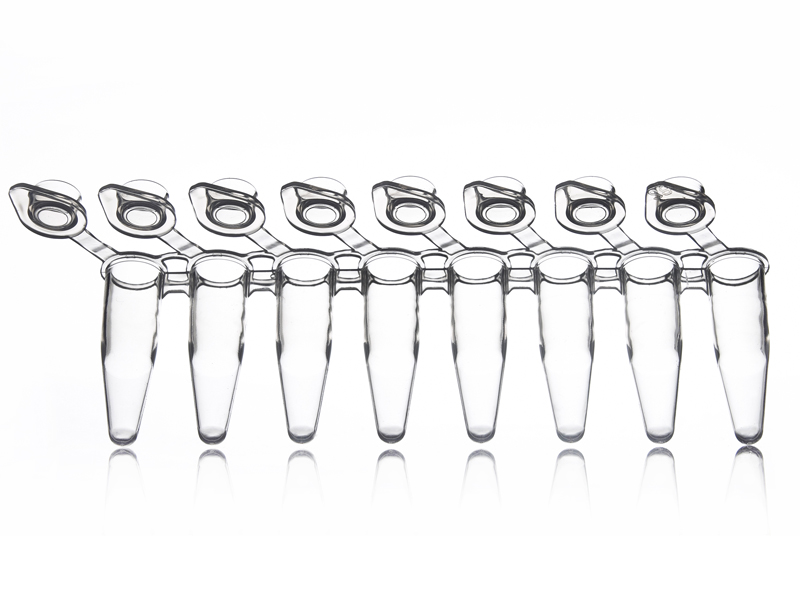

4ti-0792 | 0.2ml wells, with flat optical caps; 120 tube strips |

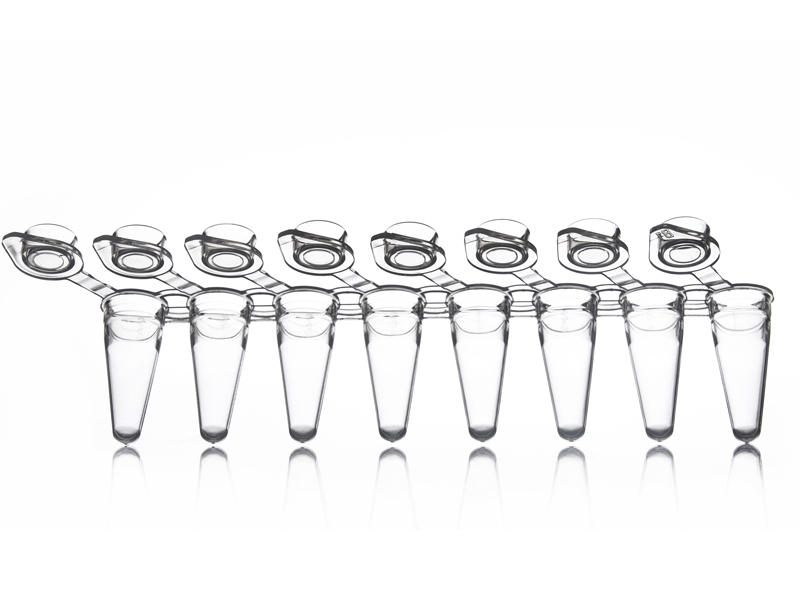

4ti-0793 | 0.1ml wells, with flat optical caps; 120 tube strips |

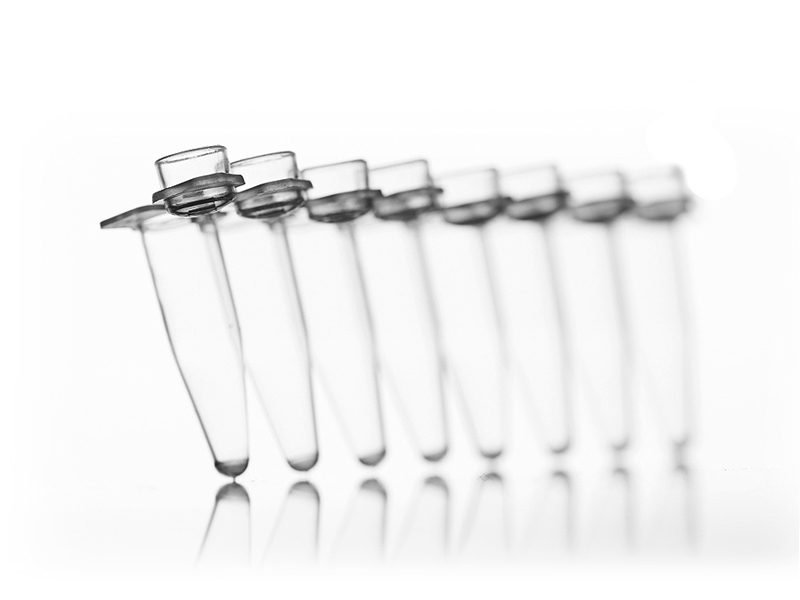

4ti-0794 | 0.2ml wells, with domed caps; 120 tube strips |
