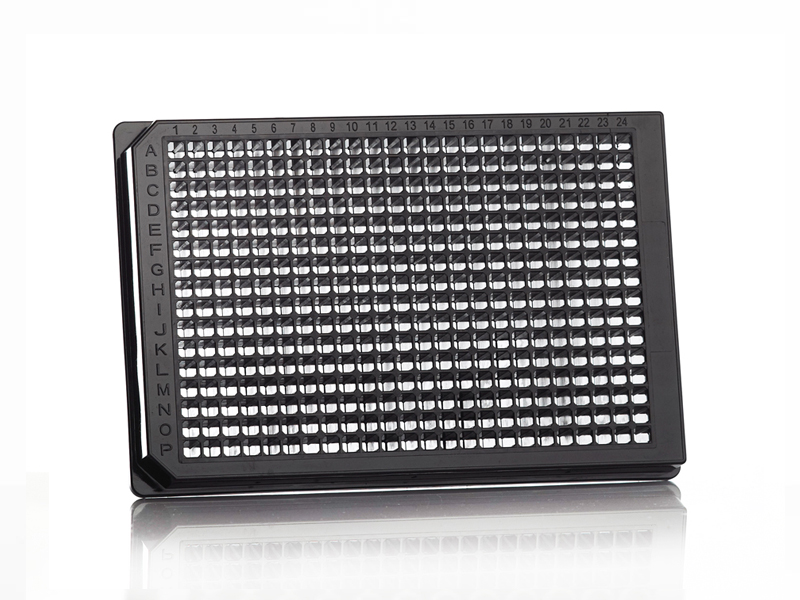

384 Well Ultra Optically Clear Plate
384 well plates ideal for imaging, designed to deliver low absorbance and high transmission, together with low background signals, and improved transmission of signals at low wavelengths.
- Optically ultra clear base
- Available barcoded on request
Want to request a quote, free samples, or to contact an expert?
Product Details
The main advantage of using Ultra Optically Clear Plates is in the optically ultra-clear base of the plate, which gives superior results by delivering low absorbance and high transmission, together with low background signals. Not only this, but due to its incredible optical clarity, the ultra-clear base of these plates delivers improved transmission of signals at low wavelengths compared to standard optical films (see graph in Specifications). It allows DNA measurements at 260/280nm wavelengths in a medium or high throughput.
Key Features
Quality
- Free from DNase, RNase and human genomic DNA
Base
- Ultra-clear base improves transmission for low wavelengths
- Peel-back film on the base for scratch free surface
- Optimum signal-to-noise ratios
Frame
- Alphanumeric grid reference to aid well and sample identification
Use
- Suitable for adhesive and heat sealing
Options
- Available barcoded upon request; learn more about our barcoding options
- Low profile lid available (4ti-0280)
Specifications

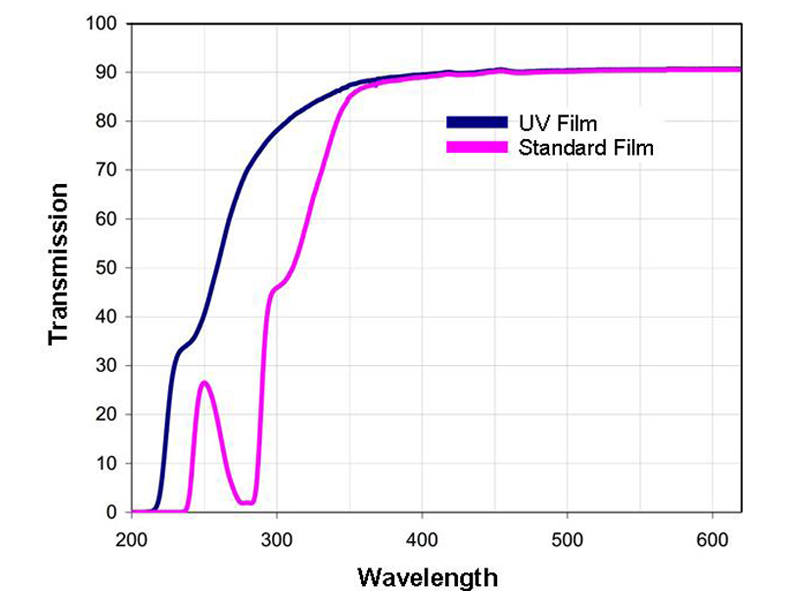

Due to its incredible optical clarity, the ultra-clear base of these plates delivers improved transmission of signals at low wavelengths compared to standard optical films (click on image to expand).
Figure 1
Ordering Information
Part Numbers
Use these part numbers to request a quote, free samples, or to contact an expert:
| 384 Well Ultra Optically Clear Plate Ultra-clear base imaging microplate, black frame | |
|---|---|
| 4ti-0214 | non-sterile; 30 plates |
| Lids | |
|---|---|
| 4ti-0280 | 384 Well Microplate Lid; 100 lids |
Resources
All Resources
Catalogs
Azenta Life Sciences Sample Consumables and Instruments Catalog
Technical Drawings
384 Well Ultra Optically Clear Plate Technical Drawing
