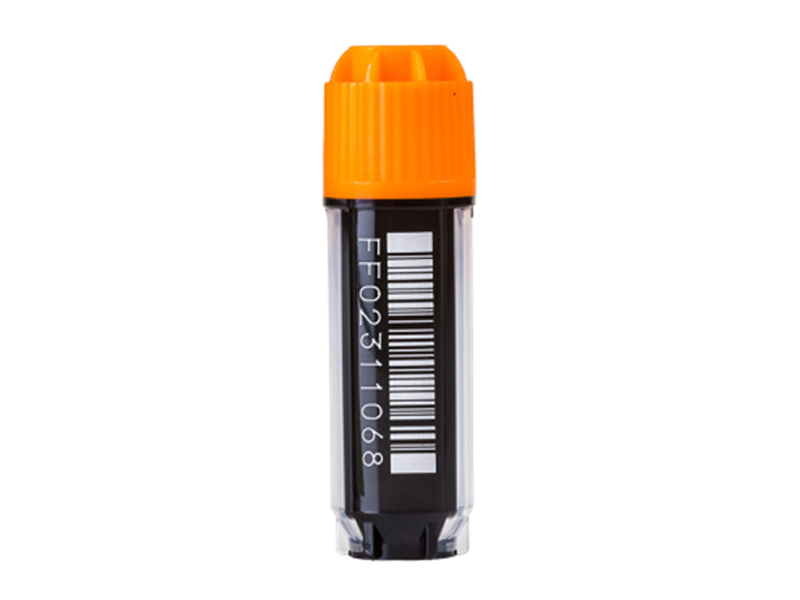

1.9ml Tri-coded Tube, 48-format, External Thread

The 1.9ml Tri-coded Tube, 48-format, External Thread offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities.

  • Code readable without removing tubes from racks
  • Suitable for cryogenic storage
  • Available in 48-well format SBS racks or bulk
  • Sealable with screw caps

Want to request a quote, a free sample pack, or to contact an expert?

*Online availability to US only

Product Details

Offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities. Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers.

Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage. Developed to exceed the demands of sample security, management and tracking in modern high density storage applications.

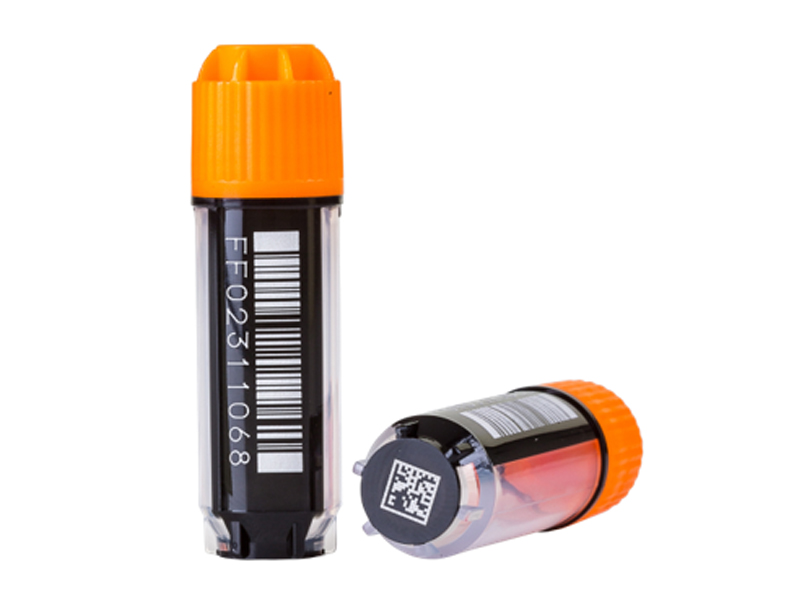

Each tube features a permanent 2D code laser etched in high contrast on the tube base, a permanent 1D linear barcode and human-readable number laser etched in high-contrast on the tube side. All three codes are identical and auditing processes guarantee all three codes match; standard 2D coding option is black on white.

Key Features

Secure Sample Storage & Tracking
  • Next Generation manufacturing techniques
  • Made from high-quality virgin PP
  • Permanently laser etched 2D code on base, 1D linear barcode and human readable number on the side, ensuring a permanent link between sample and data
  • 2D codes readable without removing tubes from racks
  • High contrast 2D codes are more reliably readable in frost or condensation conditions
  • 100% quality control, each tube is tested to ensure both readability and uniqueness
  • Leak tested to ensure sample security
  • External thread tubes provide greater working volume than internal thread tubes
  • Suitable for sealing with screw caps
  • Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

  • A deforming compression seal more effective than a silicone alternative
  • A non-silicone seal means the cap can never be over-tightened
  • Caps and tubes are manufactured from the same material, preventing differential expansion during freeze-thaw cycles
  • A double-start thread engages in a maximum rotation of 180°, thereby facilitating automation
Racking Options

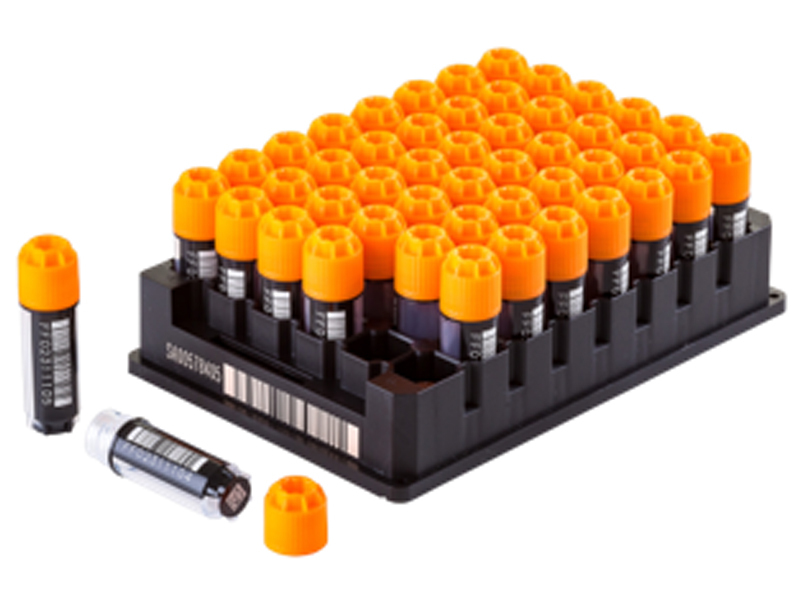

48 format SBS racks

  • TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
  • TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
  • LidLock: enables racks to withstand a 1m drop test for added sample security
  • Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
  • Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks

Cryo racks

  • 136.2mm x 136.2mm PC cryobox rack option available for cryogenic sample storage, holding 81 tubes in 9×9 array
  • Alternatively, 136.2mm x 136.2mm PC cryobox rack option available for cryogenic sample storage, holding 100 tubes in 10×10 array
  • Open bottom for 2D code decoding on Azenta Life Sciences Camera-Based Full Rack Barcode Readers
  • Can be supplied with a unique 2D code identifier which can be read at the same time as the tube 2D code, for more secure sample tracking
Specifications
1.9ml Tri-coded Tube, 48-format, External Thread (with screw cap)
Max. working volume1.9ml
Tube height38.2mm
Tube height with cap43.9mm
Inner diameter9.6mm
Outer diameter with cap12.8mm
Center to center13.5mm
Minimum temperature-196°C
Tube height in rack45.0mm
Overall rack height, including lid (65-9451)49.4mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

1.9ml Tri-coded Tube, 48-format, External Thread
2D code on base, 1D linear barcode and human readable number on side
65-7640uncapped, bulk; 480 tubes
65-7641capped, bulk; 480 tubesBUY ONLINE*
65-7642uncapped, racked (65-9451); 10 racks/480 tubes
65-7643capped, racked (65-9451); 10 racks/480 tubesBUY ONLINE*
Compatible Racks
65-945148-Format Rack, 1 Piece Rack Base; 10 racksBUY ONLINE*
66-1801Cryo Rack 9×9, black, PC; 10 racks
66-1800Cryo Rack 10×10, black, PC; 10 racks
*Online availability to US only
