0.9ml Tri-coded Tube, 96-format, Internal Thread

The 0.9ml Tri-coded Tube, 96-format, Internal Thread offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities.

Code readable without removing tubes from racks
Suitable for cryogenic storage
Available in 96-well format SBS racks or bulk
Sealable with screw caps/TPE septum caps

Want to request a quote, a free sample pack, or to contact an expert?

Place a Request

Product Details

Offers unequaled sample audit traceability, enabling sample tracking and data sharing between multiple users, labs, locations and automation capabilities. Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers.

Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage. Developed to exceed the demands of sample security, management and tracking in modern high density storage applications.

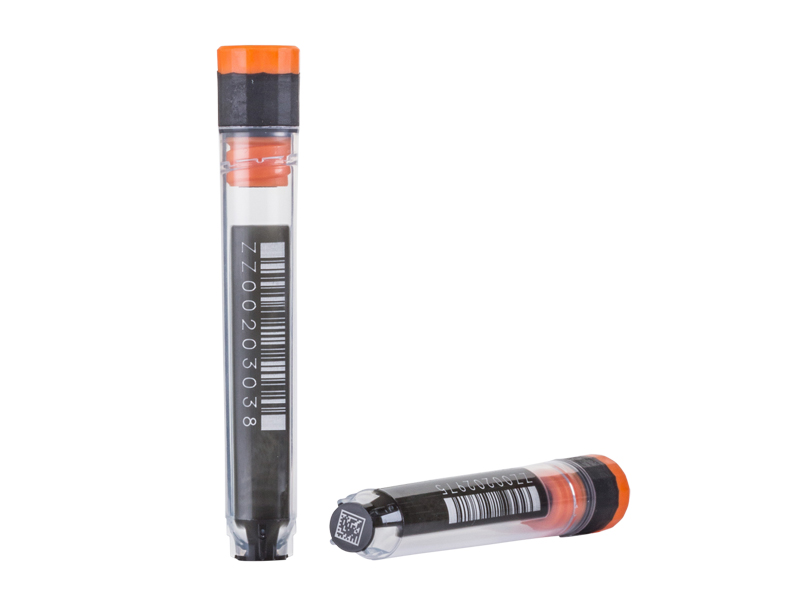

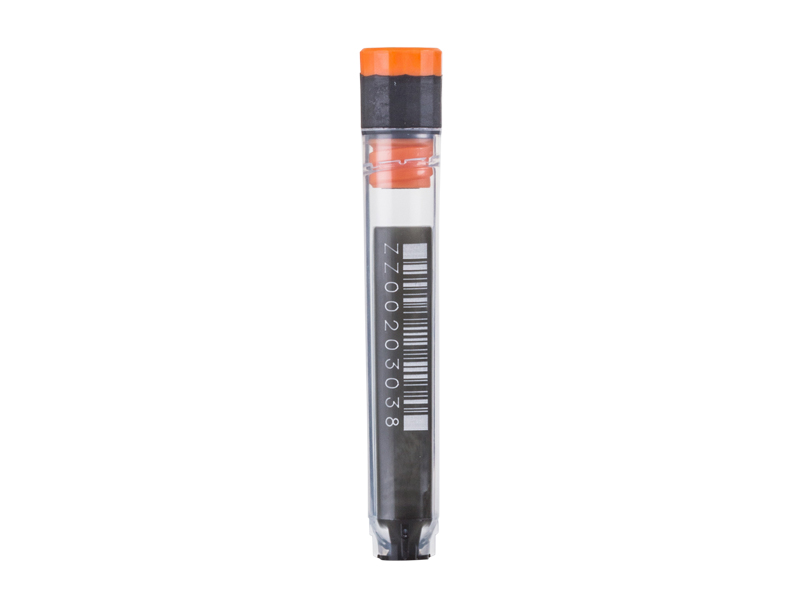

Each tube features a permanent 2D code laser etched in high contrast on the tube base, a permanent 1D linear barcode and human-readable number laser etched in high-contrast on the tube side. All three codes are identical and auditing processes guarantee all three codes match; standard 2D coding option is black on white.

Key Features

Secure Sample Storage & Tracking

Next Generation manufacturing techniques
Made from high-quality virgin PP
Permanently laser etched 2D code on base, 1D linear barcode and human readable number on the side, ensuring a permanent link between sample and data
2D codes readable without removing tubes from racks
High contrast 2D codes are more reliably readable in frost or condensation conditions
100% quality control, each tube is tested to ensure both readability and uniqueness
Leak tested to ensure sample security
Suitable for sealing with screw caps or TPE septum caps
Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

Co-molded screw caps for internal thread tubes eliminate the possibility of over tightening
Co-molded caps eliminate the failures common in caps using silicon O-rings
Improved internal thread provides a more secure seal when using screw caps

TPE septum caps

A cost effective sealing option for samples that are only accessed occasionally
Septum caps are supplied in 96-format back mats to facilitate automation

Racking Options

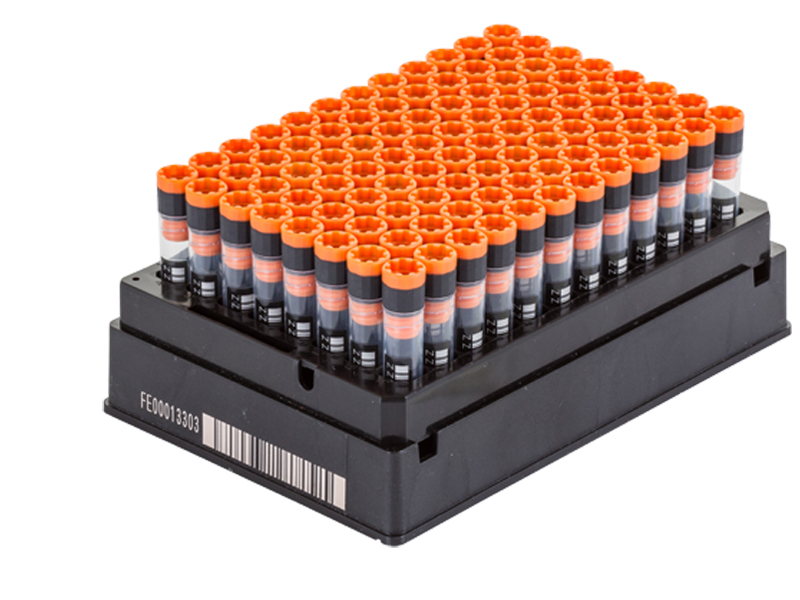

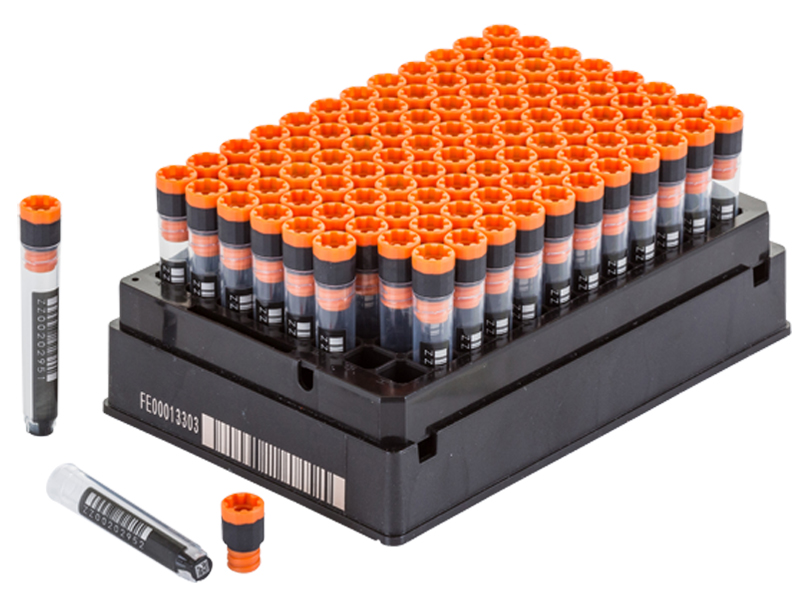

96 format SBS racks

TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
LidLock: enables racks to withstand a 1m drop test for added sample security
Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks

Specifications

	0.9ml Tri-coded Tube, 96-format, Internal Thread (with screw cap)	0.9ml Tri-coded Tube, 96-format, Internal Thread (with septum cap)
Max. fill volume (21°C)	1.1ml	1.2ml
Max. working volume (frozen)	0.9ml	999µl
Max. working volume	916µl	999µl
Tube height (without cap)	44.2mm	44.2mm
Tube height with cap	52.5mm	45.4mm
Internal height to the bottom of the tube	43.1mm	43.1mm
Inner diameter	6.8mm	6.8mm
Outer diameter with cap	8.6mm	8.6mm
Center to center	9.0mm	9.0mm
Minimum temperature	-196°C	-80°C
Tube height in rack	53.4mm	46.3mm
Overall rack height (including lid)	61.8mm	50.8mm
2D code	base	base
Human readable number	side	side
Linear barcode	side	side

Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

0.9ml Tri-coded Tube, 96-format, Internal Thread 2D code on base, 1D linear barcode and human readable number on side
67-0757-00	uncapped, bulk; 960 tubes
67-0757-01	uncapped, racked (66-51023); 10 racks/960 tubes
67-0757-02	uncapped, racked (66-51022); 10 racks/960 tubes
67-0757-10	capped, bulk; 960 tubes
67-0757-11	capped, racked (66-51023); 10 racks/960 tubes
