0.7ml Dual-coded Tube, 96-format, Internal Thread

The 0.7ml Dual-coded Tube, 96-format, Internal Thread features a 2D code and human readable number on tube base, allowing compatibility with low throughput manual, semi-automated or fully automated workflows on integrated platforms.

Code readable without removing tubes from racks
Suitable for cryogenic storage
Available in 96-well format SBS racks or bulk
Sealable with TPE/auto friendly screw caps

Want to request a quote, a free sample pack, or to contact an expert?

Place a Request

Product Details

Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers. Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage.

Developed to exceed the demands of sample security, management and tracking in modern high density storage applications. Each tube features a permanently laser etched 2D code and human readable number on tube base, allowing compatibility with low throughput manual, semi-automated or fully automated workflows on integrated platforms

Key Features

Secure Sample Storage & Tracking

Next Generation manufacturing techniques
Made from high-quality virgin PP

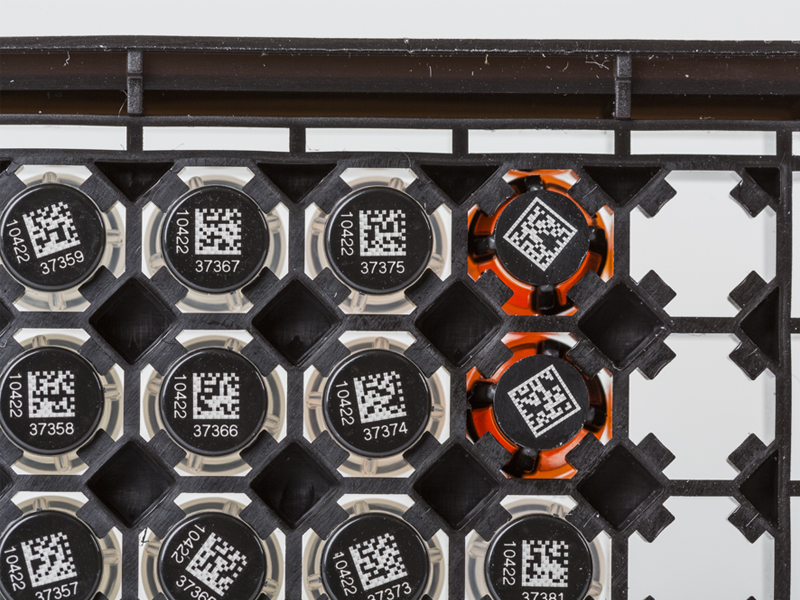

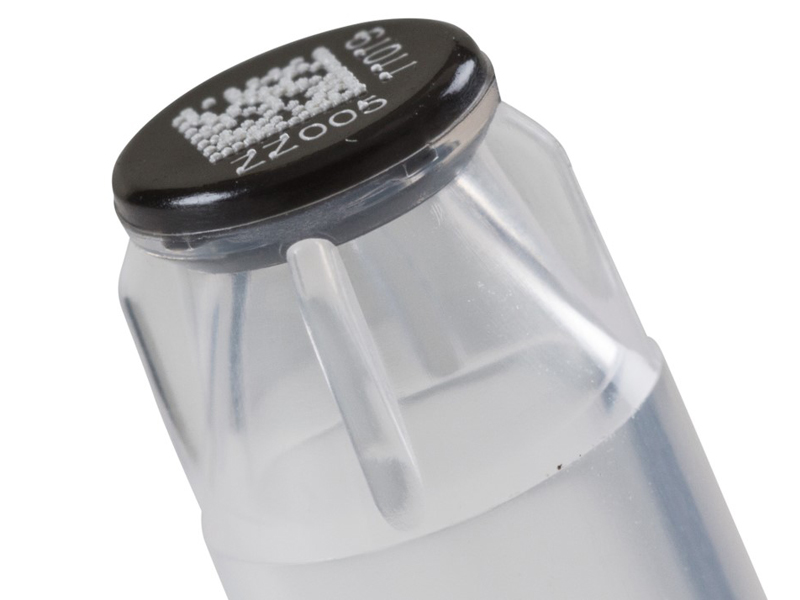

Permanently laser etched 2D code on base and human readable number on the base, ensuring a permanent link between sample and data
2D codes readable without removing tubes from racks
High contrast 2D codes are more reliably readable in frost or condensation conditions
100% quality control, each tube is tested to ensure both readability and uniqueness
Leak tested to ensure sample security
Suitable for sealing with screw caps or TPE septum caps
Suitable for cryogenic storage*

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

Automation friendly co-molded screw caps for internal thread tubes eliminate the possibility of over tightening
Co-molded caps eliminate the failures in caps using a silicone O-ring
Double start thread engages in a maximum rotation of 180°, facilitating automation

TPE septum caps

A cost effective sealing option for samples that are only accessed occasionally
Septum caps are supplied in 96-format back mats to facilitate automation

Racking Options

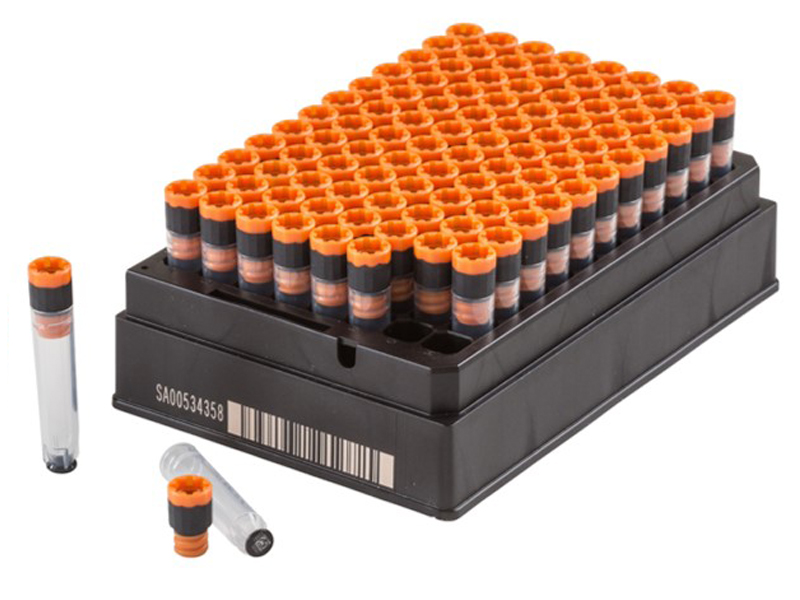

96 format SBS racks

TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
LidLock: enables racks to withstand a 1m drop test for added sample security
Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks

Cryo racks

136.2mm x 136.2mm PC cryobox rack option available for cryogenic sample storage, holding 196 tubes in 14×14 array
Open bottom for 2D code decoding on Azenta Life Sciences Camera-Based Full Rack Barcode Readers
Can be supplied with a unique 2D code identifier which can be read at the same time as the tube 2D code, for more secure sample tracking

Specifications

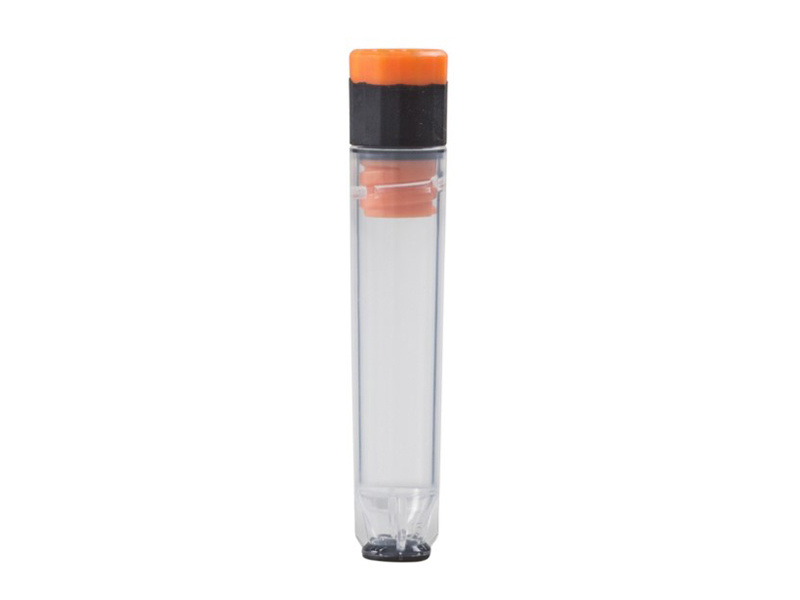

	0.7ml Dual-coded Tube, 96-format, Internal Thread (with auto friendly screw cap)
Max. working volume	0.73ml
Tube height	36.2mm
Tube height with cap	44.5mm
Inner diameter	6.8mm
Outer diameter with cap	8.6mm
Center to center	9.0mm
Minimum temperature	-196°C
Tube height in rack	46.4mm
Overall rack height (including lid)	50.8mm

Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

0.7ml Dual-coded Tube, 96-format, Internal Thread 2D code and human readable number on base
66-62317	uncapped, racked (66-61001); 10 racks/960 tubes
66-62317-L	uncapped, racked (66-51000); 10 racks/960 tubes
66-62318	uncapped, bulk; 960 tubes
66-62318-Y6	capped, bulk; 960 tubes
66-62319	uncapped, racked (66-61002); 10 racks/960 tubes
66-62319-L	uncapped, racked (66-51016); 10 racks/960 tubes
66-62319-Y6	capped, racked (66-61002); 10 racks/960 tubes
66-62319-Y6-L	capped, racked (66-51016); 10 racks/960 tubes

Compatible Racks
66-51000	96-Format, HighBase Rack, with TubeLock and lid suitable for TPE caps only; 10 racks
66-51016	96-Format, HighBase Rack, with TubeLock; 10 racks
66-61001	96-Format, HighBase Rack, with lid suitable for TPE caps only; 10 racks
66-61002	96-Format, HighBase Rack; 10 racks
66-0196-02	Cryo Rack 14×14, black, PC; 10 racks
