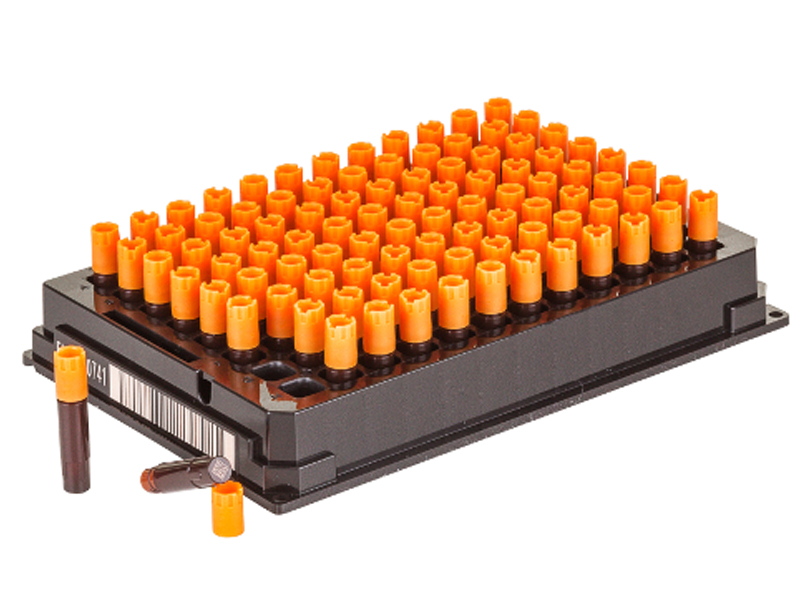

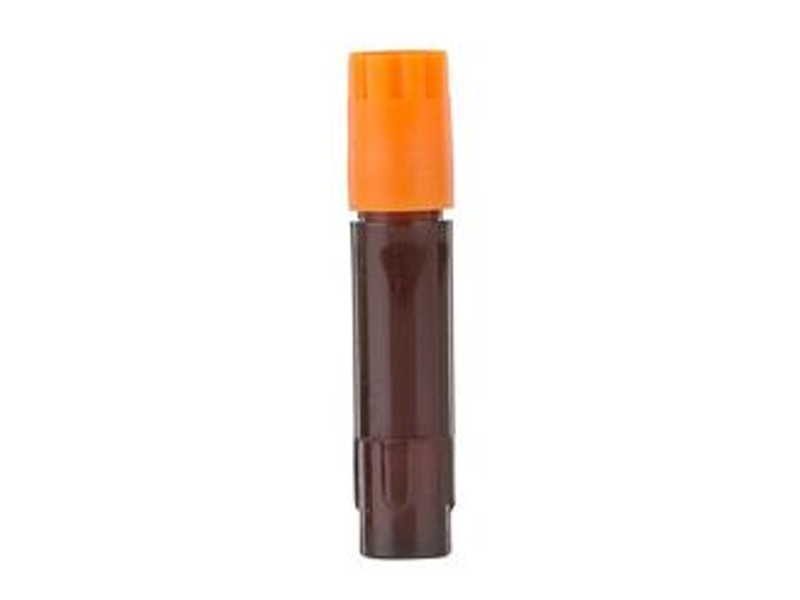

0.2ml 2D-coded Tube, 96-format, External Thread

The 0.2ml 2D-coded Tube, 96-format, External Thread provides lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage. Unique profile allows for storage in higher density racks.

  • Code readable without removing tubes from racks
  • Suitable for cryogenic storage
  • Available in 96- & 240-well SBS racks, or bulk
  • Sealable with screw caps

Want to request a quote, a free sample pack, or to contact an expert?

Product Details

Designed and developed with broad compatibility in mind, the tubes perform without compromise in conjunction with automated barcode reading, capping and sample management systems from Azenta Life Sciences and all other industry-recognized manufacturers. Provides a lifelong and secure chain of custody for samples in biobanks, compound libraries and a broad range of biological and chemical stores, including cryogenic storage.

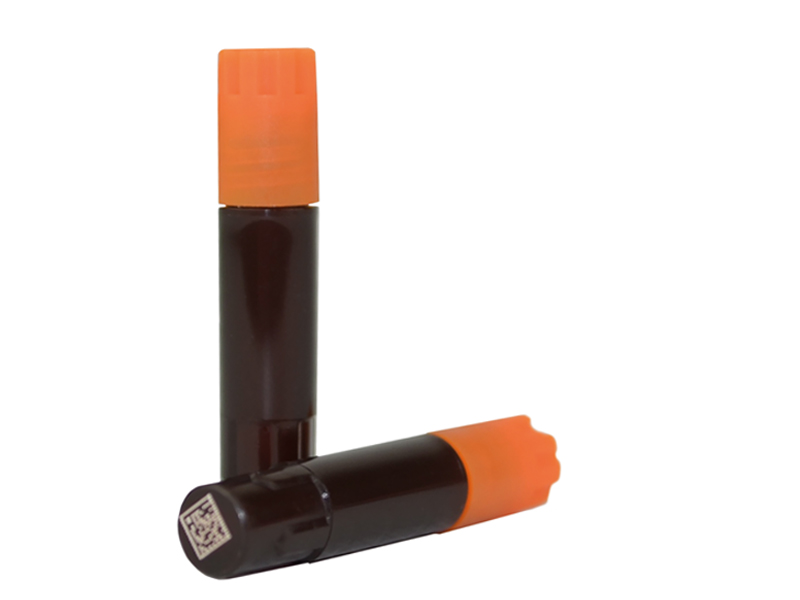

Each tube carries a unique and permanent high-contrast 2D code tube identifier on the base of the tube readable in frost or condensation conditions, or when damaged. Manufactured from high-quality virgin polypropylene.

Key Features

Secure Sample Storage & Tracking
  • Made from high-quality virgin PP
  • Permanently laser etched 2D code on base, ensuring a permanent link between sample and data
  • 2D codes readable without removing tubes from racks
  • High contrast 2D codes are more reliably readable in frost or condensation conditions
  • 100% quality control, each tube is tested to ensure both readability and uniqueness
  • Leak tested to ensure sample security
  • External thread tubes provide greater working volume than internal thread tubes
  • Suitable for sealing with screw caps
  • Suitable for cryogenic storage*
  • Unique profile allows for storage in higher density than typical 96 way tubes when using specific racks

*Not for use in liquid phase nitrogen

Capping Options

Screw caps

  • A deforming compression seal more effective than a silicone alternative
  • A non-silicone seal means the cap can never be over-tightened
  • Caps and tubes are manufactured from the same material, preventing differential expansion during freeze-thaw cycles
  • A double-start thread engages in a maximum rotation of 180°, thereby facilitating automation
Racking Options
  • TwistLock: prevents tubes rotating within the rack to enable automated capping and de-capping of screw caps; provided as standard with the option available to remove
  • TubeLock: prevents tubes from falling out, even in lidless racks; useful in manual workflows; activate by applying pressure on the tube top, clicking it into place; tubes can be ordered pre-locked or non-locked
  • LidLock: enables racks to withstand a 1m drop test for added sample security
  • Automatic rack orientation: a unique 2D code rack identifier readable at the same time as the tube 2D code; for automatic rack orientation and secure sample tracking
  • Direct laser etching: a cutout window on the rack sides allow the linear barcode to be read more easily; linear barcodes can be laser etched directly onto racks
Specifications
0.2ml 2D-coded Tube, 96-format, External Thread (with screw cap)
Max. working volume0.2ml
Tube height24.1mm
Tube height with cap27.5mm
Inner diameter3.9mm
Outer diameter with cap5.8mm
Center to center9.0mm
Minimum temperature-196°C
Tube height in rack28.0mm
Overall rack height (including lid)31.0mm
Ordering Information

Part Numbers

Use these part numbers to request a quote, a free sample pack, or to contact an expert:

0.2ml 2D-coded Tube, 96-format, External Thread
2D code on base
67-0203-01uncapped, bulk; 960 tubes
67-0203-02uncapped, racked (67-0203-00); 10 racks/960 tubes
67-0203-10capped, bulk; 960 tubes
67-0203-11capped, racked (67-0203-00); 10 racks/960 tubes

0.2ml 2D-coded Tube, 240-format, External Thread
2D code on base
67-0202-01uncapped, bulk; 2,400 tubes
67-0202-02uncapped, racked (67-0200-00); 10 racks/2,400 tubes
67-0202-10capped, bulk; 2,400 tubes
67-0202-11capped, racked (67-0200-00); 10 racks/2,400 tubes
Compatible Racks
67-0200-00240-Format Rack; 10 racks
67-0203-0096-Format Rack; 10 racks
Compatible Caps
67-0202-50External Thread Screw Cap, 240-format, bulk; 2,400 caps
