IntelliXcap™ Automated Screw Cap Decapper/Recapper Acoustic 96-format

IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format has a compact modular design for flexibility. Ideal for integration. Perfect for labs handling compound libraries or biological samples working with our Acoustic Sample Tube – Echo® Qualified Consumable.

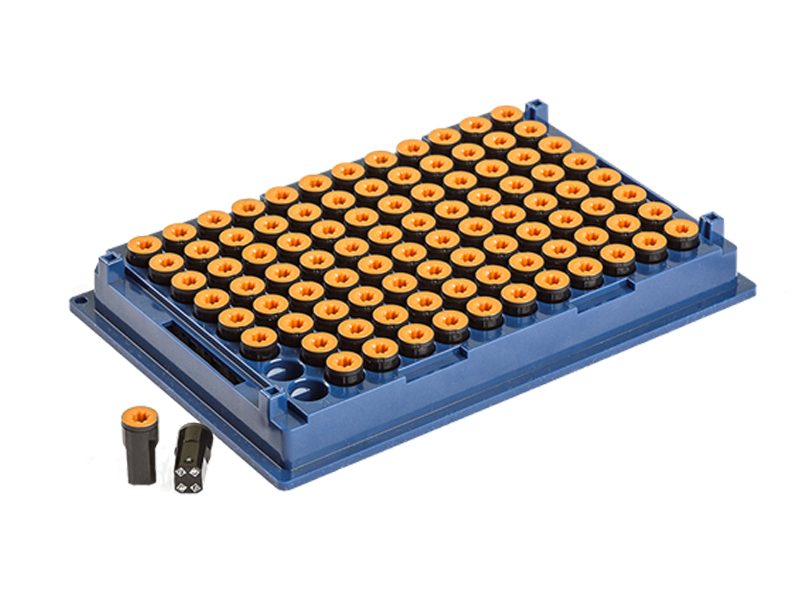

  • For use with our Acoustic Sample Tube
  • Compatible with various 96-format racked tubes
  • Validates decapping/re-capping with the Verification module and Decoding Software

Want to request a quote, a demo, or to contact an expert?

Place a Request
Product Details

Azenta Life Sciences IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format is next-generation, engineered for increased throughput, ease of use and high system reliability, making the system ideal for any laboratory managing compound libraries or biological sample stores working with Azenta Life Sciences Acoustic Sample Tube –  Echo Qualified Consumable.

Rapid decapping and capping, compatible with multiple sample storage tube types from a range of tube manufacturers in 96 format. IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format is capable of de-capping a complete rack of 96 tubes in as little as 20 seconds.

Automation and high speed reduces sample handling time, increasing sample throughput workflow. Ideal for medium to high-throughput laboratories managing compound libraries, biobanks or other biological samples.

Additional camera module, equipped in every Azenta Life Sciences IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format, was developed for validation of Azenta Life Sciences Acoustic Sample Tube capping and uncapping by using a rack vision system and Azenta Life Sciences Decoding Software*.

*PC to run Decoding Software not included

Key Features

Advanced Automation for Increased Throughput
  • Specially designed for use with Azenta Life Sciences Acoustic Sample Tube – Echo Qualified Consumable
  • Extremely fast, works with multiple sample storage tube types from a range of tube manufacturers
  • Suitable for use with 96-format racked tubes
  • Capable of de-capping a complete rack of 96 tubes in as little as 20 seconds
  • Automation and high speed reduces sample handling time, increasing sample throughput workflow
  • Ideal for medium to high-throughput laboratories managing compound libraries, biobanks or other biological samples
  • Validation of tube capping and uncapping using rack vision system. IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format  is equipped with an additional camera module that uses an image algorithm to detect the presence of caps, before and after the decapping/capping process
Compact, Modular Design for Ultimate Flexibility

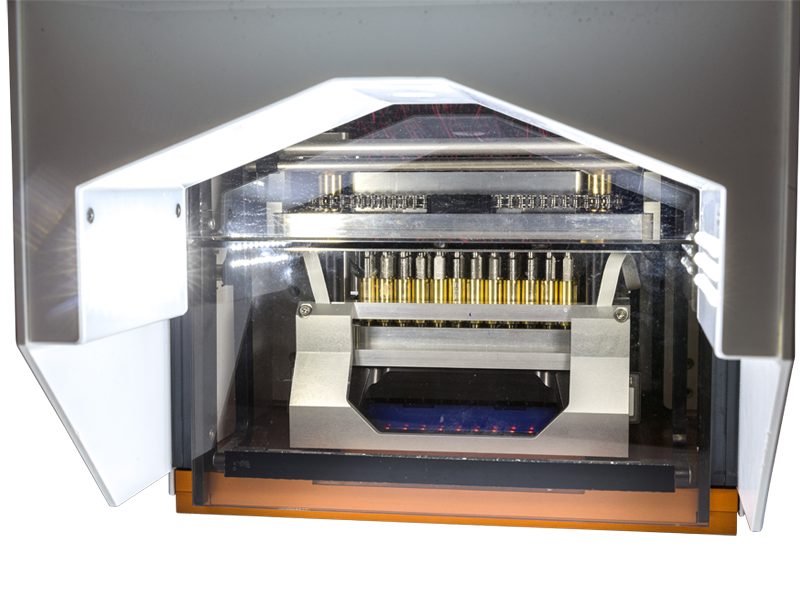

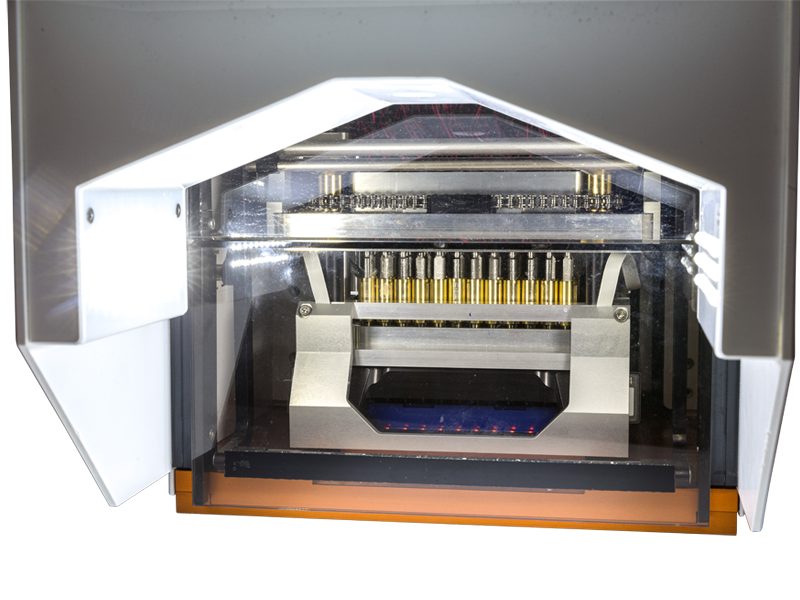

  • Features a unique, fully automated, interchangeable cartridge cap driver system
  • Cartridges allow change between different tube types in less than 2 minutes
  • No need for specialist intervention to change cartridge drivers
  • Control is via a quick installation, easy-to-use touch panel
Easy to Use, Easy to Integrate
  • Quick installation, easy-to-use touch panels bring instant control
  • Cap detection
  • Wide operating temperature range of 5°C to 40°C
  • Electric torque control means less persistent wear on cap drivers
  • Sample rack stage extension facilitates fully automated workflow integration
Specifications
IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format
Dimensions (H x W x D)316 x 256 x 634mm
Weight27kg
Stage height31mm
Stage distance (when ejected)121mm
Ambient operating temperature5°C to 40°C (41°F to 104°F)
Capping/decapping speed20-40 sec to decap or to recap a rack of tubes
ResourceRequirements for Decoding Software
Operating ystemWindows 10
CPUIntel i5 or greater
Memory8GB
Hard diskapprox. 250MB free space
Display> 1024x768px

Driver and Cap Compatibility

  • We provide a wide range of custom made and off the shelf driver cartridges to accommodate your specific labware needs, besides Acoustic Sample Tube – Echo Qualified Consumable
  • Talk to us today: contact an expert, or drop a comment when you request a quote or a demo to let us know what tubes you’re using: we’re happy to come up with a solution cut out to fit your unique application needs
Ordering Information

Part Numbers

Use these part numbers to request a quote, a demo, or to contact an expert:

IntelliXcap Automated Screw Cap Decapper/Recapper Acoustic 96-format
46-8014Includes base unit, IntelliXcheck module and 1 x 48-8013-04 (Acoustic cartridge)
Stages
46-8112IntelliXcap Extended Stage for Automation
Please ask us about compatibility with your device
